SPACE FX

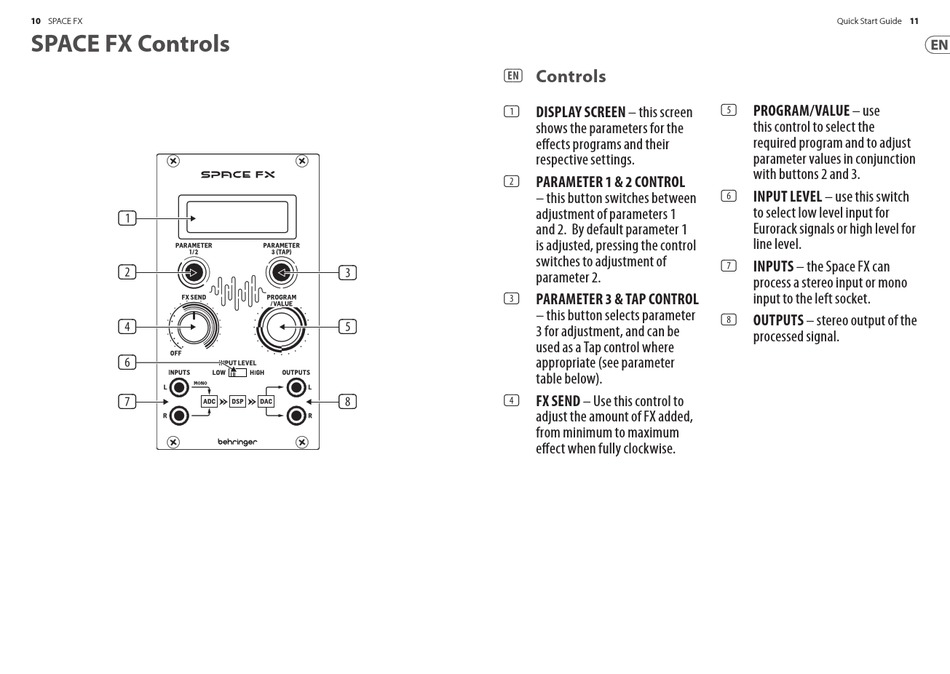

SPACE FX Controls
(1)
(2)
(4)
(6)
(7)
(EN) Controls
(1)
(2)
(3)
(3)
(5)
(8) (4)
DISPLAY SCREEN – this screen
shows the parameters for the
effects programs and their
respective settings.
PARAMETER 1 & 2 CONTROL
– this button switches between
adjustment of parameters 1
and 2. By default parameter 1
is adjusted, pressing the control
switches to adjustment of
parameter 2.
PARAMETER 3 & TAP CONTROL
– this button selects parameter
3 for adjustment, and can be
used as a Tap control where
appropriate (see parameter
table below).
FX SEND – Use this control to
adjust the amount of FX added,
from minimum to maximum
effect when fully clockwise.
Quick Start Guide
PROGRAM/VALUE – use
(5)
this control to select the
required program and to adjust
parameter values in conjunction
with buttons 2 and 3.
INPUT LEVEL – use this switch
(6)
to select low level input for
Eurorack signals or high level for
line level.
INPUTS – the Space FX can
(7)
process a stereo input or mono
input to the left socket.
OUTPUTS – stereo output of the
(8)
processed signal.
