ATS626 16-Output Expander Installation Sheet
EN CS DA DE ES FI
CON12
T2
T1
~ ~ + -
AC BATT
EN: Installation Sheet
Description
ATS626 16-Output Expander provides additional 16 outputs
inside an Advisor Advanced control panel.

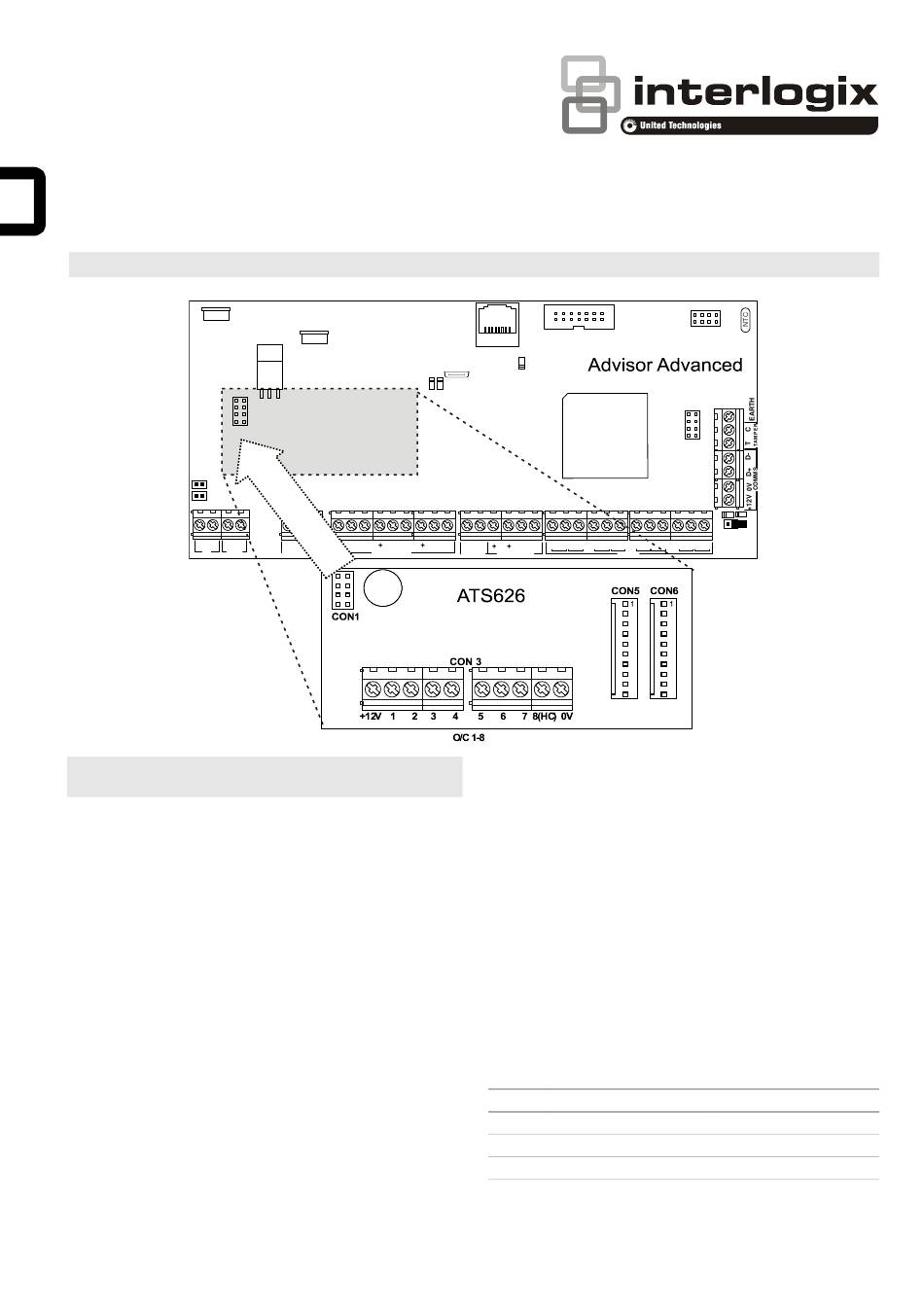

Mounting the unit
The ATS626 unit must be fitted to the main control panel using
provided self-locking pillars.
Connections
CON1: Connection to the plug-in connector provided by the
ATS control panel, for example, ATS1000A.
CON3: This connection provides seven 50 mA open collector
outputs (number 1 to 7), and one high current 1 A open
collector output (number 8) with internal pull up. These outputs
are presented on a screw terminal together with +12 V
0 V (GND) terminals.
© 2014 UTC Fire & Security Americas Corporation, Inc.
FR HU IT NL NO PL PT SK SV TR
S4 S5
S1 C S2 C
LC-OUTPUTS HC-OUTPUTS
1
MI
IP
USB
S3 C - - 1 C 2 3
T C
SIR TMP AUX POWER
10
Typically, the high current output can be used as an extra siren
output or a similar output device with a temporarily power
requirement.
Notes
•
Maximum cable length for open collector output
connection may not exceed 30 m. For longer distances,
use relay output expansion (for example, ATS624 four-
relay expander).
•
Include the current drawn from the ATS626 high current
output when calculating battery backup capacity for the
whole system.
CON5: Eight 50 mA open collector outputs (number 9 to 16).
This terminal can also be used to connect 2X ATS1810.
CON6: Not used.
Table 1: Output wiring — on direct open collector outputs
No. CON3
1. +12 Volts
and
2. Output 1
3. Output 2
4. Output 3
1 / 16
CON16
CON13
Tx Rx
C 4 5 C 6 7 C 8
INPUTS
CON5
+12 Volts
Output 9
Output 10
Output 11
P/N 1070563 (ML) • REV D • ISS 06NOV14
