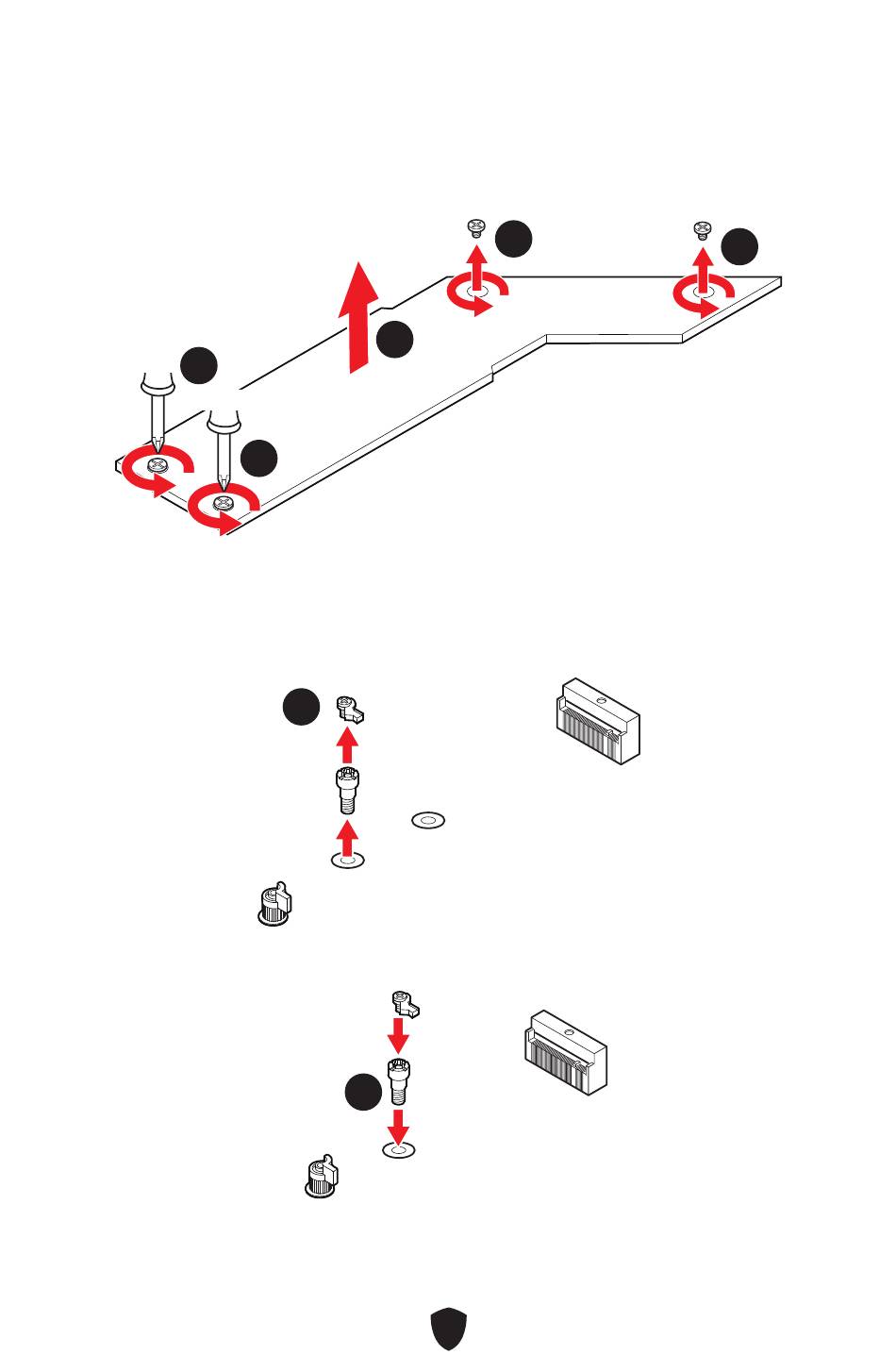

Installing M.2 module into M2_3 & M2_4 slots
1. Loosen the screws of M.2 Shield Frozr heatsink.
2. Lift up the M.2 Shield Frozr heatsink and remove it.
1 1
1 1
3. Remove or Install the EZ M.2 Clip kit according to your SSD length. Skip this step if
you install 2280 SSD.
∙ M2_3 slot
∙ M2_4 slot
2 2
3 3
22110
3 3
2260
