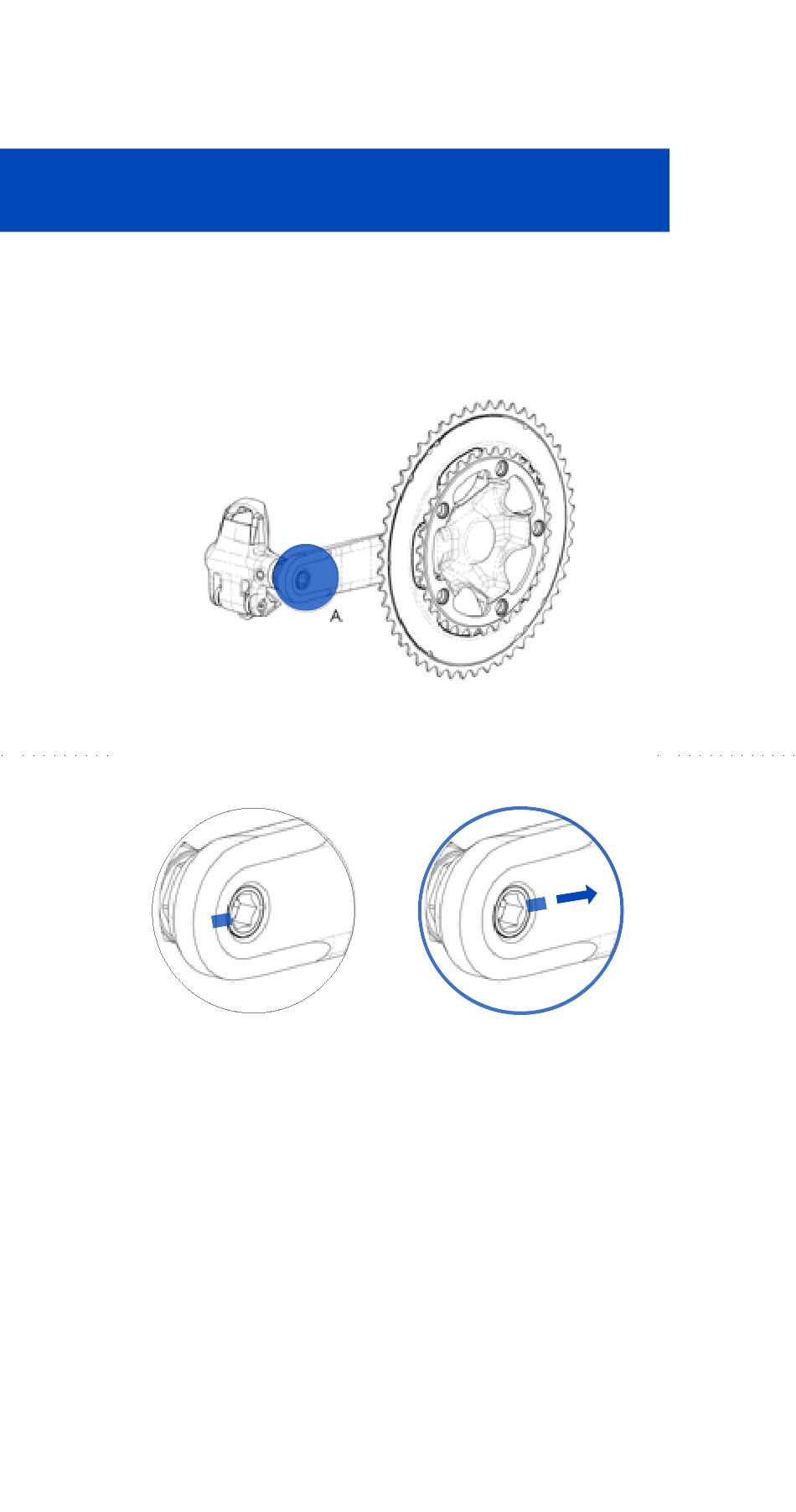

INSTALLING PEDALS
NOT OK
OK
STEP 4
FR. Dévissez légèrement la pédale pour orienter
la rainure bleue en direction du boitier de pédalier
EN. Unscrew the pedal to position the blue groove
toward the bottom bracket
DE. Drehen Sie mit dem Inbus das Pedal so, dass
die blaue Markierung am Pedal zum Innenlager zeigt.
IT. Svita leggermente il pedale per allineare il
marcatore nella direzione del movimento centrale
12
