Connectors

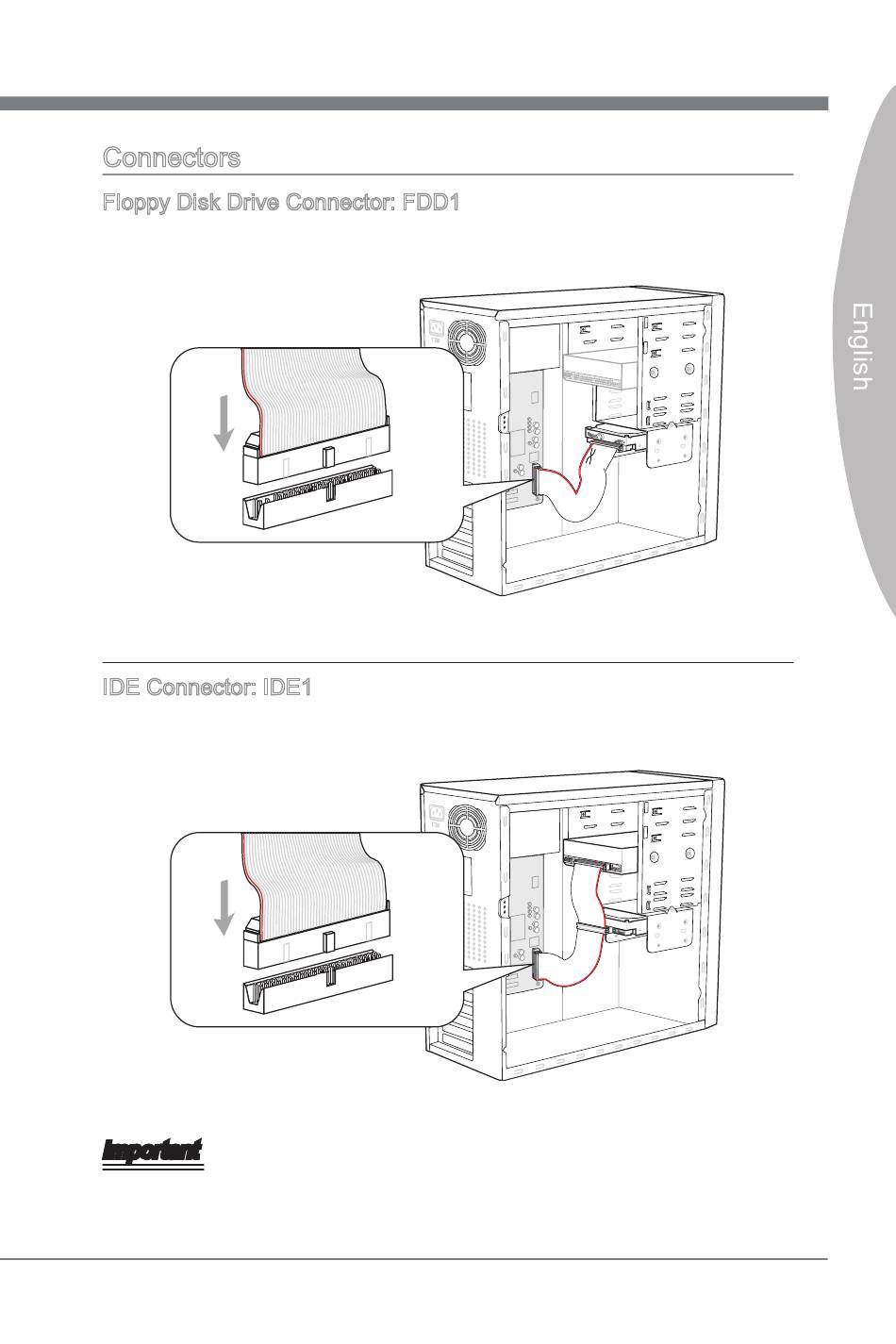

Floppy Disk Drive Connector: FDD1
This connector supports 360 KB, 720 KB, 1.2 MB, 1.44 MB or 2.88 MB floppy disk
drive.
IDE Connector: IDE1
This connector supports IDE hard disk drives, optical disk drives and other IDE de-
vices.
Important
If you install two IDE devices on the same cable, you must configure the drives sepa-
rately to master / slave mode by setting jumpers. Refer to IDE device's documentation
supplied by the vendors for jumper setting instructions.
* The MB layout in this figure is for reference only.
* The MB layout in this figure is for reference only.
En-13
