Audio System R 195.2 Bedienungsanleitung Seite 6

R+M
r m
105. 4 / 80. 4
2-Kanal-Mono-Betrieb
+ BRIDGE -
CH1/L CH2/R
4-Kanal Stereo-Betrieb
+ BRIDGE -
CH1/L CH2/R
Stereo + Mono-Betrieb
+ BRIDGE -
CH1/L CH2/R

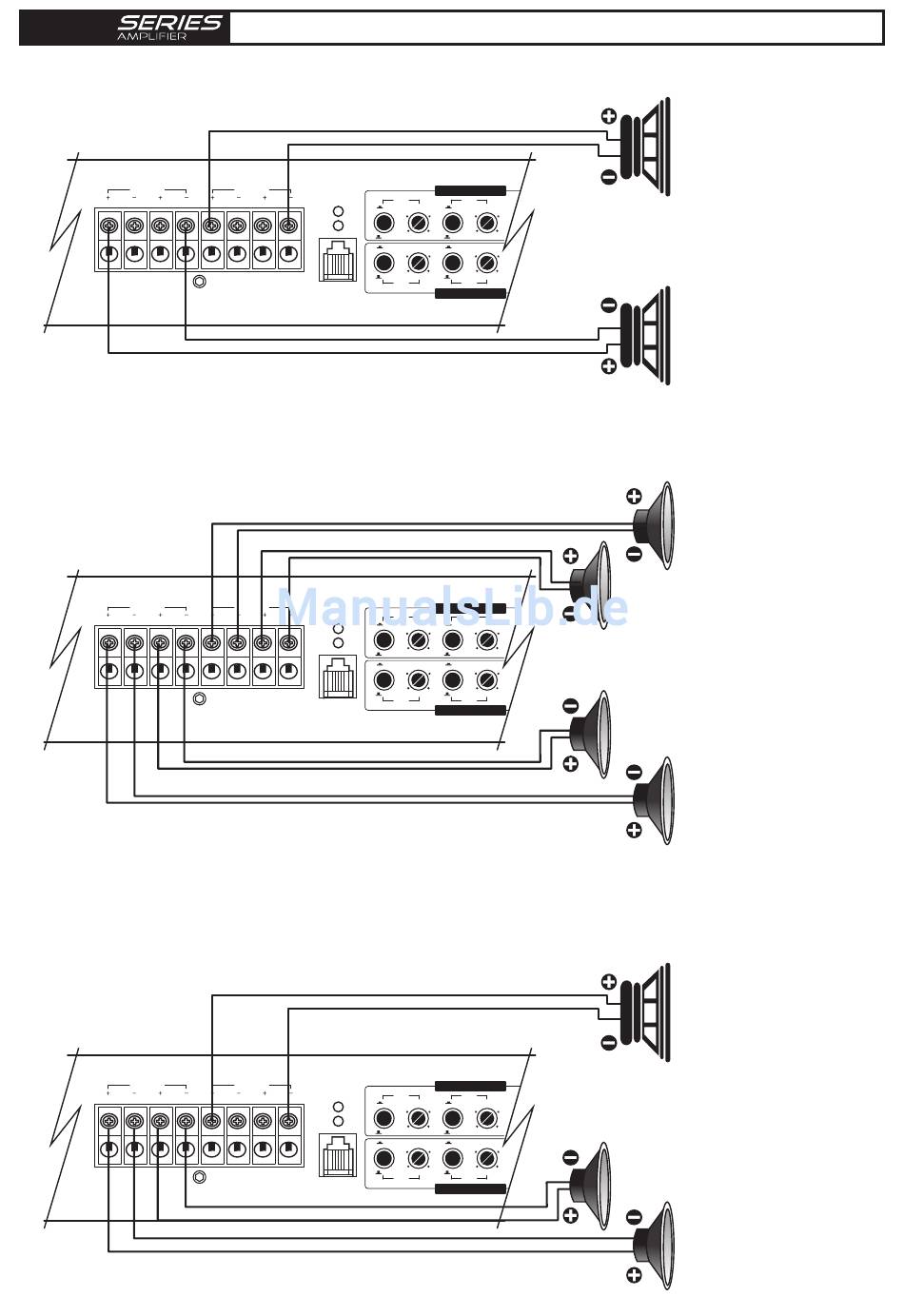

Lautsprecheranschlüsse
+ BRIDGE -
CH3/L CH4/R
ON
Power
Protection
OFF
ON
OFF
REMOTE
+ BRIDGE -
CH3/L CH4/R
ON
Power
Protection
OFF
ON
OFF
REMOTE
+ BRIDGE -
CH3/L CH4/R
ON
Power
Protection
OFF
ON
OFF
REMOTE
Channel 1 / 2
LPF HPF
HERTZ ON HERTZ
120
90 225 40
50 300 OFF 25 175
HERTZ ON HERTZ
120
90 225 40
50 300 OFF 25 175
LPF HPF
Channel 3 / 4
Channel 1 / 2
LPF HPF
HERTZ ON HERTZ
120
90 225 40
50 300 OFF 25 175
HERTZ ON HERTZ
120
90 225 40
50 300 OFF 25 175
LPF HPF
Channel 3 / 4
Channel 1 / 2
LPF HPF
HERTZ ON HERTZ
120
90 225 40
50 300 25 175
OFF
HERTZ ON HERTZ
120
90 225 40
50 300 OFF 25 175
LPF HPF
Channel 3 / 4
-6-
CH3/4-MONO
SUBWOOFER
Lautsprecher-
impedanz
4 ~ 8 ohm
CH1/2-MONO
SUBWOOFER
CH4
CH3
Lautsprecher-
impedanz
2 ~ 8 ohm
CH1
CH2
CH3/4-MONO
SUBWOOFER
Lautsprecher-
impedanz
4 ~ 8 ohm
CH1
CH2
