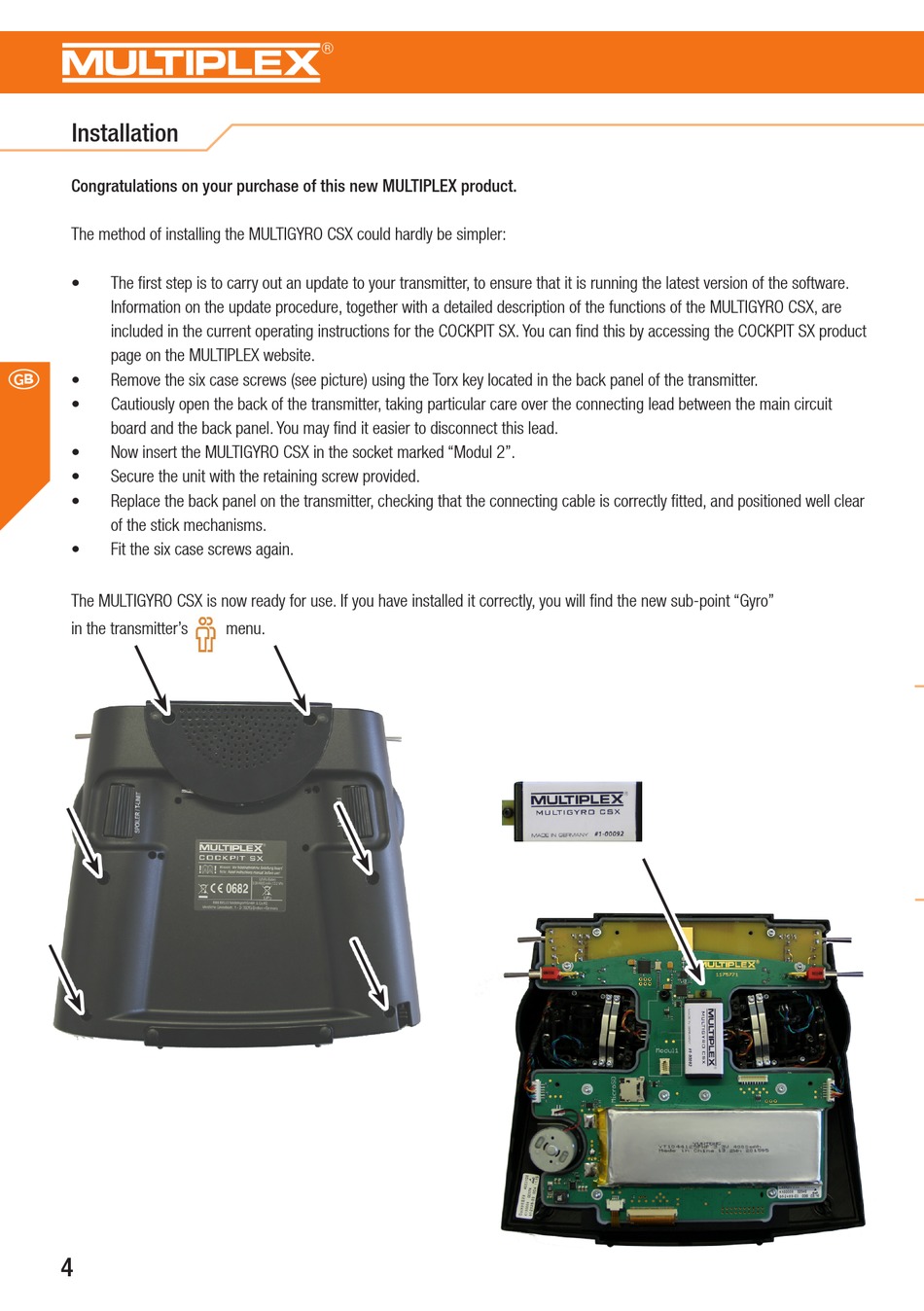

Installation
Congratulations on your purchase of this new MULTIPLEX product.
The method of installing the MULTIGYRO CSX could hardly be simpler:
•
The first step is to carry out an update to your transmitter, to ensure that it is running the latest version of the software.
Information on the update procedure, together with a detailed description of the functions of the MULTIGYRO CSX, are
included in the current operating instructions for the COCKPIT SX. You can find this by accessing the COCKPIT SX product
page on the MULTIPLEX website.
G
•
Remove the six case screws (see picture) using the Torx key located in the back panel of the transmitter.
•
Cautiously open the back of the transmitter, taking particular care over the connecting lead between the main circuit
board and the back panel. You may find it easier to disconnect this lead.
•
Now insert the MULTIGYRO CSX in the socket marked "Modul 2".
•
Secure the unit with the retaining screw provided.
•
Replace the back panel on the transmitter, checking that the connecting cable is correctly fitted, and positioned well clear
of the stick mechanisms.
•
Fit the six case screws again.
The MULTIGYRO CSX is now ready for use. If you have installed it correctly, you will find the new sub-point "Gyro"
in the transmitter's
4
menu.
