Docrooup DS2 Bedienungsanleitung Seite 5

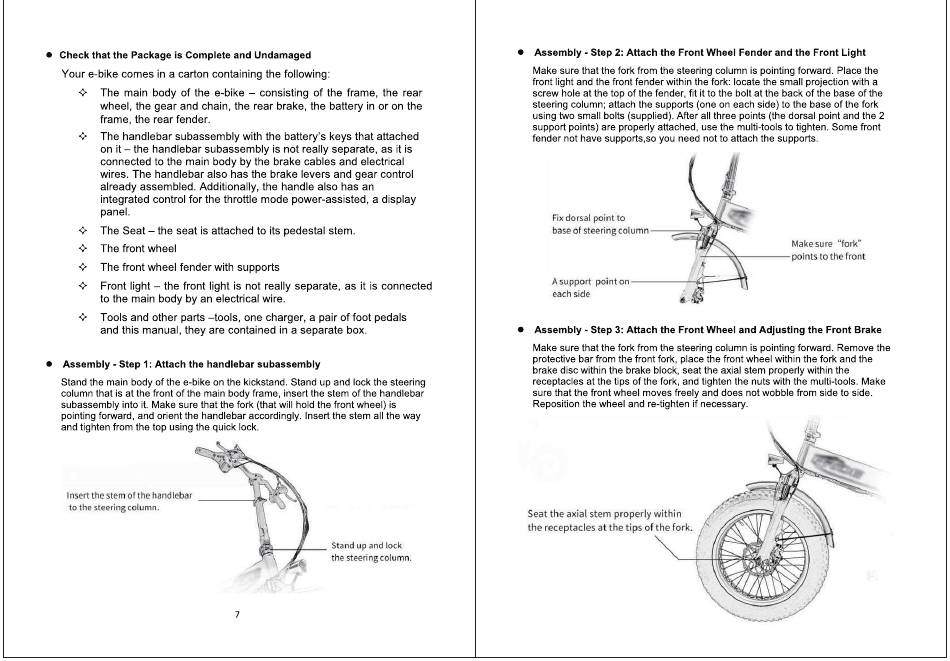

Check that the Package is Complete
Your e-bike comes in a carton containing the following:
The main body of the e-bike — consisting of the frame, the rear
wheel, the gear and chain, the rear brake, the battery in or on the
frame, the rear fender.
The handlebar subassembly
on it —the handlebar subassembly
connected to the main body by the brake cables and electrical
wires. The handlebar also has the brake levers and gear control
already assembled. Additionally,
integrated control for the throttle mode power-assisted,
panel
The Seat —the seat is attached to its pedestal stem
The front wheel
The front wheel fender with supports
Front light —the front light is not really separate, as it is connected
to the main body by an electrical wire
Tools and other parts —tools, one charger, a pair of foot pedals
and this manual, they are contained in a separate box.
Assembly - Step 1: Attach the handlebar
Stand the main body of the e-bike on the kickstand Stand up and lock the steering
column that is at the front of the main body frame, insert the stem of the handlebar
subassembly into it. Make sure that the fork (that will hold the front wheel) is
pointing forward, and orient the handlebar accordingly. Insert the stem all the way
and tighten from the top using the quick lock.
Insert the stem of the handlebar
to the steering column.
7
7
and Undamaged
with the battery's keys that attached
is not really separate, as it is
the handle also has an
a display
subassembly
Stand up and lock
the steering column.
7
Assembly - Step 2: Attach the Front Wheel Fender and the Front Light
Make sure that the fork from the steering column is pointing forward. Place the
front light and the front fender within the fork: locate the small projection with a
screw hole at the top of the fender, fit it to the bolt at the back of the base of the
steering column; attach the supports (one on each side) to the base of the fork
using two small bolts (supplied). After all three points (the dorsal point and the 2
support points) are properly attached, use the multi-tools to tighten. Some front
fender not have supports,so you need not to attach the supports.
Fix dorsal point to
base of steering column
A support point on
each side
Assembly • Step 3: Attach the Front Wheel and Adjusting
Make sure that the fork from the steering column is pointing forward. Remove the
protective bar from the front fork, place the front wheel within the fork and the
brake disc within the brake block, seat the axial stem properly within the
receptacles at the tips of the fork, and tighten the nuts with the multi-tools. Make
sure that the front wheel moves freely and does not wobble from side to side
Reposition the wheel and re-tighten if necessary
Seat the axial stem properly within
the receptacles at the tips of the fork.
Make sure "fork"
points to the front
the Front Brake
8
8
