Archos Logic Instrument FIELDBOOK Schnellstartanleitung Seite 7

23 Rear Camera
24 Optional Interface
25 NFC
26 Fingerprint
Scanner
27 SSD Cover
28 Cooling Fan

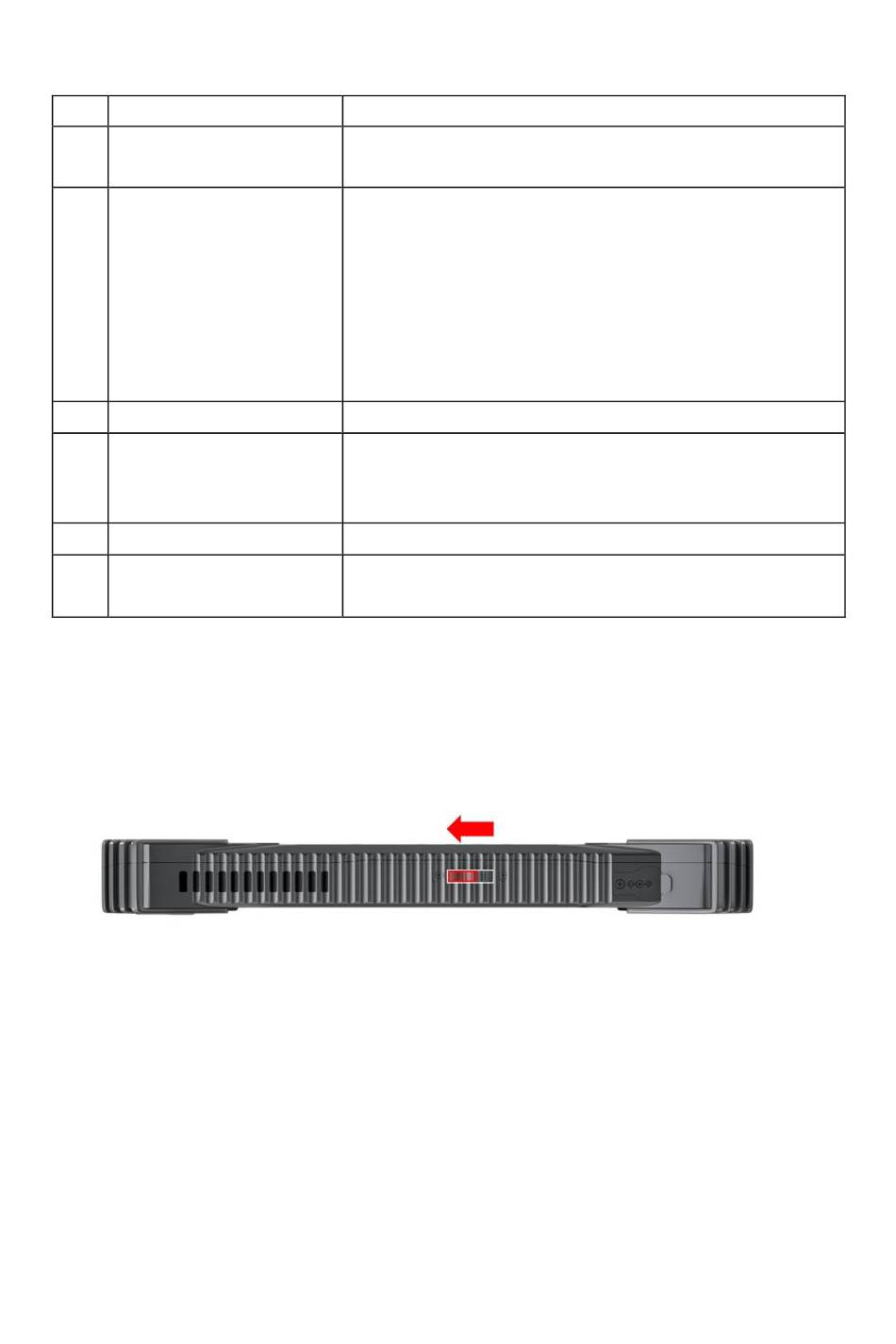

III. Accessing the connectors and slots
Slide the connectors door to the open position
You'll then be able to open the door and access the different
connectors and slots
WARNING: The tablet is water and dust proof only when the
connectors door is closed. Make sure the door is closed and
the latch is in the closed position before using in a dusty
environment or exposing it to splashes.
7
external power is not connected
Allows you to use the rear camera
function
Select one of the below options:
✓ RJ45 10/100 LAN interface (*)
✓ USB2.0 Type A connector
✓ RS232 Serial interface
✓ 1D/2D Barcode Scanner
(*) Default option
Near Field Communication interface
Serves as the fingerprint verification,
preventing unauthorized access to your
computer
For maintenance service only
Used to cool down the system
Do never block the cooling fan opening
