3.2 Mounting with rotating bracket
3.2.1 Mounting the support on a rotating bracket

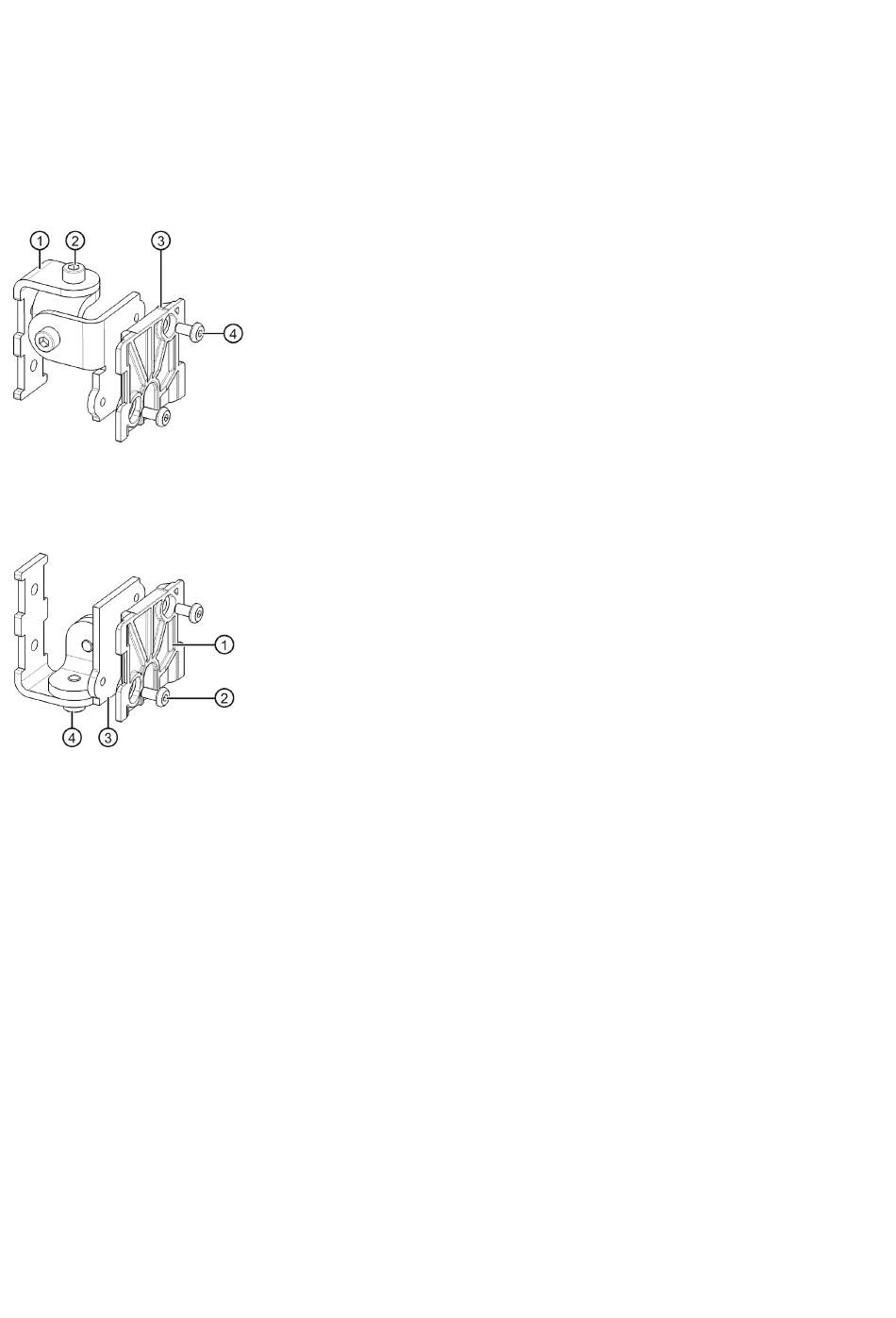

Mounting variants
The following mounting variants of the rotating bracket are possible:
Variant 1:
① Rotating bracket
② Setting screw (2)
Variant 2:
① Support
② Securing screw (2)
Procedure
Mount the support on the rotating bracket with two securing screws according to one of the variants shown above.
18
③ Support
④ Securing screw (2)
③ Rotating bracket
④ Setting screw (2)
Antenna ANT793-8DP
C79000-G8974-C320-05, 08/2023
