HIKVISION DS-KH9510-WTE1 Kurzanleitung

DS-KH9510-WTE1(B)
Network Indoor Sta�on UD27304B-A
ENGLISH

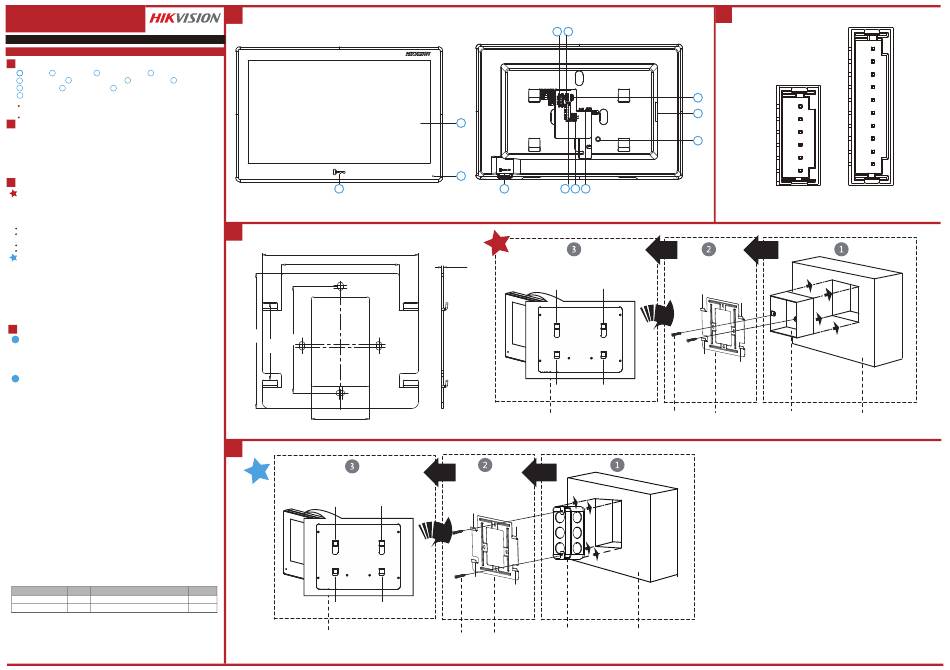

Diagram References
1 Appearance
1 Screen 2 Microphone 3 Unlock Button 4 RS-485/Relay Interface
TAMPER
5 Debugging Port 6 microUSB Interface 7 Loudspeaker 8
9 TF Card Slot 10 Alarm Terminals 10 Power Supply Interface
12 Network Interface
Note:
The appearance of the device varies according to different models. Refers to the actual device for
detailed informa�on.
The debugging port is used for debugging only.
2
Terminal and Wiring
AIN1: Alarm Input 1 AIN5: Alarm Input 5
AIN2: Alarm Input 2 AIN6: Alarm Input 6
AIN3: Alarm Input 3 AIN7: Alarm Input 7
AIN4: Alarm Input 4 AIN8: Alarm Input 8
NO1: Normally Open GND: Grounding
AO1: Alarm Output
NC: Normally Closed
RS485-/RS485+: RS-485 Communication Interface
COM1: Common Interface
3 Installation
Mounting Accessories
The wall mounting plate and the gang box are required to install the indoor station onto the wall.
There are 2 sizes of the gang boxes adapted to the device.
Size 1: 75 mm (width) × 75 mm (length) × 46 mm (depth).
Size 2: 55 mm (width) × 101 mm (length) × 38.5 mm (depth).
Before you begin:
Make sure the device in the package is in good condition and all the assembly parts are included.
The power supply of the indoor station is 12 VDC. Make sure your power supply matches your indoor
station.
Make sure all related equipments are power-off during the installation.
Check the product specification for the installation environment.
Wall Mounting with Gang Box
1. Cave a hole in the wall.
Note: The suggested dimension of the installation hole should be larger than the gang box.
2. Insert a gang box to the hole chiseled on the wall.
3. Fix the wall mounting plate to the gang box with 2 screws.
Notes:
If you install the device with a gang box (75 mm (width) × 75 mm (length) × 46 mm (depth)), the upper and lower
holeswill be applies.
If you install the device with a gang box (55 mm (width) × 101 mm (length) × 38.5 mm (depth)), the upper and lower
holes will be applies.
4. Hook the indoor station to the wall mounting plate tightly by inserting the plate hooks into the slots on
the rear panel of the indoor station, during which the lock catch will be locked automatically.
4 Getting Started
Activate Indoor Station
1
You are required to activate the device first by setting a strong password before
you can use the device.
1. Power on the device. It will enter the activation page automatically.
2. Create a password and confirm it.
3. Tap OK to activate the indoor station.
Quick Configuration
2
1. Choose Language and tap NEXT.
2. Set password reset method and tap NEXT.
- Enter the Reserved Email address, then you can reset the password by email.
Note: On the security questions settings page, you can tap Change to Reserved Email to modify the
password reset method.
- Tap Change to Security Question. Select 3 security questions from Deficiency List and
enter the answers of the questions, then you can reset the password by answering
security questions.
3. Set gesture password and confirm it.
4. Set network parameters and tap NEXT.
a. When you select connection type as Wired, you can edit network parameters
manually or automatically.
- Edit Local IP, Subnet Mask and Gateway parameters.
- Enable DHCP, the device will get network parameters automatically.
b. When you select connection type as Wireless, Select an Wi-Fi from the drop list to
connect.
5. Configure the indoor station and tap NEXT.
a. Select Indoor Station Type.
b. Edit Floor No. and Room No.
c. Enable Custom SIP Registration Password function and set the Registration
Password.
d. (Optional) Enable Link Indoor Extension and select device to link.
e. (Optional) Tap Advanced Options to edit Community No., Building No. and Unit No.
6. Slide to enable the mobile client service and set the LBS Server. Tap NEXT.
7. Linked related devices and tap NEXT. If the device and the indoor station are in the
same LAN, the device will be displayed in the list. Tap the device or enter the serial No.
to link.
a. Tap the door station in the list to link.
b. Tap the settings icon to pop up the Network Settings page.
c. Edit the network parameters of the door station manually or enable DHCP to get
the network parameters automatically.
d. Tap OK to save the settings.
8. Tap Finish to save the settings.
The power supply must conform to LPS. The recommended adaptor models and manufacturers are shown
as below. Use the attached adapter, and do not change the adaptor randomly.
Model Current Manufacturer
MSA-C1500IC12.0 -18P -US 1.5 A MOSO POWER SUPPLY TECHNOLOGY CO.,LTD
TS-A018-120015AD 1.5 A SHENZHEN TRANSIN TECHNOLOGIES CO.,LTD
1 1
3
3
122
92
105.5
83.5
60.5
45.8
3
Lock Catch Lock Catch
Standard
PG
Lock Catch Lock Catch
PG
Rear Panel (without Interface)
Note: If you use the gang box (75 mm (width) × 75 mm (length) × 46 mm (depth)) to install, you should set the screws to up and down screw holes.
4 5
1
2
9
10 11 12
1.5
Lock Catch Lock Catch
Lock Catch Lock Catch
Rear Panel (without Interface)
Unit:mm
Note: If you use the gang box (55 mm (width) × 101 mm (length) × 38.5 mm (depth)) to install, you should set the screws to left and right screw holes.
Hook
Hook
Hook
Hook
Screw Wall Mounting Plate Gang Box
2
6
RS485-
7
RS485+
NO1
8
COM1
AO1
GND
RS-485/Relay Interface
Hook
Hook
Hook
Hook
Screw Wall Mounting Plate Gang Box
Wall
AIN8
AIN7
AIN6
AIN5
AIN4
AIN3
AIN2
AIN1
GND
NC
Alarm Terminals
Wall
