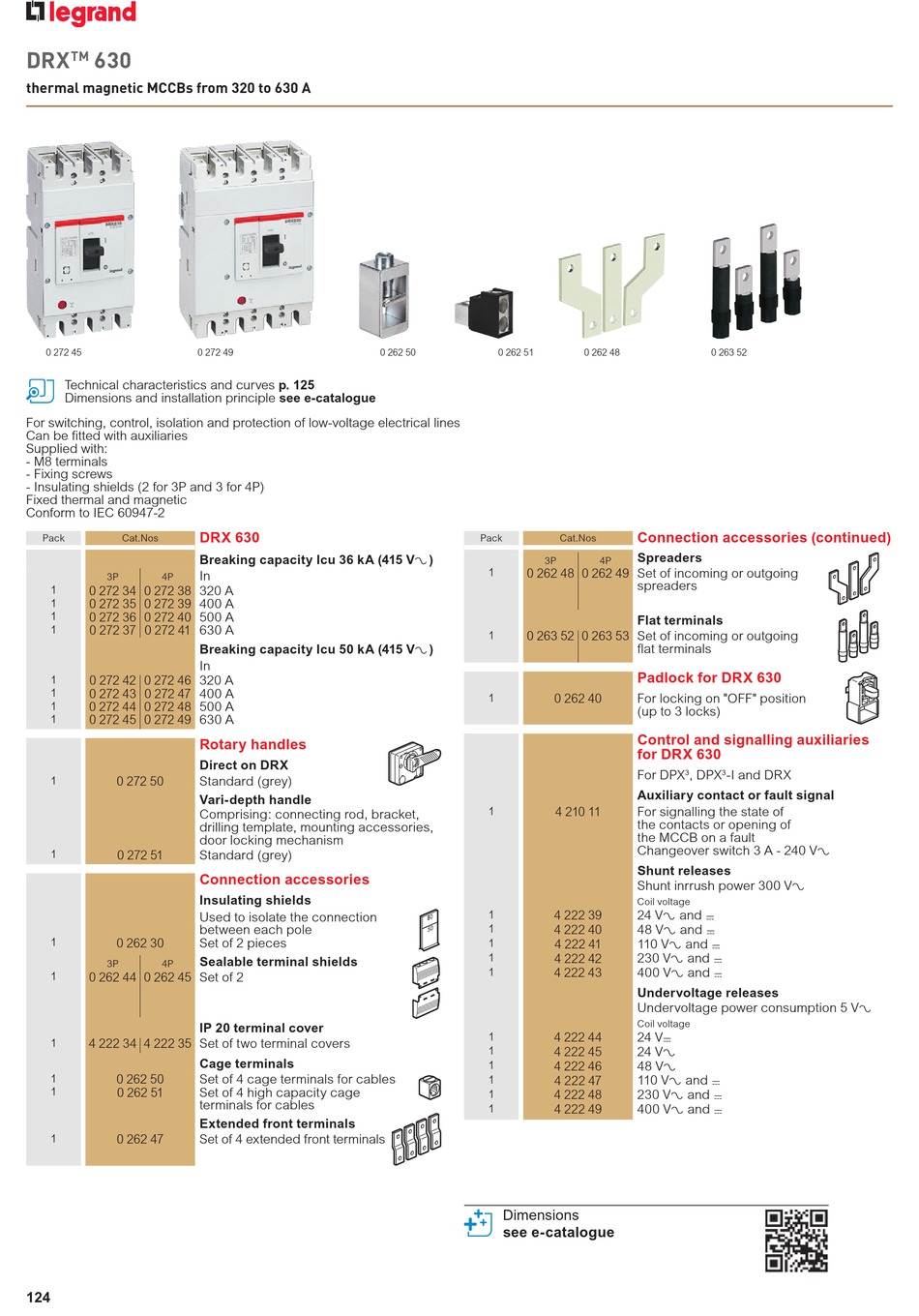

DRX 630
TM
thermal magnetic MCCBs from 320 to 630 A
0 272 45 0 272 49
Technical characteristics and curves p. 125
Dimensions and installation principle see e-catalogue
For switching, control, isolation and protection of low-voltage electrical lines
Can be fitted with auxiliaries
Supplied with:
- M8 terminals
- Fixing screws
- Insulating shields (2 for 3P and 3 for 4P)
Fixed thermal and magnetic
Conform to IEC 60947-2
DRX 630
Pack Cat.Nos
Breaking capacity Icu 36 kA (415 V± )
In
3P 4P
0 272 34 0 272 38 320 A
1
1 0 272 35 0 272 39 400 A
1 0 272 36 0 272 40 500 A
1 0 272 37 0 272 41 630 A
Breaking capacity Icu 50 kA (415 V± )
In
1 0 272 42 0 272 46 320 A
1 0 272 43 0 272 47 400 A
1 0 272 44 0 272 48 500 A
1 0 272 45 0 272 49 630 A
Rotary handles
Direct on DRX
1 0 272 50 Standard (grey)
Vari-depth handle
Comprising: connecting rod, bracket,
drilling template, mounting accessories,
door locking mechanism
0 272 51 Standard (grey)
1
Connection accessories
Insulating shields
Used to isolate the connection
between each pole
1 0 262 30 Set of 2 pieces
Sealable terminal shields
3P 4P
0 262 44 0 262 45 Set of 2
1
IP 20 terminal cover
1 4 222 34 4 222 35 Set of two terminal covers
Cage terminals
1 0 262 50 Set of 4 cage terminals for cables
0 262 51 Set of 4 high capacity cage
1
terminals for cables
Extended front terminals
1 0 262 47 Set of 4 extended front terminals
124
0 262 50 0 262 51
Pack
3P
1 0 262 48 0 262 49 Set of incoming or outgoing
1 0 263 52 0 263 53 Set of incoming or outgoing
1
1
1
1
1
1
1
1
1
1
1
1
1
Dimensions
see e-catalogue
0 262 48 0 263 52
Connection accessories (continued)
Cat.Nos
Spreaders
4P
spreaders
Flat terminals
flat terminals
Padlock for DRX 630
0 262 40 For locking on "OFF" position
(up to 3 locks)
Control and signalling auxiliaries
for DRX 630
For DPX , DPX -I and DRX
3 3
Auxiliary contact or fault signal
4 210 11 For signalling the state of
the contacts or opening of
the MCCB on a fault
Changeover switch 3 A - 240 VA
Shunt releases
Shunt inrrush power 300 VA
Coil voltage
24 V± and =
4 222 39
4 222 40 48 V± and =
110 V± and =
4 222 41
230 V± and =
4 222 42
400 V± and =
4 222 43
Undervoltage releases
Undervoltage power consumption 5 VA
Coil voltage
4 222 44 24 V=
4 222 45 24 V±
4 222 46 48 V±
110 V± and =
4 222 47
230 V± and =
4 222 48
400 V± and =
4 222 49
