TMC SCREEN Bedienungsanleitung Seite 17

P 8555 / A3

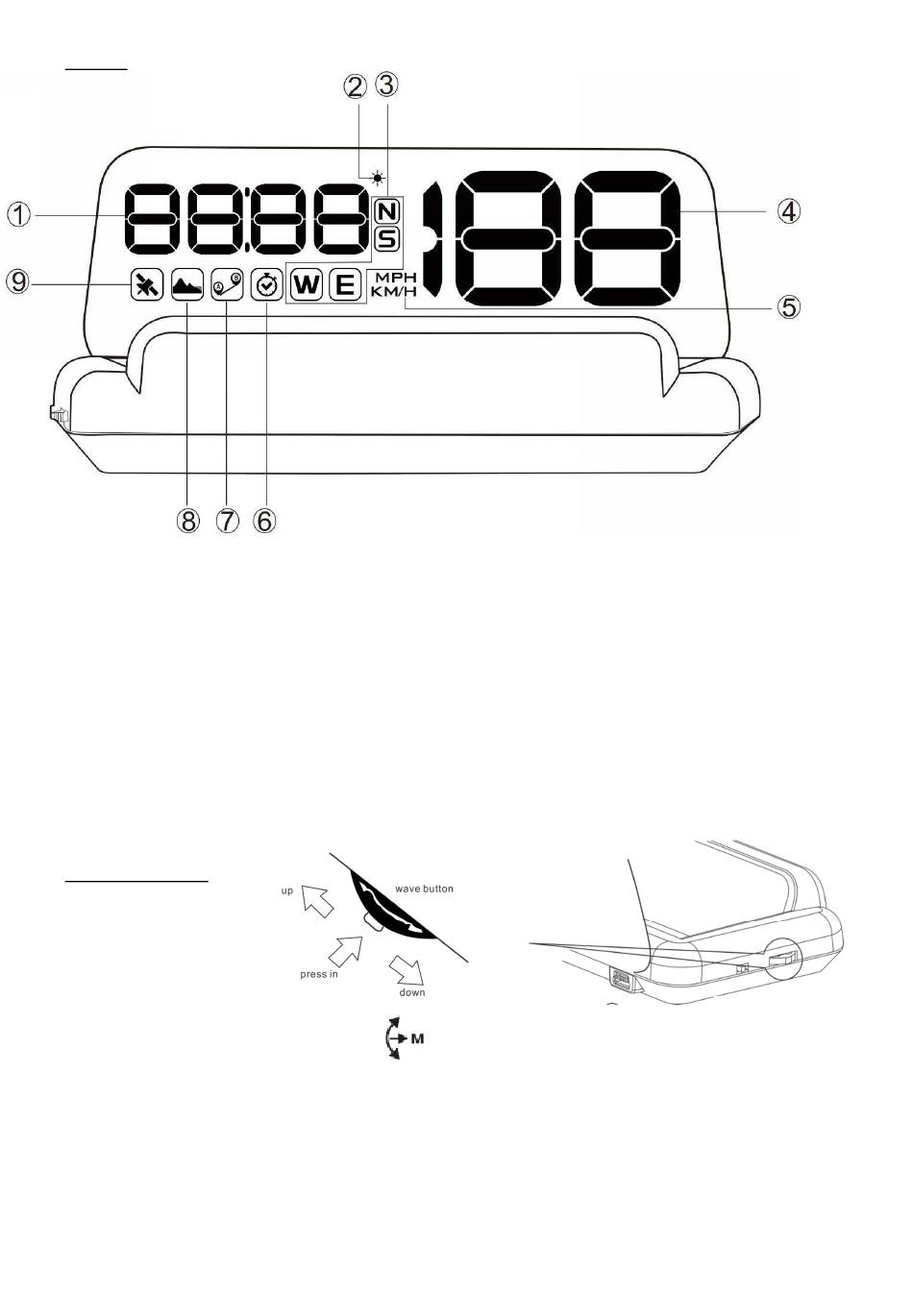

C. SCREEN:
1. Multi functions display:clock,battery
voltage,altitude,satellite
numbers,mileage,trip time
2. Light sensor:HUD can automatically adjust
the brightness according to the
environment
3. Driving direction:N-North,S-South,W-
West,E-East. It will display when the car is
in driving.
4. Speed:display the vehicle driving speed in
digital number
D. Host keys function:
1. USB cable port
2. Power switch
3.Setting button
Wave Button Function (When the dial on the left)
1. Vertical long Press 5 seconds: enter into setting menu, after finish adjustment, vertical long press 5 seconds to save and
exit.
2. Short pull up: Increasing parameter values after enter into the menu setting or switch display mode
3. Short pull down: Decreasing parameter values after enter into menu setting.
4. Vertical Short press: Switch the multi functions display(clock/battery voltage/trip time/altitude/satellite
numbers/mileage) or after entering into the menu setting mode,to add the menu option.
5. Long pull down: turn on or off the alarm sound.
5. Speed unit :KM/H=kilometer/hour,
MPH=Mile/hour
6. Clock and driving time icon
7. Mileage:display the single driving distance
for this trip
8. Altitude:current altitude
9. Satellite signal icon:it will flash for
searching signal,and will stop once
searching the satellite signal successfully.
①
②
③
