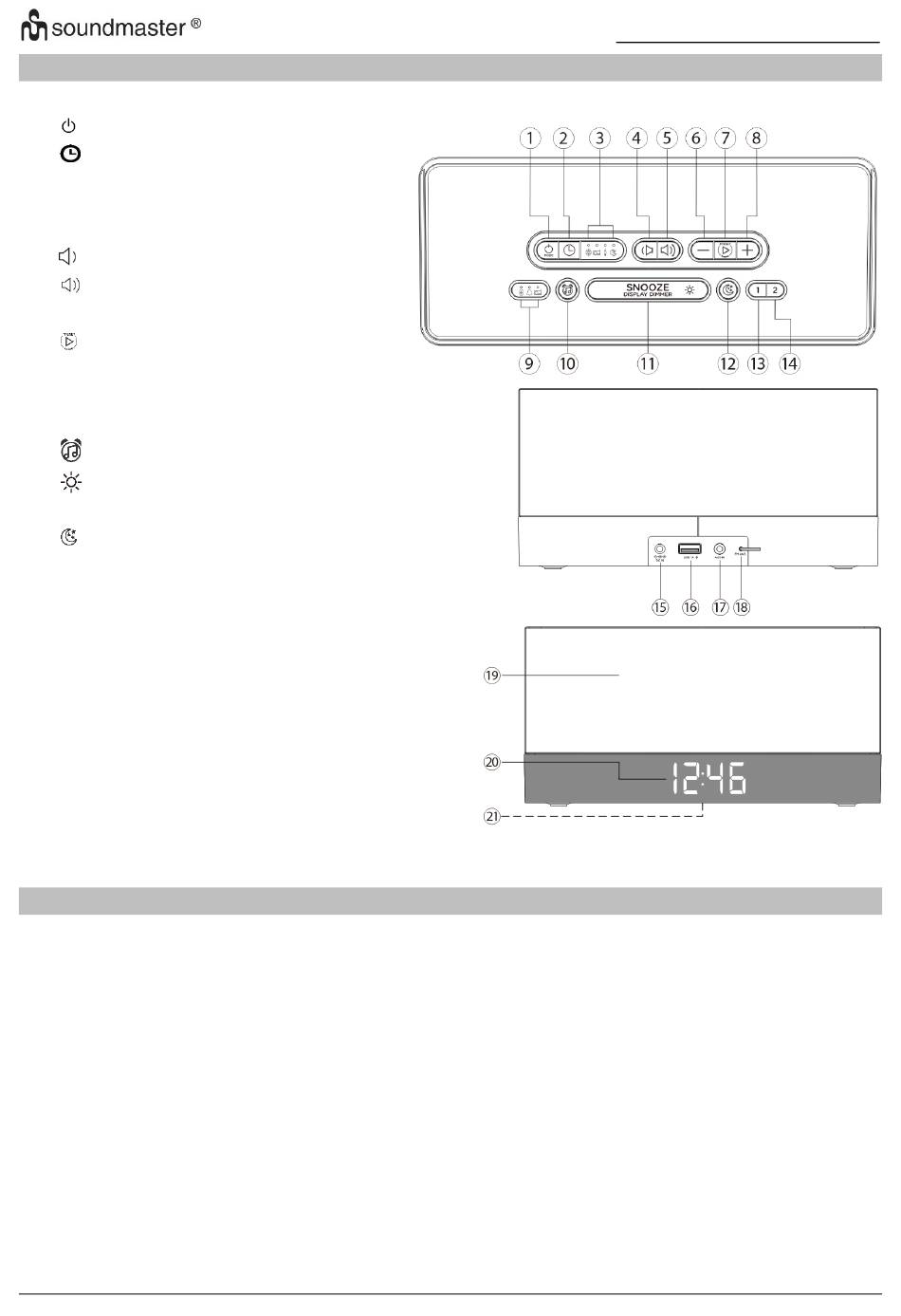

1 / MODE On/off & mode
2 Time set
3 BLUETOOTH (blue) / FM radio
(white) / AUX-IN (green) / sleep
(amber) LED indicator
4 Volume -
5 Volume +
6 - Tune/set -
7 Play / radio preset / OK / pairing
8 + Tune/set +
9 Alarm buzzer / alarm radio LED
(amber) Low battery LED (red)
10
Alarm
11
SNOOZE / DISPLAY DIMMER
Snooze / display dimmer
12 Sleep
13 1 - Preset 1
14 2 - Preset 2
15 DC IN jack
16 USB charging port
17 AUX-IN jack
18 FM Antenna wire
19 Speakers
20 LED Display
21 Battery compartment
(bottom of unit)
Use only the supplied AC/DC-adapter (AC In – 100-240V AC, 50/60Hz / DC Out – 5,0V 2.0A).
Do not connect the unit before checking the main voltage and before all other connections have
been made.
Insert the plug from the AC/DC-adapter to the DC jack of the main unit. Then connect the
AC/DC-adapter to an AC outlet.
When you connect the unit at first time the display will show "00:00" and start flashing.
To keep accurate time, this unit uses two "AAA batteries" (not included) for clock backup.
These batteries keep the clock operating in the event of a power interruption.

LOCATION OF CONTROLS

INSTALLATION
1
