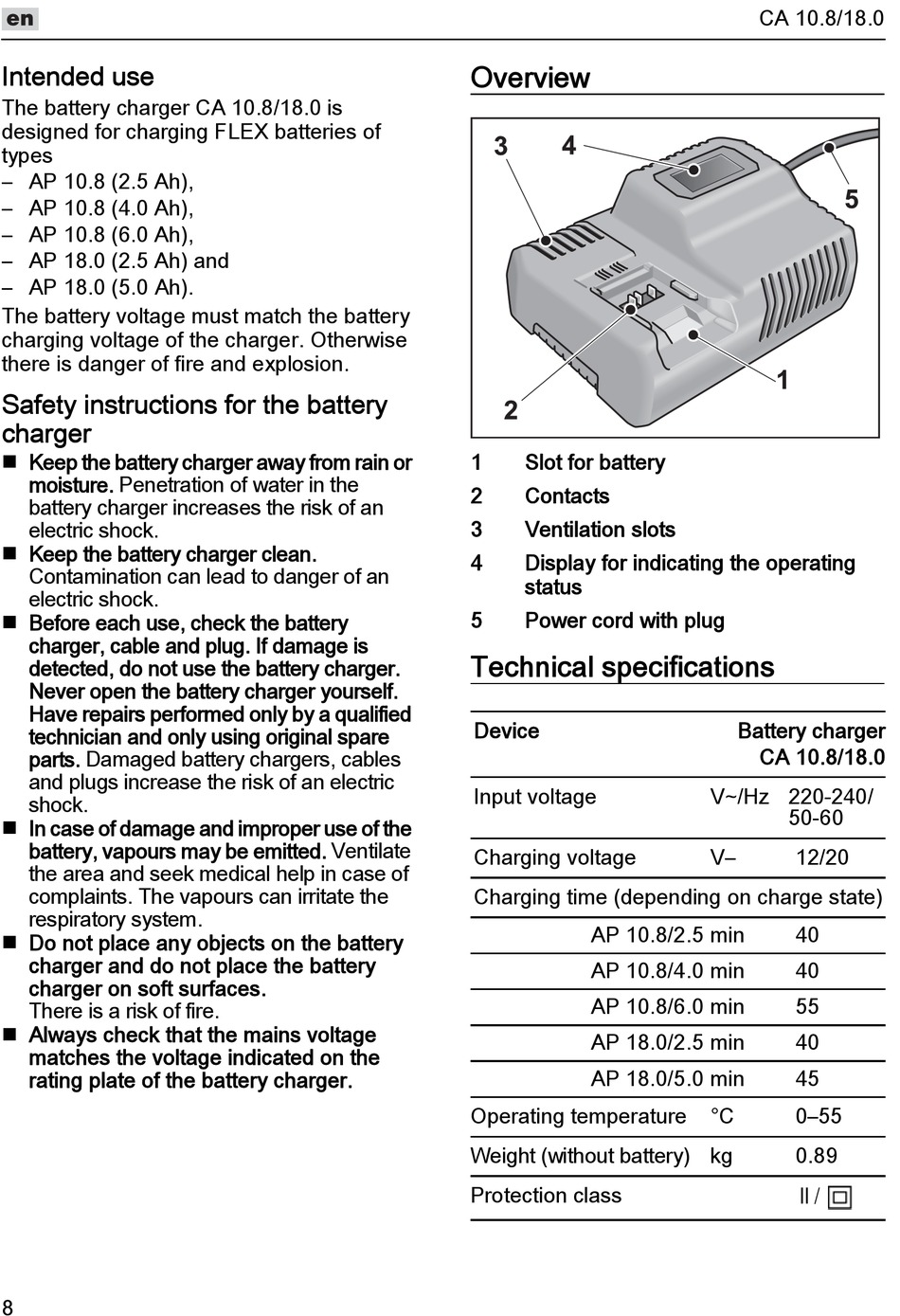

Intended use

The battery charger CA 10.8/18.0 is
designed for charging FLEX batteries of
types
– AP 10.8 (2.5 Ah),
– AP 10.8 (4.0 Ah),
– AP 10.8 (6.0 Ah),
– AP 18.0 (2.5 Ah) and
– AP 18.0 (5.0 Ah).
The battery voltage must match the battery
charging voltage of the charger. Otherwise
there is danger of fire and explosion.
Safety instructions for the battery
charger
 Keep the battery charger away from rain or
moisture. Penetration of water in the
battery charger increases the risk of an
electric shock.
 Keep the battery charger clean.
Contamination can lead to danger of an
electric shock.
 Before each use, check the battery
charger, cable and plug. If damage is
detected, do not use the battery charger.
Never open the battery charger yourself.
Have repairs performed only by a qualified
technician and only using original spare
parts. Damaged battery chargers, cables
and plugs increase the risk of an electric
shock.
 In case of damage and improper use of the
battery, vapours may be emitted. Ventilate
the area and seek medical help in case of
complaints. The vapours can irritate the
respiratory system.
 Do not place any objects on the battery
charger and do not place the battery
charger on soft surfaces.
There is a risk of fire.
 Always check that the mains voltage
matches the voltage indicated on the
rating plate of the battery charger.
8
Overview
1 Slot for battery
2 Contacts
3 Ventilation slots
4 Display for indicating the operating
status
5 Power cord with plug

Technical specifications

Device
Input voltage
Charging voltage
Charging time (depending on charge state)
AP 10.8/2.5 min
AP 10.8/4.0 min
AP 10.8/6.0 min
AP 18.0/2.5 min
AP 18.0/5.0 min
Operating temperature
Weight (without battery) kg
Protection class
CA 10.8/18.0
Battery charger
CA 10.8/18.0
V~/Hz 220-240/
50-60
V– 12/20
40
40
55
40
45
°C 0–55
0.89
II /
