Novar 010116 Montageanleitung Seite 3

Mounting and Connection Instructions
P00127-10-002-00
Seite 1 bis 4
Page 5 to 8
20.01.2004
Distributor module BUS-1
Item-No. 010116
1. General
The distributor module 010116 allows star-
shaped connection of a number of BUS-1
lines at one distribution point. It provides one
BUS -1 input and four outputs.
A differential detector group (terminating
resistance 12.1k1) with LED indicator is
integrated in the distributor module to pro-
vide an additional option. This LED-indicator
shows the detector state in relationship to
the state of the central unit.
The module's housing is monitored by
means of a cover contact with an immediate
link to a sabotage detector group.
Sales and delivery in accordance
with our terms of sales and delivery
6 Mounting and Connection Instructions Distributor module BUS-1

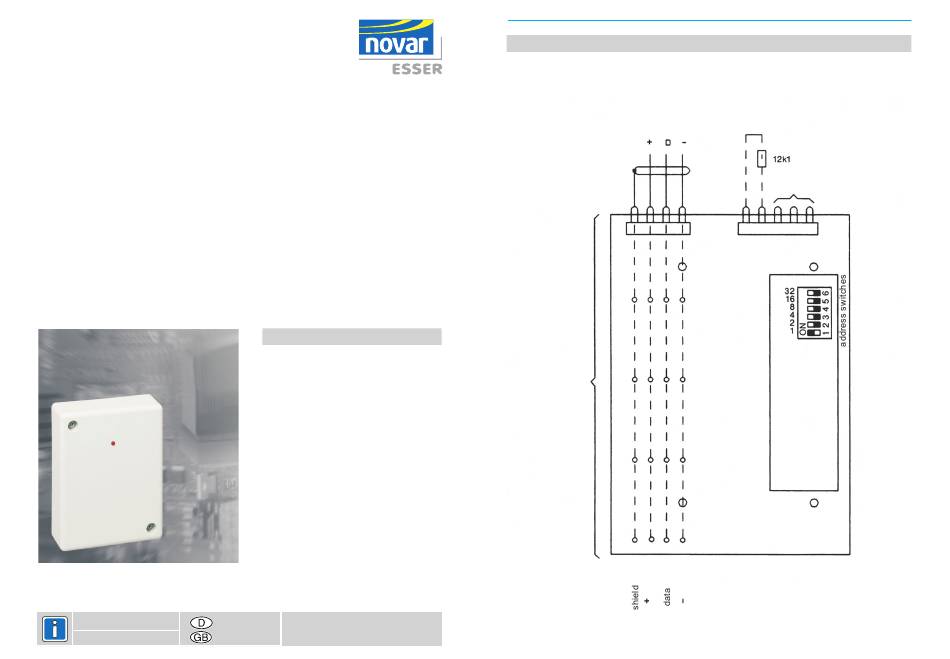

2. Connection diagram
BUS 1
shield
5 parallel
BUS-1
connections
(equivalent)
Detector group
terminating resistor
for free connection
(wiring)
