OPERATING INSTRUCTIONS

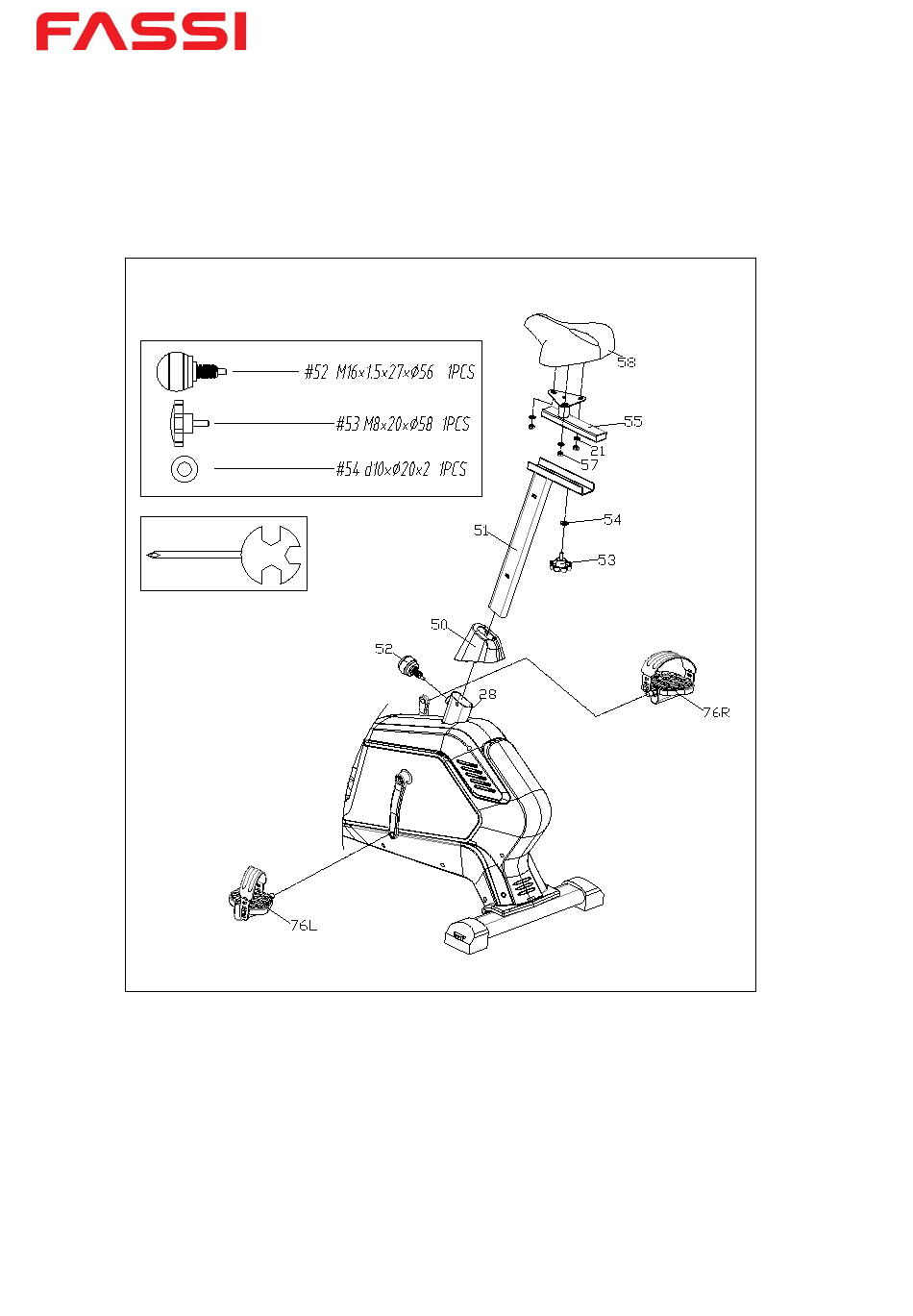

STEP 2:
Attach the saddle (58) to the saddle bracket (55) with the washer (21) and the nylon nut (57) and tighten the saddle.
Insert the vertical seat post (51) into the main frame (28) and align the holes. Secure the saddle in position with the
adjustment knob (52). The correct height of the seat can be adjusted after the unit is fully assembled.
Slide the saddle bracket (55) with the locking knob (53) and washer (54) into the vertical seat post (51).
Attach the pedal (76L/R) to the crank arms as shown in FIG.2.
