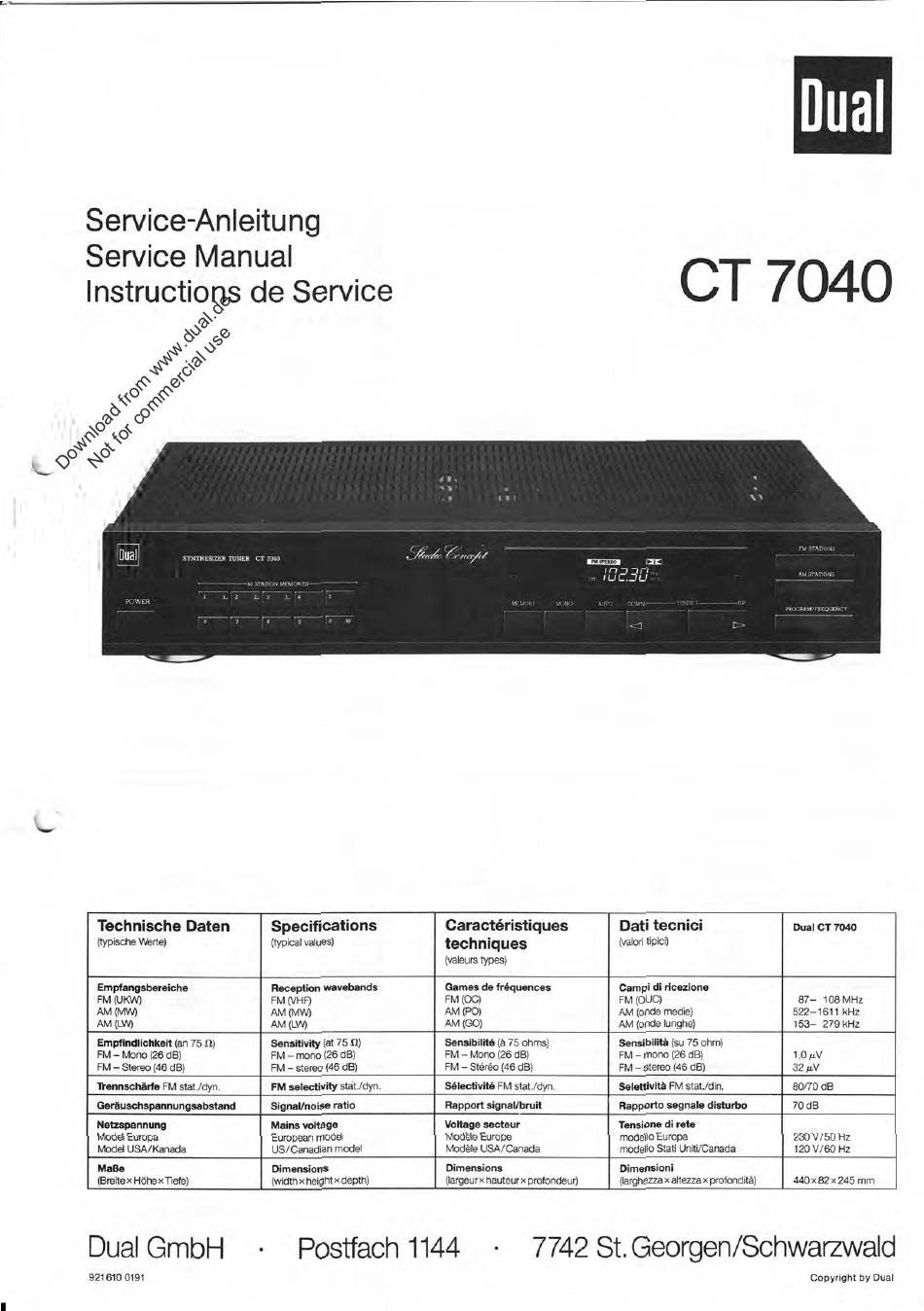

Dual Studio Concept CT 7040 Serviceanleitung

Service-Anleitung
Service Manual
lnstructions de Service
Dual
POWER
SYNTHESIZER TUNER CT 7040
40 STATION MENIOSIES
I- 2 L 3 3-
0 40
K,ey47
i t
WM, • MONO
UI
10230
Dual
CT 7040
rea
STATIONS
STAT1ONS
PR06RAM/FIE0111214CT
Technische Daten
(typische Werte)
Specifications
(typical values)
Caractöristiques
techniques
(valeurs types)
Dati tecnici
(valoh tipici)
Dual CT 7040
Empfangsbereiche
FM (UKW)
AM (MW)
AM (LW)
Reception wavebands
FM (VHF)
AM (MV V)
AM (LW)
Garnes de fräquences
FM (0C)
AM (PO)
AM (GO)
Campi di ricezione
FM (OUC)
AM (onde medie)
AM (onde lunghe)
87— 108 MHz
522-1611 kHz
153— 279 kHz
Empfindlichkeit (an 75
0)
FM — Mono (26 dB)
FM — Stereo (46 dB)
Sensitivity (at 75 0)
FM — mono (26 dB)
FM — stereo (46 dB)
Sensibilitä (ä 75 ohms)
FM — Mono (26 dB)
FM — Stereo (46 dB)
Sensibilitä (su 75 ohm)
FM — mono (26 dB)
FM — stereo (46 dB)
1,0 µV
32 µV
ltennschärfe FM statidyn. FM selectivity stat./dyn. Sälectivit6 FM stat./dyn. Selettivitä FM stat./din. 80/70 dB
Geräuschspannungsabstand SignaVnoise ratio Rapport signal/bruit Rapporto segnale disturbo 70 dB
Netzspannung
Model Europa
Model USA/Kanada
Mains voltage
European model
US/Canadian model
Voltage secteur
Modäle Europe
Modäle USA/Canada
Tensione di rete
modello Europa
modello Stati UnitVCanada
230 V/50 Hz
120 V/60 Hz
Maße
(Breite
X
Höhe x Tiefe)
Dimensions
(width
X
height
X
depth)
Dimensions
(largeur x hauteurx profondeur)
Dimensioni
(larghezza
X
altezza
X
profonditä) 440 x 82 x 245 mm
Dual GmbH
•
Postfach 1144 • 7742 St. Georgen/Schwarzwald
921 610 0191
Copyright by Dual
