4.3 Trouble shooting
• Basically check the output voltage (both LEDs or measuring) and the fuses.
• Maybe the total output current or the temperature at the location was to high.
After cooling down or elimination of the output current problems the voltage transformer will work again.
• No video signal at the terminals 5 and 6: check the switches J and J (see instruction manual).
• In case of a -wire transmitter module check the power for the module.
• No remote control function: check the DIP-switches and the cabling.
IMPORTANT: In case of malfunction or reclamation it is necessary to get information about manufacture and
type of the connected units.

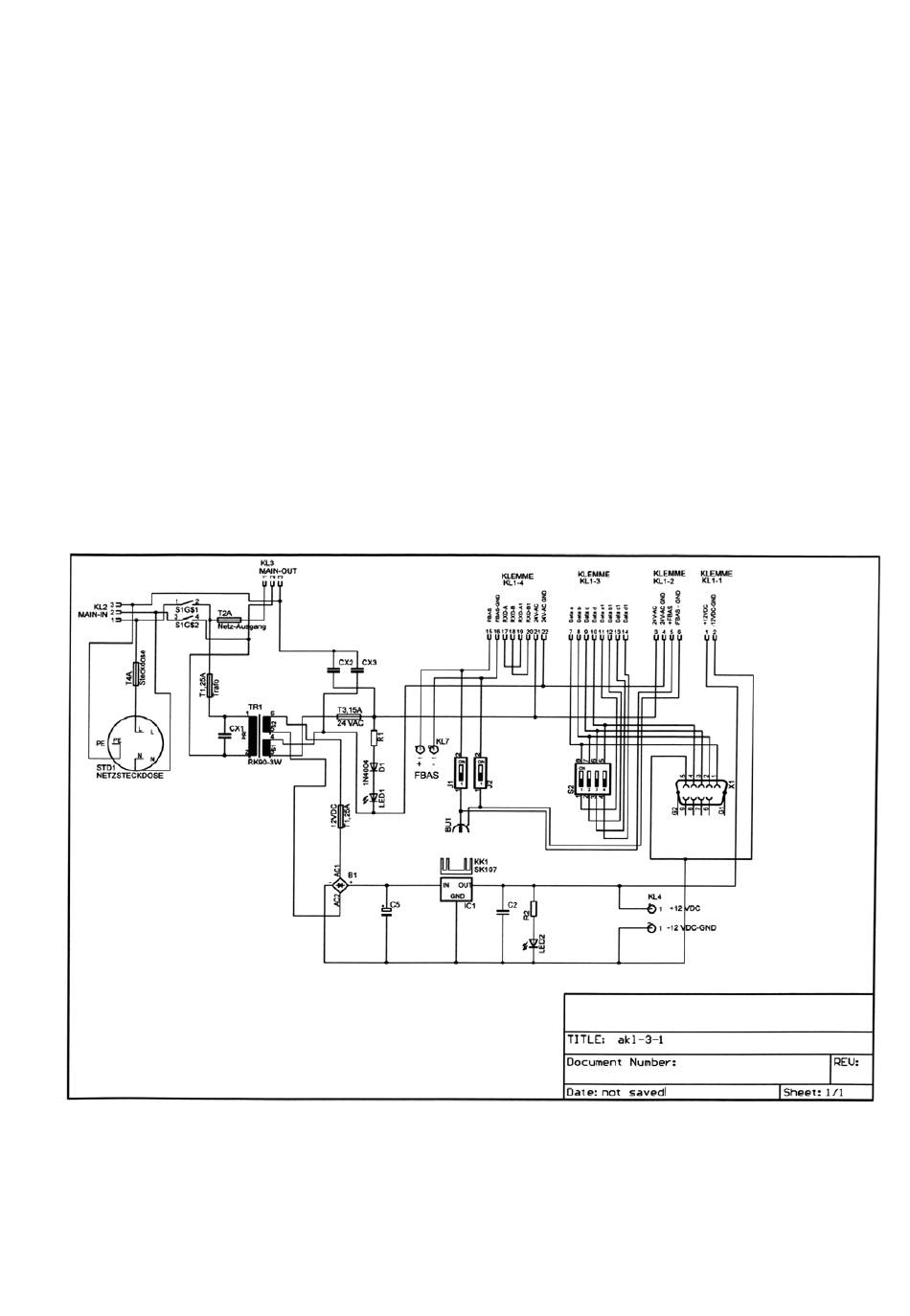

4.4 Circuit Diagram

3
