5.

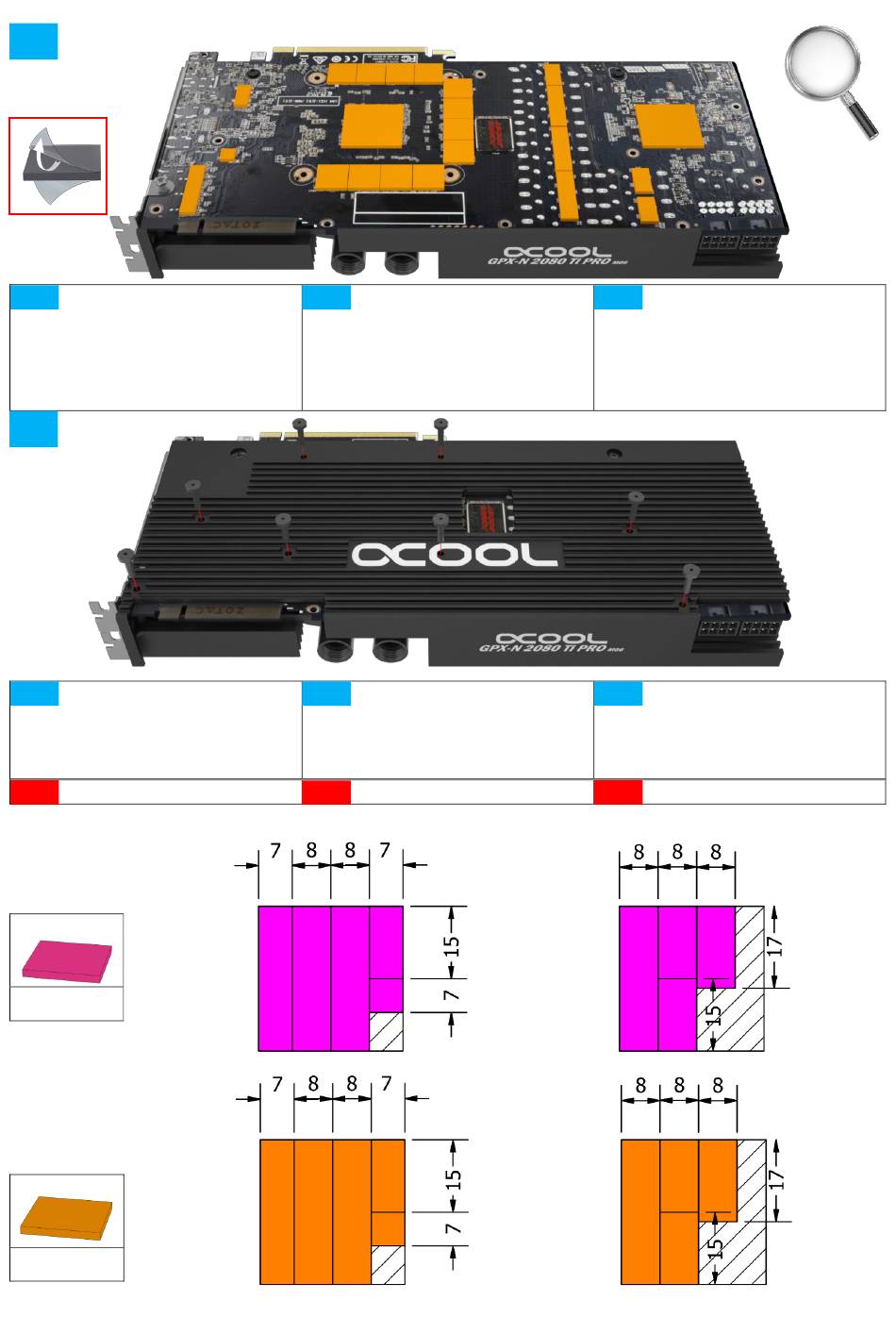

1
Remove the protective film from the 15 mm
EN
x 15 mm x 2 mm thermal pads and place
them in the areas shown in orange. Place one of the 30
mm x 30 mm x 2 mm pad on the back of the GPU and
the second one as shown in the picture. Cut the
remaining orange 30 mm x 30 mm x 2 mm pads to size
and place as shown. Do not forget to remove the
protective film on both sides!
6.
Put the backplate on as shown in the picture
EN
and screw the cooler together. Hand-tighten
the 8 M3x11 screws crosswise with one turn each.
Retighten the screws after about 12 hours of use of the
graphics card.
CUTTING PATTERNS
EN
2x
30 x 30 x 0.5mm
thermal pads
2x
30 x 30 x 2 mm
thermal pads
3
4
Entfernen Sie die Schutzfolie der orange
DE
dargestellten 15 mm x 15 mm x 2 mm
Wärmeleitpads und platzieren Sie diese wie dargestellt.
Platzieren Sie ein 30 mm x 30 mm x 2 mm Pad
rückseitig der GPU, ein weiteres platzieren Sie wie
dargestellt. Die restlichen orange dargestellten 30 mm x
30 mm x 2 mm Wärmeleitpads müssen zugeschnitten
werden. Vergessen Sie auch hier nicht die Schutzfolie zu
entfernen!
Legen Sie die Backplate, wie im Bild gezeigt,
DE
auf die Grafikkarte und schrauben Sie den
Kühler zusammen. Die 8 M3x11 Schrauben dabei
kreuzweise mit je einer Umdrehung anziehen.
Drehen Sie nach ca. 12 Stunden Benutzung der
Grafikkarte nochmals alle Schrauben fest.
DE
3
1 2 2
4
3
1
2
2
4
6
2
2
2
SCHNITTMUSTER
SEE
5
5
Retirez le film de protection des pads
FR
thermiques 15 mm x 15 mm x 2 mm
montrés en orange et posez-les sur les comme
montré. Placez un pad orange 30 mm x 30 mm x 2
mm à l'arrière du GPU placez-en un autre comme
indiqué. Les autres pads thermiques 30 mm x 30 mm
x 2 mm doivent être découpés. N'oublier pas
d'enlever le film de protection.
Installez la plaque arrière comme montré
FR
dans l'image et visser le refroidisseur. Serrer
les 8 M3x11 vis par une seule tour respective de
manière croisé.
Resserrez les vis après 12 heures d'utilisation de la
carte graphique.
MODÈLES DE DÉCOUPAGE
FR
5
6
2
5
6
5
2
5
CUTTING PATTERNS
SIEHE
SCHNITTMUSTER
REGARDEZ
MODÈLES DE
DÉCOUPAGE
