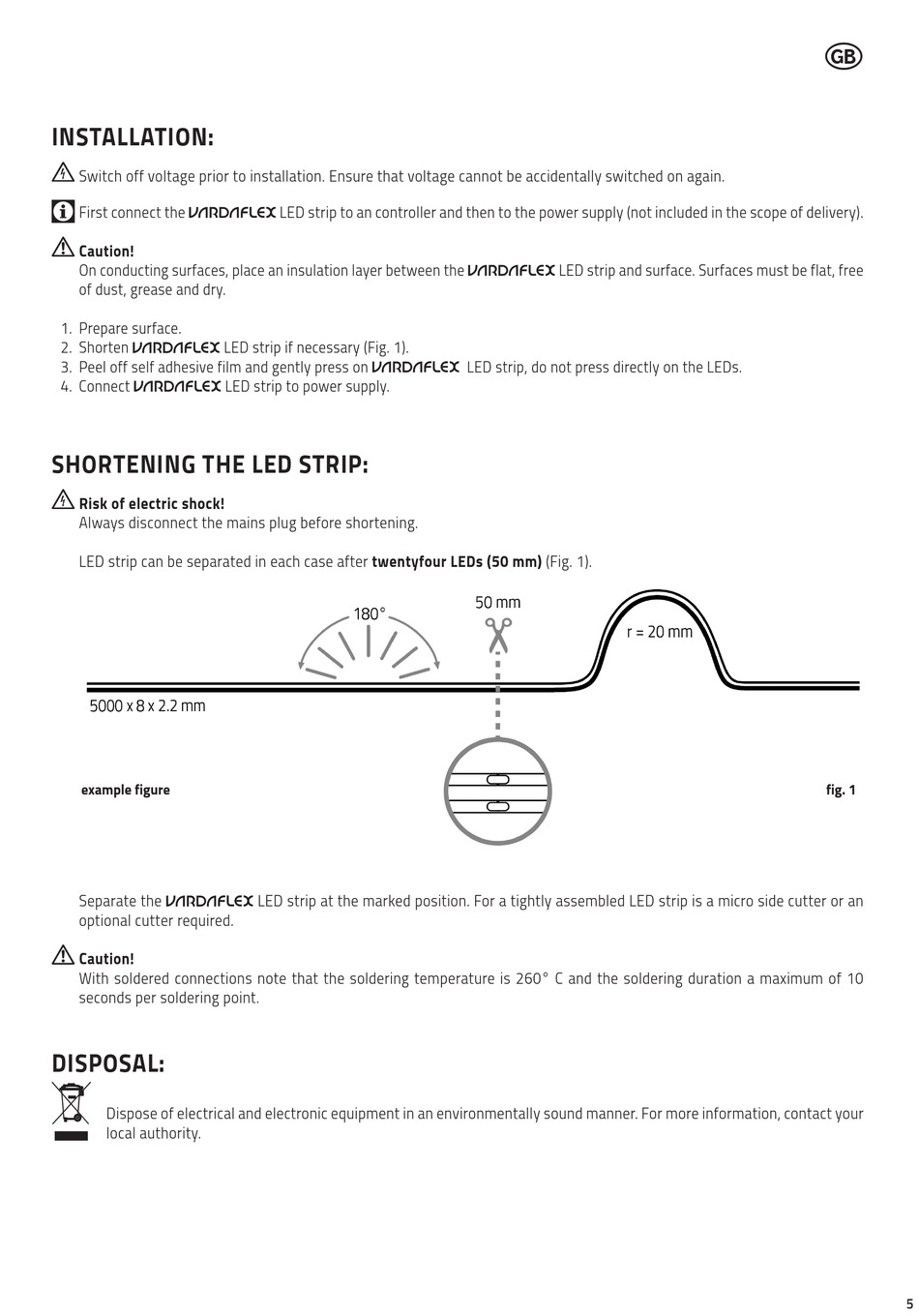

INSTALLATION:
Switch off voltage prior to installation. Ensure that voltage cannot be accidentally switched on again.
First connect the
Caution!
On conducting surfaces, place an insulation layer between the
of dust, grease and dry.
1. Prepare surface.
2. Shorten
LED strip if necessary (Fig. 1).
3. Peel off self adhesive film and gently press on
4. Connect
LED strip to power supply.
SHORTENING THE LED STRIP:
Risk of electric shock!
Always disconnect the mains plug before shortening.
LED strip can be separated in each case after twentyfour LEDs (50 mm) (Fig. 1).
example figure
Separate the
optional cutter required.
Caution!
With soldered connections note that the soldering temperature is 260° C and the soldering duration a maximum of 10
seconds per soldering point.
DISPOSAL:
Dispose of electrical and electronic equipment in an environmentally sound manner. For more information, contact your
local authority.
LED strip to an controller and then to the power supply (not included in the scope of delivery).
LED strip at the marked position. For a tightly assembled LED strip is a micro side cutter or an
LED strip and surface. Surfaces must be flat, free
LED strip, do not press directly on the LEDs.
G
fig. 1
5
