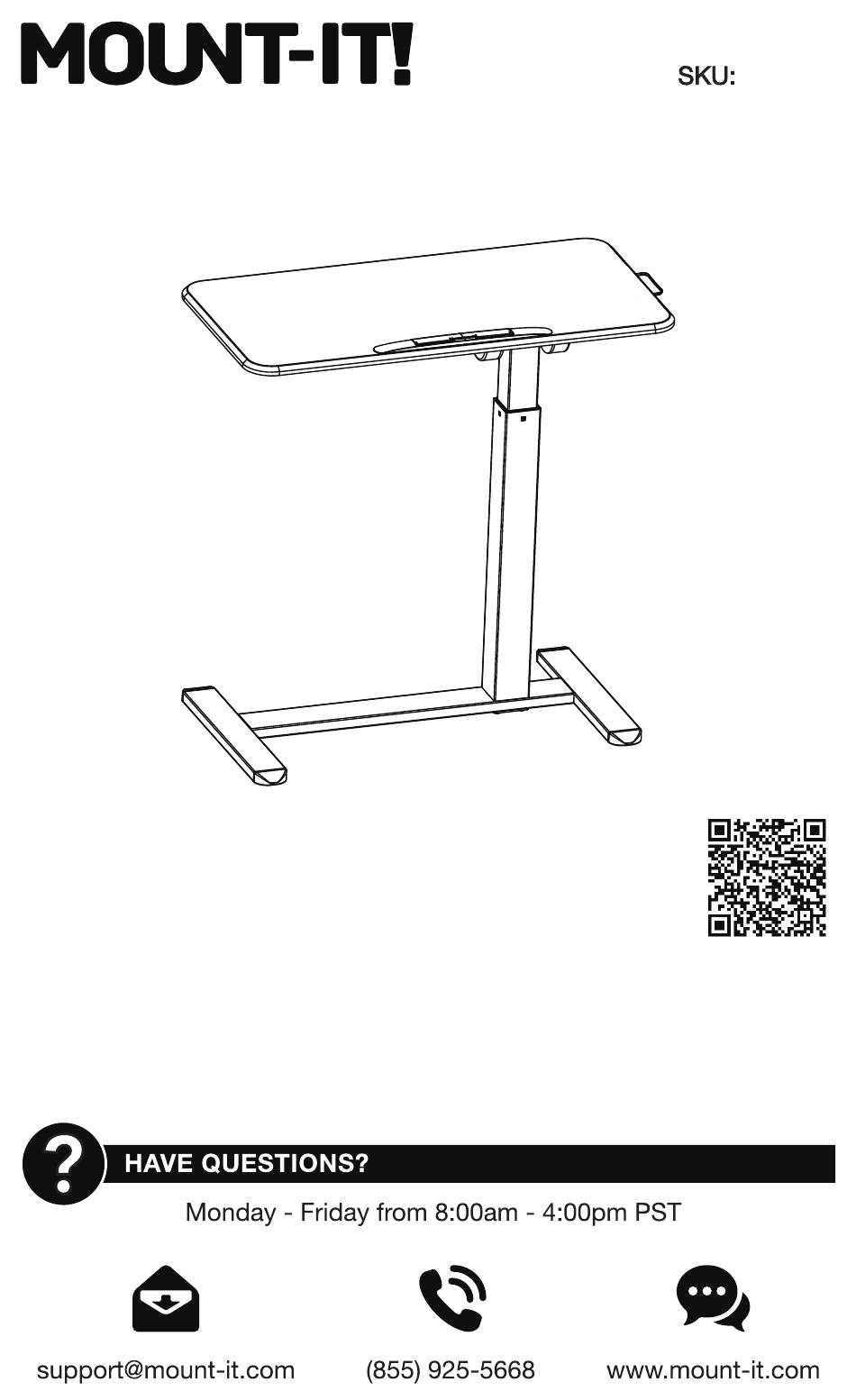

- Seite 1 User Manual MI-8045 Please scan this QR code to visit the product page HEIGHT ADJUSTABLE OVERBED DESK WITH TILT TABLETOP...
- Seite 2 Thank you for choosing Mount-It Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact Mount-It! for assistance. CAUTION: Use with products heavier than the rated weights indicated may result in instability causing possible injury. •...
-
Seite 3: Package Contents
PACKAGE CONTENTS DESKTOP CONNECTOR BASE M6x40 BOLT M5x12 BOLT HEX WRENCH M6x15 BOLT DIMENSIONS & WEIGHT CAPACITY Total desk weight capacity is 17.6lbs. *Maximum weight capacity is 45lbs. 17.6lbs capacity is the maximum recommended load considered safe for raising and lowering the desk. The desk is capable of handling heavier computers if the user is capable of lifting and lowering the desk. - Seite 4 Step 1 Install the Base Connect the Base (#C) to the bottom end of the Leg (#D) with Bolts (#E) and tighten using Hex Wrench (#H). The bottom end of the Leg is the end that does not have the handle attached. Step 2 Attach the Connector to the Desktop Attach the Connector (#B) to the underside of the Desktop (#A) using Bolts (#F).
- Seite 5 Step 3 Attach the Desktop to the Leg Connect the desktop to the leg by aligning the bolt holes on the bracket with the holes on the top of the leg. Secure it in place using Bolts (#G) and Hex Wrench (#H). Step 4 Attach the Handle Attach the handle to the two bolt holes as shown using the Bolts (#F).
- Seite 6 Step 5 Tilting the Desktop The desktop can be rotated 90° for storage or to save space. To rotate the desktop, squeeze the long handle shown here toward the underside of the desk and tilt the desktop until it stops or reaches the desired angle, then release the handle. 0~90°...
- Seite 7 Step 6 Place Items on the Desk Place all laptops other equipment on the desk. Ensure none of the equipment is hanging off the edge or otherwise unstable/unbalanced. Press and hold the lever to raise or lower the desk. Laptop Flip up the tab on the front end of the desk when using the desk at an angle, to keep devices...
