VT TERMINALI OPERATORE UNIVERSALI
VT UNIVERSAL OPERATOR TERMINALS
VT TERMINAUX OPERATEURS UNIVERSELS
VT UNIVERSELLE BEDIENTERMINALS
VT TERMINALES UNIVERSALES PARA EL OPERADOR

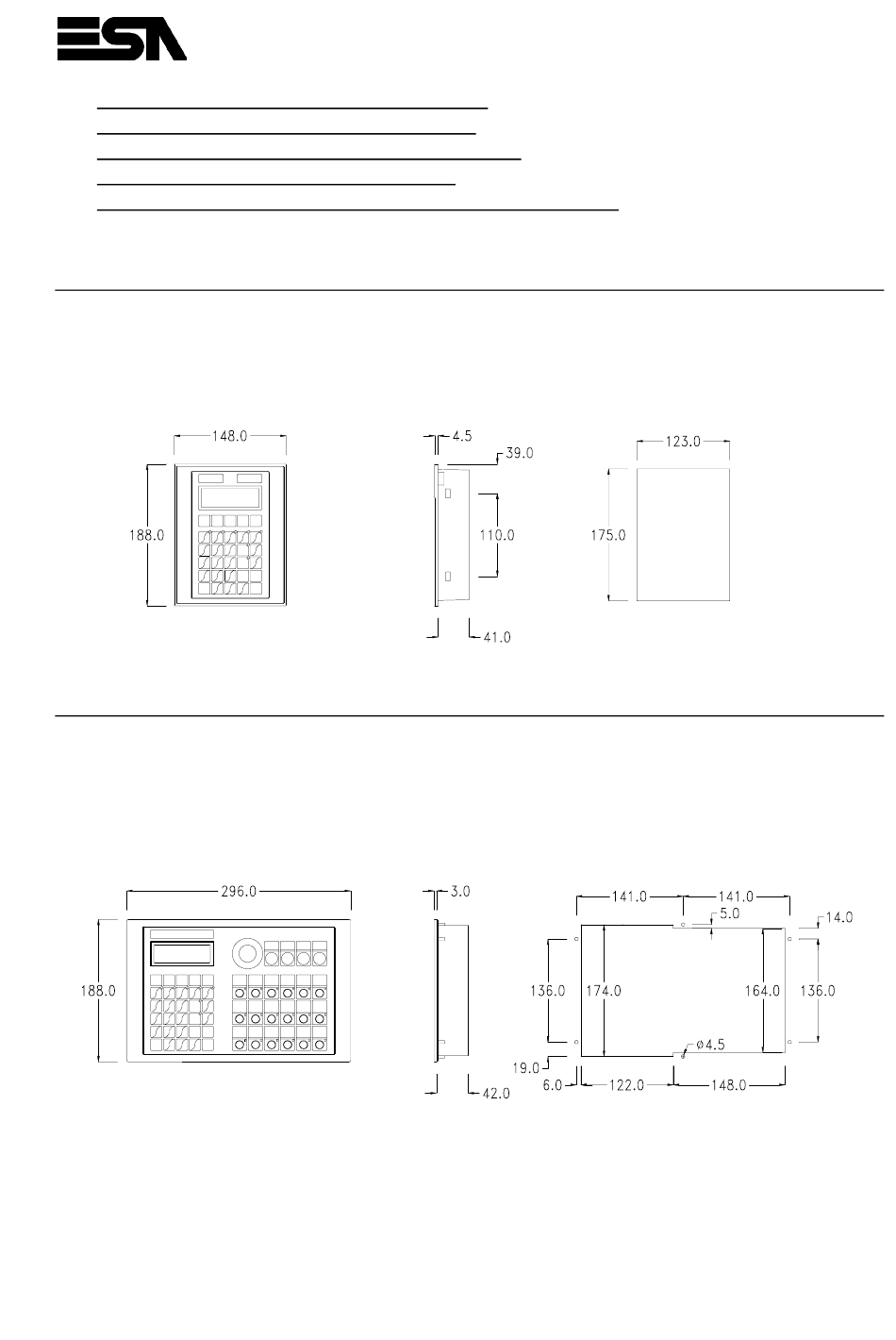

Dimensioni - Forature / Dimensions - Holes / Dimensions - Forures /
Abmessungen - Bohrungen / Dimensiones y perforaciones
Rev. 2
VT150W
VT160W
Date: 26/02/02
405.1300.009.0
Werbung
Verwandte Anleitungen für ESA VT150W
Inhaltszusammenfassung für ESA VT150W
- Seite 1 VT UNIVERSAL OPERATOR TERMINALS VT TERMINAUX OPERATEURS UNIVERSELS VT UNIVERSELLE BEDIENTERMINALS VT TERMINALES UNIVERSALES PARA EL OPERADOR Dimensioni - Forature / Dimensions - Holes / Dimensions - Forures / Abmessungen - Bohrungen / Dimensiones y perforaciones VT150W VT160W Rev. 2 Date: 26/02/02 405.1300.009.0...
- Seite 2 Posteriori / Rear sides / Face arriéres / Rückseiten / Posterior VT150W VT160W Connettore di alimentazione. Porta seriale per la comunicazione con PLC/PC. Power supply connector. Serial port for communicating with PLC/PC. Connecteur d'alimentation. Port sériel pour la communication avec le PLC/PC.
- Seite 3 Alimentazione / Power supply / Alimentation / Spannungsversorgung / Alimentación Power supply 4 pins connector +L 24 VDC M 0 V Not Connected PE Protective ground Attenzione: Queste configurazioni danneggiano gravemente il VT. Warning: These two configuration will +24V seriously damage components. Attention: Ces deux configurations peuvent endommager certains composonts.
- Seite 4 N.C. Tx Rx485 +IN/OUT Tx RS422 +OUT Rx RS422 –IN *Rx C.L. –IN *C.L.: Current Loop (TTY). N.C. : Not connected. ESA elettronica S.p.A. Via Padre Masciadri, 4/A I – 22066 Mariano Comense (CO) Tel. ++39-031757400 Fax ++39-031751777 web: http://www.esahmi.it e-mail: esahmi@esahmi.it...
