Speed controlled pump (R3500 1-5 / R3600 0-4)
Drehzahlgeregelte Pumpe (R3500 1- 5 / R3600 0-4)
Toerengeregelde pomp (R3500 1-5 / R3600 0-4)
Pompe à vitesse variable (R3500 1-5 / R3600 0-4)
Pompa a velocità variabile (R3500 1-5 / R3600 0-4)
Programming/Programmierung/Programmeren/Programmation/Programma
Language: Select language
Start-up guide: Follow the steps;
- Date format;
- Set date;
- Time format;
- Set time;
- Setting of pump
- Go to "Assisted pump setup"
- Settings
- Relais outputs
- Relay output 2: Alarm;
- Assist
- Setup, analog input
- Functie analoge input: External setpoint influence;
- Electrical signal: 0-10V;
- Settings
- Setpoint-influence
- External setpoint function: Linear with MIN
420010547600

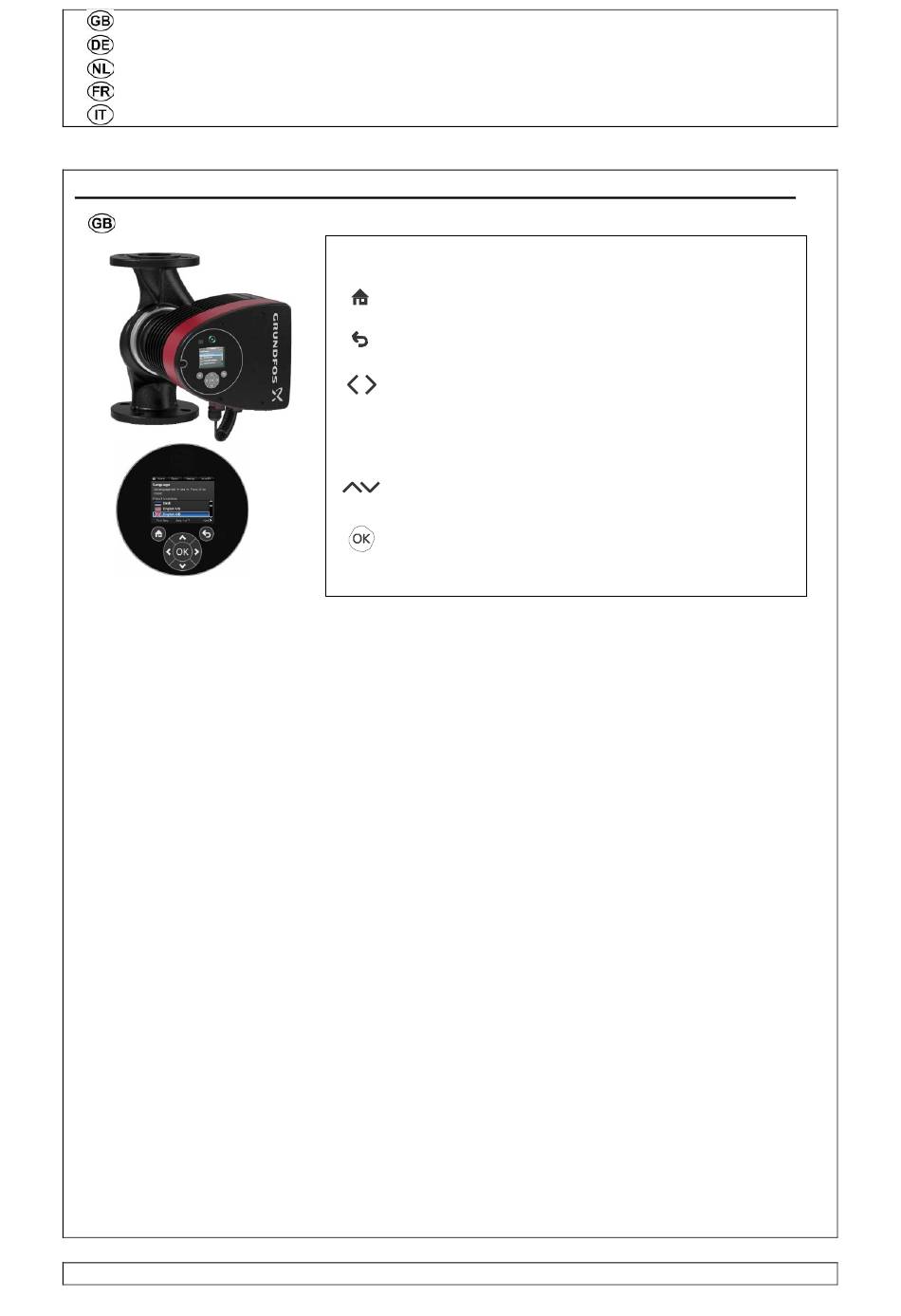

Button Function

Goes to the "Home" menu.
Returns to the previous action.
Navigates between main menus, displays and
digits.
When the menu is changed, the display will
always show the top display of the new menu.
Navigates between submenus.
Saves changed values, resets alarms and
expands the value field.
-Control modes: Constant curve;
-Adjust setpoint: Depending on boiler type / installation to
ensure nominal flow;
08-2013
6
