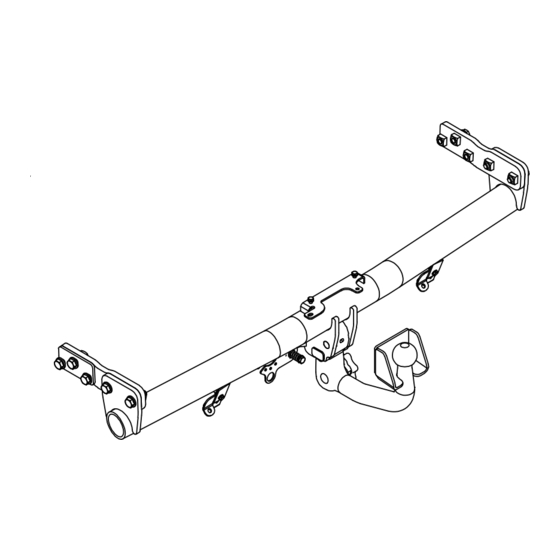

All manuals and user guides at all-guides.com Hyundai Kona Elektro (OS/ OSE) MVG: 3134 F - Fahrradträgeradapter Instrucciones de montaje Inbouw instructie Einbauanleitung Monteringsanvisning Installation instruction Návod k montáži Notice de montage Istruzioni di montaggio An der Wasserwiese 1 info@mvg-ahk.de Tel.: 0049 (0)2403/7902-60...
Seite 2
All manuals and user guides at all-guides.com e4 * 2007/46 * 1259 OSE: e4 * 2007/46 * 1522 (100 KW Motor) = 0,0 kN 65 kg max. Gewicht beachten ! Note Capacity ! maximale Zuladung Max. 9999Z-04625 STRADA Vario 2 (SVA 2/3) 17,5 kg max.
Seite 3
All manuals and user guides at all-guides.com e4 * 2007/46 * 1522 (150 KW Motor) = 0,0 kN max. Gewicht S 100 kg beachten ! Note Capacity ! maximale Zuladung Max. 9999Z-04625 STRADA Vario 2 (SVA 2/3) 17,5 kg 78 kg max.
Seite 4
All manuals and user guides at all-guides.com Seite 4 - 29...
Seite 5
All manuals and user guides at all-guides.com Seite 5 - 29...
Seite 6
All manuals and user guides at all-guides.com Seite 6 - 29...
Seite 7
All manuals and user guides at all-guides.com 1000 Km 1000 Km 68 Nm (max. 2 x (max. 3 x km/h Seite 7 - 29...
Seite 8
65 kg 75 kg MV G-Metal l verarbei tungsgesellschaft mbH MV G-Metal l verarbei tungsgesellschaft mbH www.mvg-ahk.de www.mvg-ahk.de MVG-Metallverarbeitungsgesellschaft mbH Type: 3134 F D-Value: 0,0 kN Zulässiges Gewicht Zulässiges Gewicht max. Load: 100 kg maximal maximal 78 kg 85 kg Made in Germany www.mvg-ahk.de...
Seite 9
All manuals and user guides at all-guides.com siehe Werkstatthandbuch Nicht Entsorgen Entsorgen Von Hand Achtung Bewegungspfeil Positionspfeil Stecker lösen/ verbinden Nicht ölen Nur zu zweit ausführen Ohne Druckluft Seitenschneider verwenden CLEANER Festdrehen Siehe Abbildung Reinigen Von Hand festdrehen Ø8 Bohrer verwenden Unterbodenschutz entfernen Gegen Korrosion schützen Bohrer Ø...
Seite 10
All manuals and user guides at all-guides.com 3134 F 20 1x 3134 F H yu n d a i Ko n a El e ktro (OS/ OSE) MVG: 3134 F - F ahrradträgeradapter 3134 F (2040) System 2020 A / 2040 A System 2020A/2040A 0062 (links &...
Seite 11
All manuals and user guides at all-guides.com Seite 11 - 29...
Seite 12
All manuals and user guides at all-guides.com Seite 12 - 29...
Seite 13
All manuals and user guides at all-guides.com Seite 13 - 29...
Seite 14
All manuals and user guides at all-guides.com Seite 14 - 29...
Seite 15
All manuals and user guides at all-guides.com Seite 15 - 29...
Seite 16
All manuals and user guides at all-guides.com Seite 16 - 29...
Seite 17
All manuals and user guides at all-guides.com Seite 17 - 29...
Seite 18
All manuals and user guides at all-guides.com M12x30 M12x40 Seite 18 - 29...
Seite 19
All manuals and user guides at all-guides.com Seite 19 - 29...
Seite 20
All manuals and user guides at all-guides.com M12x40 Seite 20 - 29...
Seite 21
All manuals and user guides at all-guides.com 8.8 68Nm 8.8 68Nm Seite 21 - 29...
Seite 22
All manuals and user guides at all-guides.com Seite 22 - 29...
Seite 23
All manuals and user guides at all-guides.com Seite 23 - 29...
Seite 24
All manuals and user guides at all-guides.com Seite 24 - 29...
Seite 25
All manuals and user guides at all-guides.com Seite 25 - 29...
Seite 26
All manuals and user guides at all-guides.com Seite 26 - 29...
Seite 27
Zulässiges Gewicht maximal 65 kg M V G - M e t a l l v e r a r b e i t u n gsgesellschaft mbH www.mvg-ahk.de Zulässiges Gewicht maximal 75 kg M V G - M e t a l l v e r a r b e i t u n gsgesellschaft mbH www.mvg-ahk.de...
Seite 28
All manuals and user guides at all-guides.com ! Nicht für Anhängerbetrieb ! Technische Änderungen vorbehalten Hyundai Kona Elektro (OS/ OSE) MVG: 3134 F - Fahrradträgeradapter Instrucciones de montaje Inbouw instructie Einbauanleitung Monteringsanvisning Installation instruction Návod k montáži Notice de montage...
Seite 29
All manuals and user guides at all-guides.com Der Fahrradträgeradapter ist ein Sicherheitsteil und darf nur von Fachunternehmen montiert werden. Bei falscher Montage besteht schwere Unfallgefahr! Der deutsche Text dieser Anleitung ist bindend. č č Adaptéru nosiče jízdních kol je bezpe nostní...
Seite 30
All manuals and user guides at all-guides.com...
Seite 31
All manuals and user guides at all-guides.com...
Seite 32
All manuals and user guides at all-guides.com Die Bedienungsanleitung als Video finden Sie unter folgendem Link: https://mvg.li/2040 Außerdem können Sie mit Ihrem Smartphone den Video-Link durch diesen QR-Code direkt scannen und das Video ansehen. This instruction manual can be found as an illustrating video under the following link: https://mvg.li/2040...
