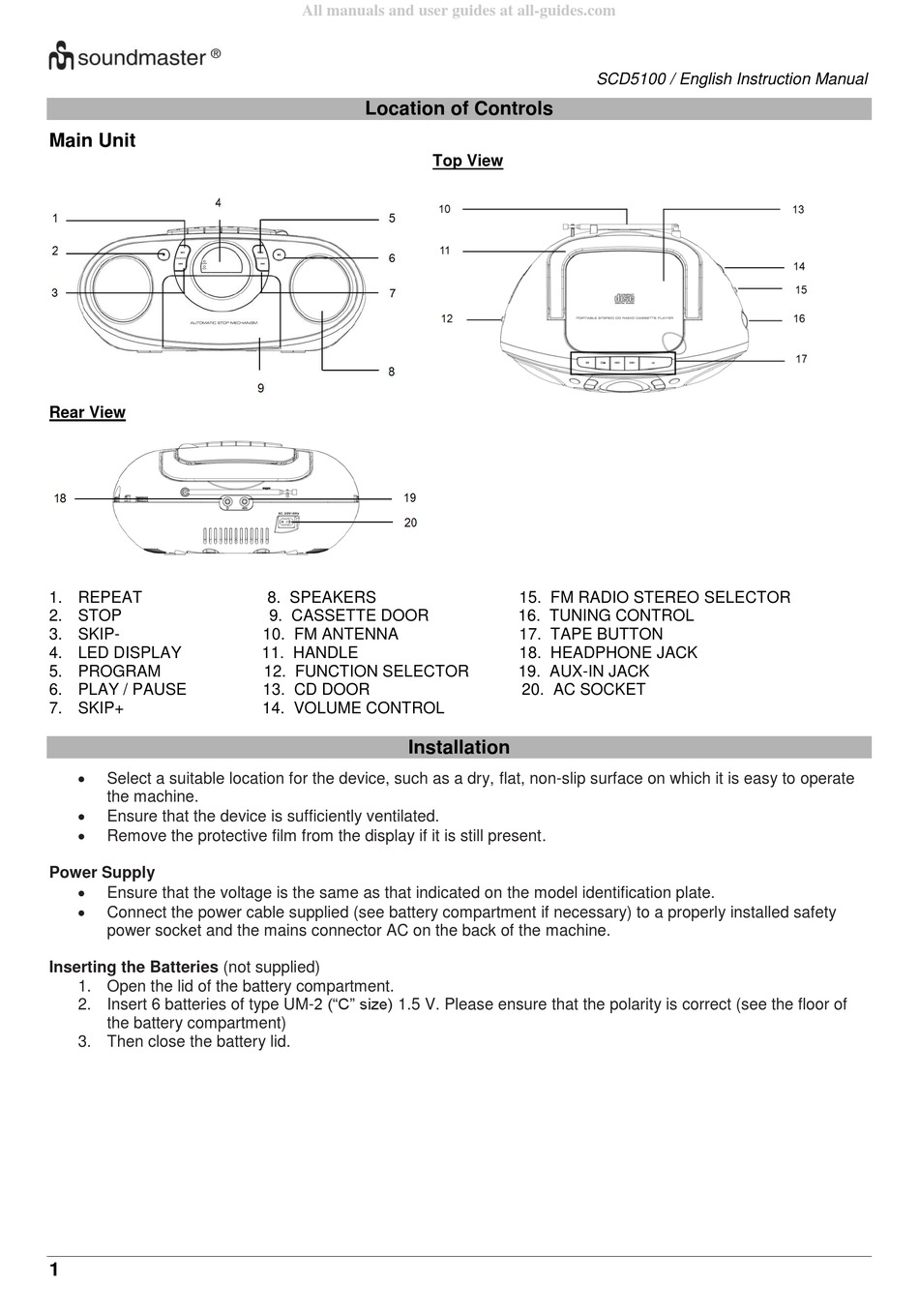

Main Unit
Rear View
1. REPEAT
2. STOP
3. SKIP-
4. LED DISPLAY
5. PROGRAM
6. PLAY / PAUSE
7. SKIP+

Select a suitable location for the device, such as a dry, flat, non-slip surface on which it is easy to operate
the machine.

Ensure that the device is sufficiently ventilated.

Remove the protective film from the display if it is still present.
Power Supply

Ensure that the voltage is the same as that indicated on the model identification plate.

Connect the power cable supplied (see battery compartment if necessary) to a properly installed safety
power socket and the mains connector AC on the back of the machine.
Inserting the Batteries (not supplied)
1. Open the lid of the battery compartment.
2. Insert 6 batteries of type UM-2 ("C" size) 1.5 V. Please ensure that the polarity is correct (see the floor of
the battery compartment)
3. Then close the battery lid.
1
All manuals and user guides at all-guides.com
Location of Controls
Top View
8. SPEAKERS
9. CASSETTE DOOR
10. FM ANTENNA
11. HANDLE
12. FUNCTION SELECTOR
13. CD DOOR
14. VOLUME CONTROL
Installation
SCD5100 / English Instruction Manual
15. FM RADIO STEREO SELECTOR
16. TUNING CONTROL
17. TAPE BUTTON
18. HEADPHONE JACK
19. AUX-IN JACK
20. AC SOCKET
