BOERPLAY Amazonite Installationsanleitung Seite 85

Vorschau ausblenden Andere Handbücher für Amazonite:
Inhaltsverzeichnis

Werbung

1
/ 1
A

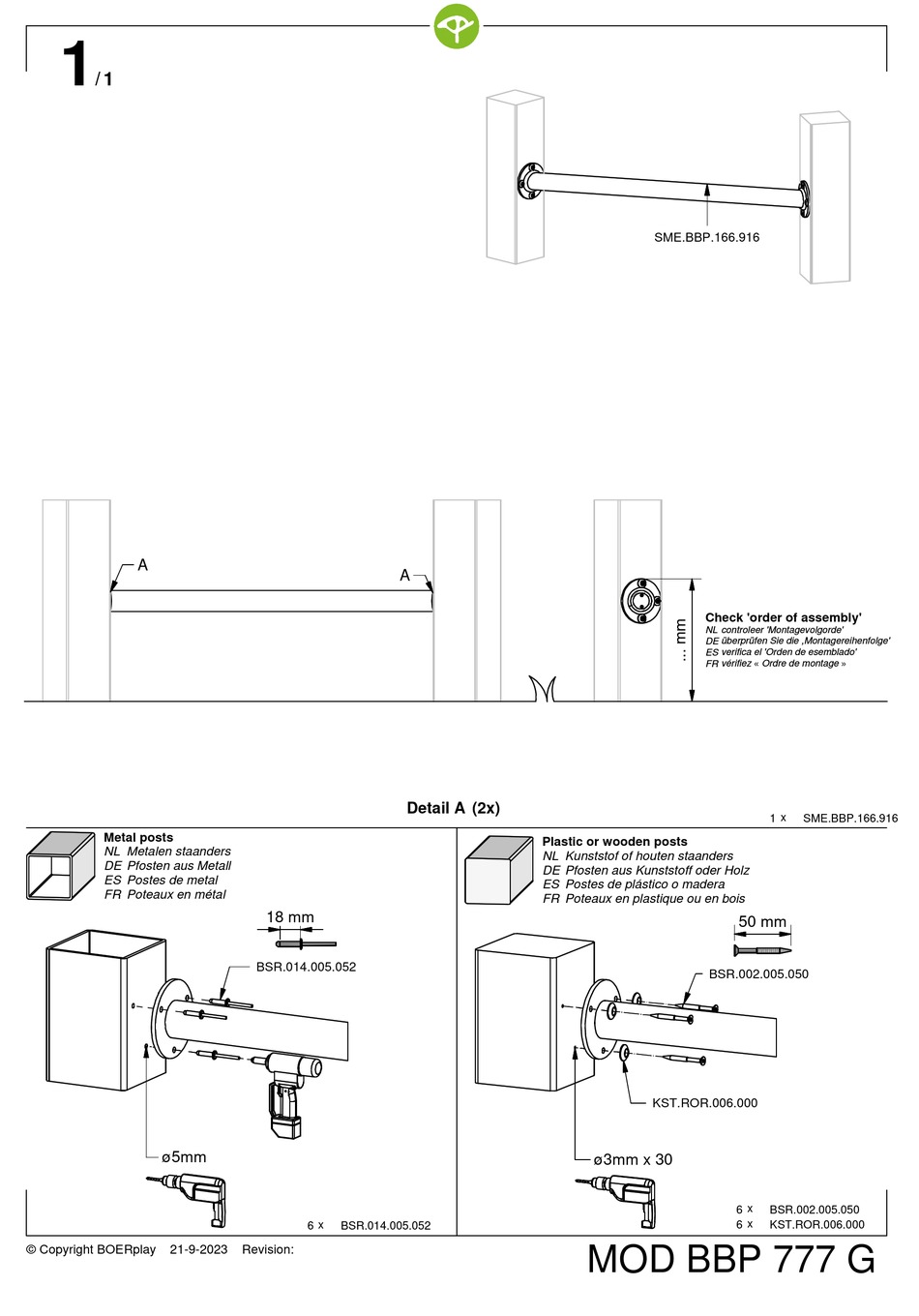

Metal posts
NL
Metalen staanders
DE
Pfosten aus Metall
ES
Postes de metal
FR
Poteaux en métal
ø5mm
© Copyright BOERplay
21-9-2023
A
Detail A (2x)
18 mm
BSR.014.005.052
x
6
BSR.014.005.052
Revision:
SME.BBP.166.916
Check 'order of assembly'
NL
DE
ES
FR
Plastic or wooden posts
NL
Kunststof of houten staanders
DE
Pfosten aus Kunststoff oder Holz
ES
Postes de plástico o madera
FR
Poteaux en plastique ou en bois
BSR.002.005.050
KST.ROR.006.000
ø3mm x 30
MOD BBP 777 G
controleer 'Montagevolgorde'
überprüfen Sie die ,Montagereihenfolge'
verifica el 'Orden de esemblado'
vérifiez
Ordre de montage
x
1
SME.BBP.166.916
50 mm
x
6
BSR.002.005.050
x
6
KST.ROR.006.000
