LΩGIC Wall Controller
Each LΩGIC Wall Panel 16- Port comes with a wall-mounted control panel (LΩGIC Wall Controller) which can plug into
the RJ12 connector on the back of the product. Download the User Manual from
information.
• Buttons 1–8 trigger playback of the corresponding recorded programs.
• Buttons 9 and 10 decrease and increase the brightness of the connected LOGIC products.
• 5-bit DIP switches set the address of the LΩGIC Wall Controller.
1–8
9 10

DMX Linking

The LΩGIC Wall Panel 16- Port will work with a DMX controller using a 5-pin phoenix connector. A DMX Primer is
available from www.iluminarc.com.

DMX Connection

The LΩGIC Wall Panel 16- Port provides a DMX 512 connection using a 5-pin phoenix connector. See the User Manual
for information about connecting and configuring the product for DMX operation.
DMX Output
LΩGIC Wall Panel 16- Port QRG Rev. 1
QUICK REFERENCE GUIDE
DIP switches
1. Ground
2. Data 1 -
3. Data 1 +
4. Not used
5. Not used
www.iluminarc.com

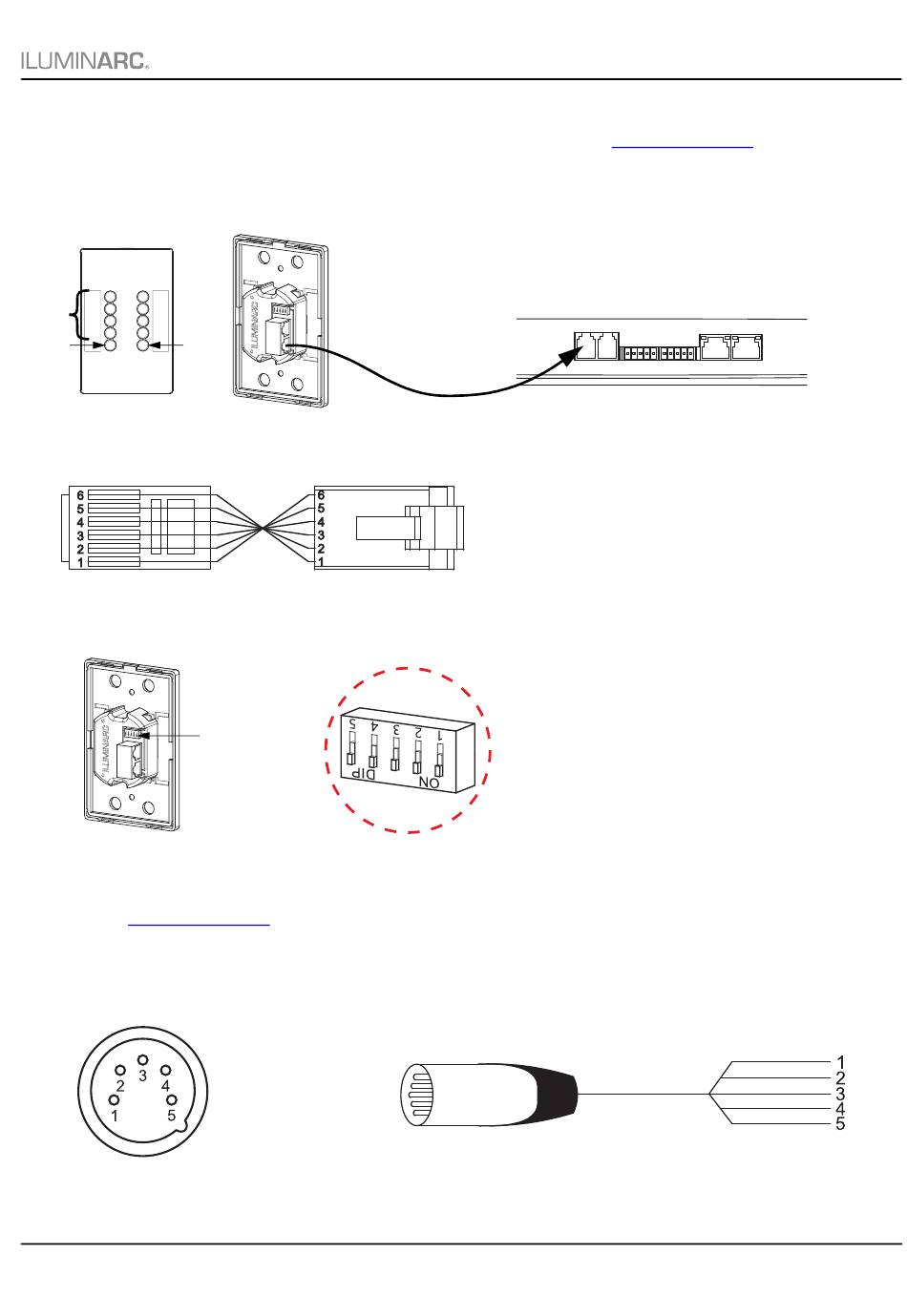

RJ12 with flipped/ reverse wiring
DIP switches use binary addressing
5=1 5-1 (ON)
4=2 4-0
Example:
3=4 3-1 (ON) = 00101 = 5
2=8 2-0
1=16 1-0
Signal Connector
