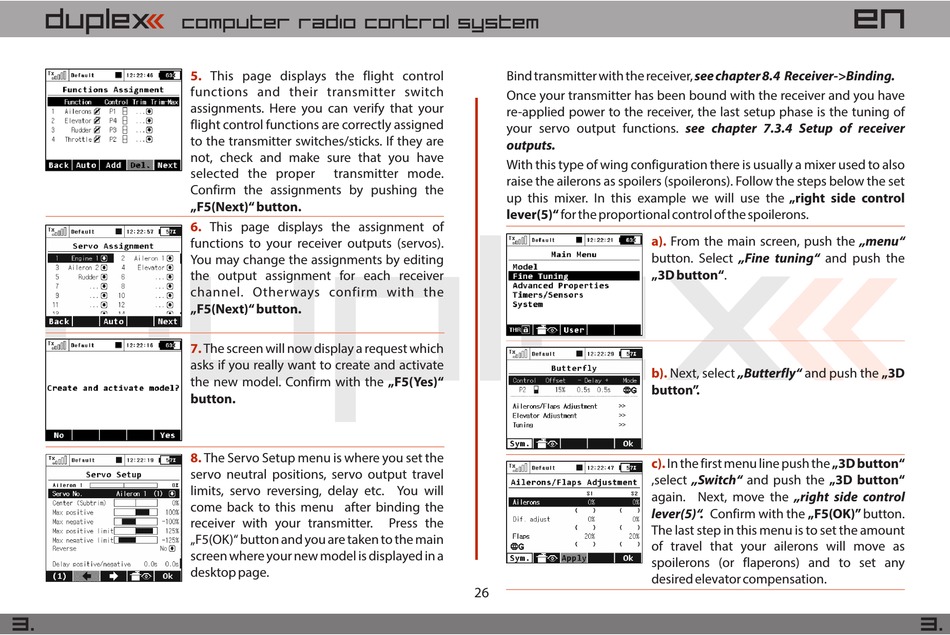

Duplex DC-16 Anleitung Seite 144

computer radio control system
5.
functions and their transmitter switch
assignments. Here you can verify that your
flight control functions are correctly assigned
to the transmitter switches/sticks. If they are
not, check and make sure that you have
selected the proper
Confirm the assignments by pushing the
„F5(Next)" button.
6.
functions to your receiver outputs (servos).
You may change the assignments by editing
the output assignment for each receiver
channel. Otherways confirm with the
„F5(Next)" button.
7.
asks if you really want to create and activate
the new model. Confirm with the „F5(Yes)"
button.
8.
servo neutral positions, servo output travel
limits, servo reversing, delay etc. You will
come back to this menu after binding the
receiver with your transmitter.
„F5(OK)" button and you are taken to the main
screen where your new model is displayed in a
desktop page.
3.
This page displays the flight control
transmitter mode.
This page displays the assignment of
The screen will now display a request which
The Servo Setup menu is where you set the
Bind transmitter with the receiver, see chapter 8.4 Receiver->Binding.
Once your transmitter has been bound with the receiver and you have
re-applied power to the receiver, the last setup phase is the tuning of
your servo output functions. see chapter 7.3.4 Setup of receiver
outputs.
With this type of wing configuration there is usually a mixer used to also
raise the ailerons as spoilers (spoilerons). Follow the steps below the set
up this mixer. In this example we will use the „right side control
lever(5)" for the proportional control of the spoilerons.
Press the
26
a). From the main screen, push the „menu"
button. Select „Fine tuning" and push the
„3D button".
b). Next, select „Butterfly" and push the „3D
button".
c). In the first menu line push the „3D button"
,select „Switch" and push the „3D button"
again. Next, move the „right side control
lever(5)". Confirm with the „F5(OK)" button.
The last step in this menu is to set the amount
of travel that your ailerons will move as
spoilerons (or flaperons) and to set any
desired elevator compensation.
