ATOMSTACK MAKER AC1 Benutzerhandbuch Seite 9

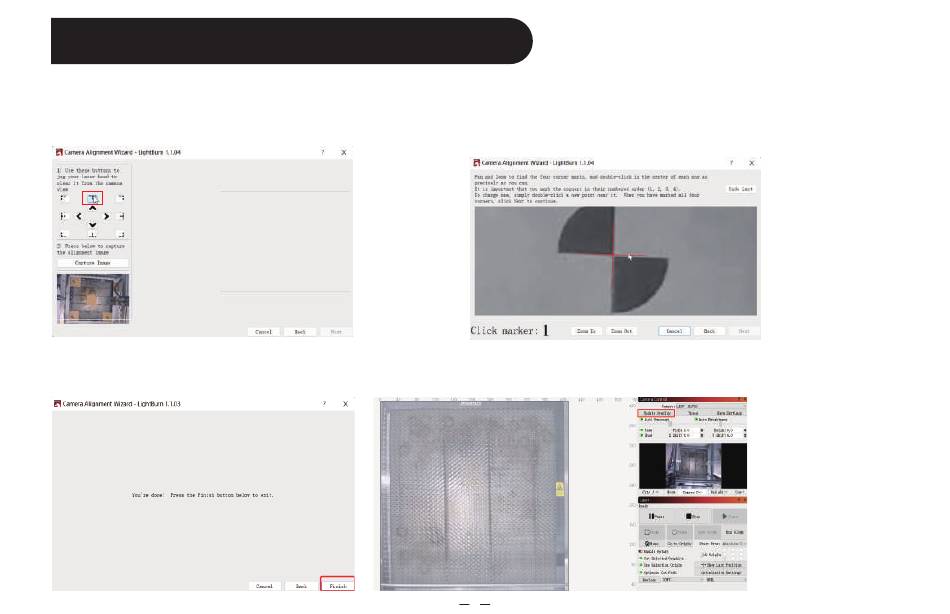

6 Calibration Camera Alignment
6.5 After the engraving is complete, click the button in the red
box to move the laser to the upper position so as not to block
the engraved pattern, click Capture Image, and then click Next.
6.7 Remove the cardboard when finished and click Update Overlay
6.6 First zoom in on the pattern at position 1, double-click the cross
point, and click the cross point position in the order of numbers 1-4. If the
double-clicked cross has obvious deviation, you can click Undo Last or a
blank position, and then double-click to re-select the cross point.
Intersection
8
