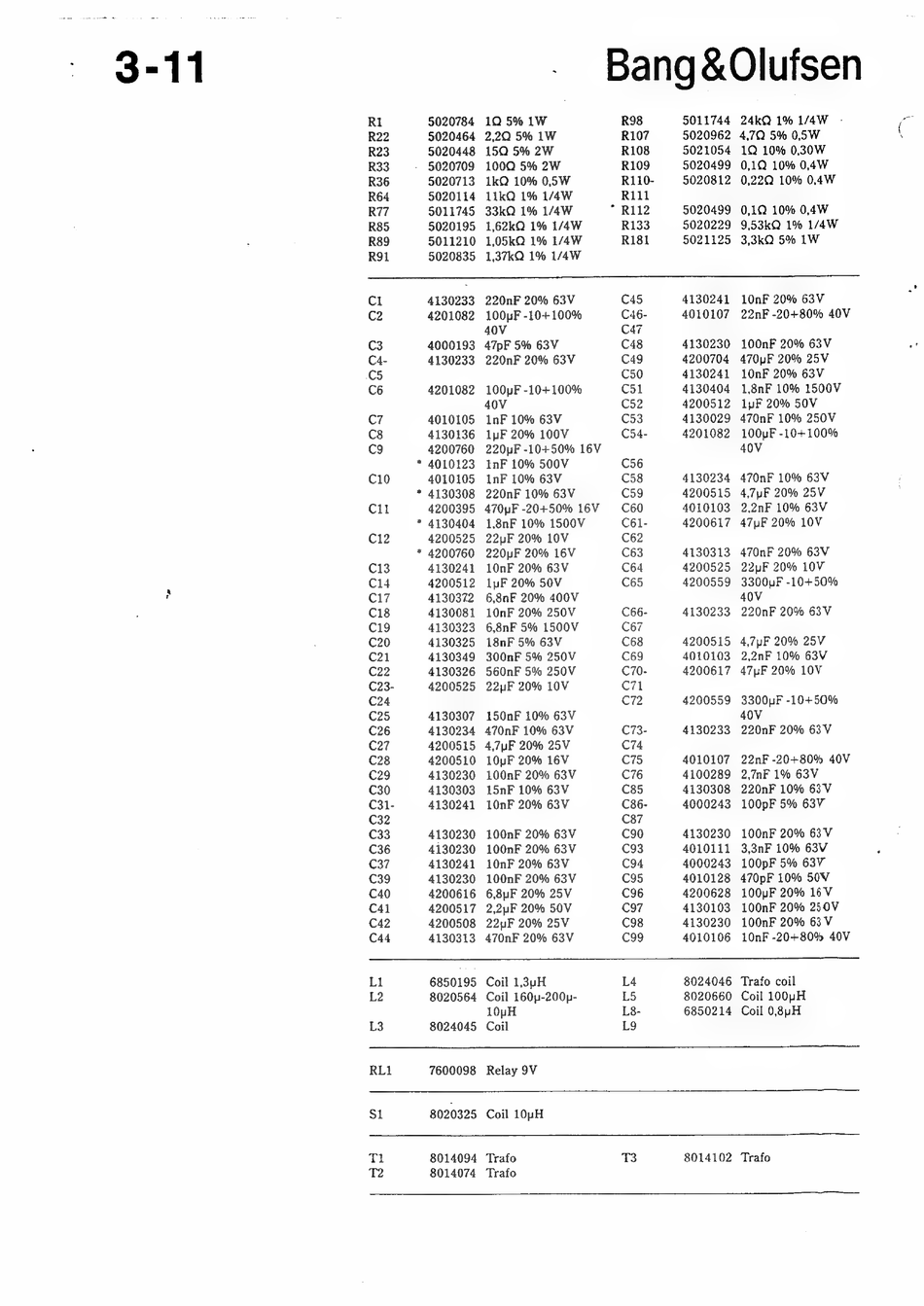

Bang & Olufsen Beovision LX 4500 Serviceanleitung Seite 42

"2
Bang &Olufsen
Rl 5020784 10 5% 1W R98 5011744 24kQ 1% 1/4W
R22 5020464 2,2Q 5% 1W R107 5020962 4,72 5% 0,5W
R23 5020448 150 5% 2W R108 5021054 1Q 10% 0,30W
R33 - 5020709 100Q 5% 2W R109 5020499 0,1Q 10% 0,4W
R36 5020713 1kQ 10% 0,5W R110- 5020812 0,22Q 10% 0.4W
R64 5020114 11kQ 1% 1/4W R111
R77 5011745 33kQ 1% 1/4W * R112 5020499 0,1Q 10% 0,4W
R85 5020195 1,62kQ 1% 1/4W R133 5020229 9,53kQ 1% 1/4W
R89 5011210 1,05kQ 1% 1/4W R181 5021125 3,3kQ 5% 1W
R91 5020835 1,37kQ 1% 1/4W
Cl 4130233 220nF 20% 63V C45 4130241 10nF 20% 63V
C2 4201082 100pF -10+100% C46- 4010107 22nF -20+80% 40V
40V C47
C3 4000193 47pF 5% 63V C48 4130230 100nF 20% 63V
C4- 4130233 220nF 20% 63V C49 4200704 470yuF 20% 25V
C5 C50 4130241 10nF 20% 63V
C6 4201082 100yF -10+100% C51 4130404 1,8nF 10% 1500V
40V C52 4200512 lyF 20% 50V
C7 4010105 1nF 10% 63V C53 4130029 470nF 10% 250V
C8 4130136 1yF 20% 100V C54- 4201082 100puF -10+100%
cg 4200760 220uF -10+50% 16V 40V
* 4010123 InF 10% 500V C56
C10 4010105 inF 10% 63V C58 4130234 470nF 10% 63V
* 4130308 220nF 10% 63V C59 4200515 4,7yF 20% 25V
Cll 4200395 470uF -20+50% 16V C60 4010103 2,2nF 10% 63V
* 4130404 1,8nF 10% 1500V C61- 4200617 47yF 20% 10V
C12 4200525 22uF 20% 10V C62
* 4200760 220yF 20% 16V C63 4130313 470nF 20% 63V
C13 4130241 10nF 20% 63V C64 4200525 22yF 20% 10V
C14 4200512 1pF 20% 50V C65 4200559 3300uF -10+50%
C17 4130372 6,8nF 20% 400V 40V
C18 4130081 10nF 20% 250V C66- 4130233 220nF 20% 63V
C19 4130323 6,8nF 5% 1500V C67
C20 4130325 18nF 5% 63V C68 4200515 4,7pF 20% 25V
C21 4130349 300nF 5% 250V C69 4010103 2,2nF 10% 63V
C22 4130326 560nF 5% 250V C70- 4200617 47pF 20% 10V
C23- 4200525 22uF 20% 10V C71
C24 C72 4200559 3300uF -10+50%
C25 4130307 150nF 10% 63V 40V
C26 4130234 470nF 10% 63V C73- 4130233 220nF 20% 63V
C27 4200515 4,7uF 20% 25V C74
C28 4200510 10yF 20% 16V C75 4010107 22nF -20+80% 40V
C29 4130230 100nF 20% 63V C76 4100289 2,7nF 1% 63V
C30 4130303 15nF 10% 63V C85 4130308 220nF 10% 63V
C31- 4130241 10nF 20% 63V C86- 4000243 100pF 5% 63V
C32 C87
C33 4130230 100nF 20% 63V C90 4130230 100nF 20% 63V
C36 4130230 100nF 20% 63V C93 4010111 3,3nF 10% 63V
C37 4130241 10nF 20% 63V C94 4000243 100pF 5% 63V
C39 4130230 100nF 20% 63V C95 4010128 470pF 10% 50V
C40 4200616 6,8uF 20% 25V C96 4200628 100pF 20% 16V
C41 4200517 2,2uF 20% 50V C97 4130103 100nF 20% 250V
C42 4200508 22uF 20% 25V C98 4130230 100nF 20% 63V
C44 4130313 470nF 20% 63V C99 4010106 10nF -20+80% 40V
Li 6850195 Coil 1,3yH L4 8024046 Trafo coil
L2 8020564 Coil 160y-200p- L5 8020660 Coil 100HH
10pH L8- 6850214 Coil 0,8ypH
L3 8024045 Coil L9
RL1 7600098 Relay 9V
Si 8020325 Coil 10yH
Ti 8014094 Trafo T3 8014102 Trafo
T2 8014074 Trafo
