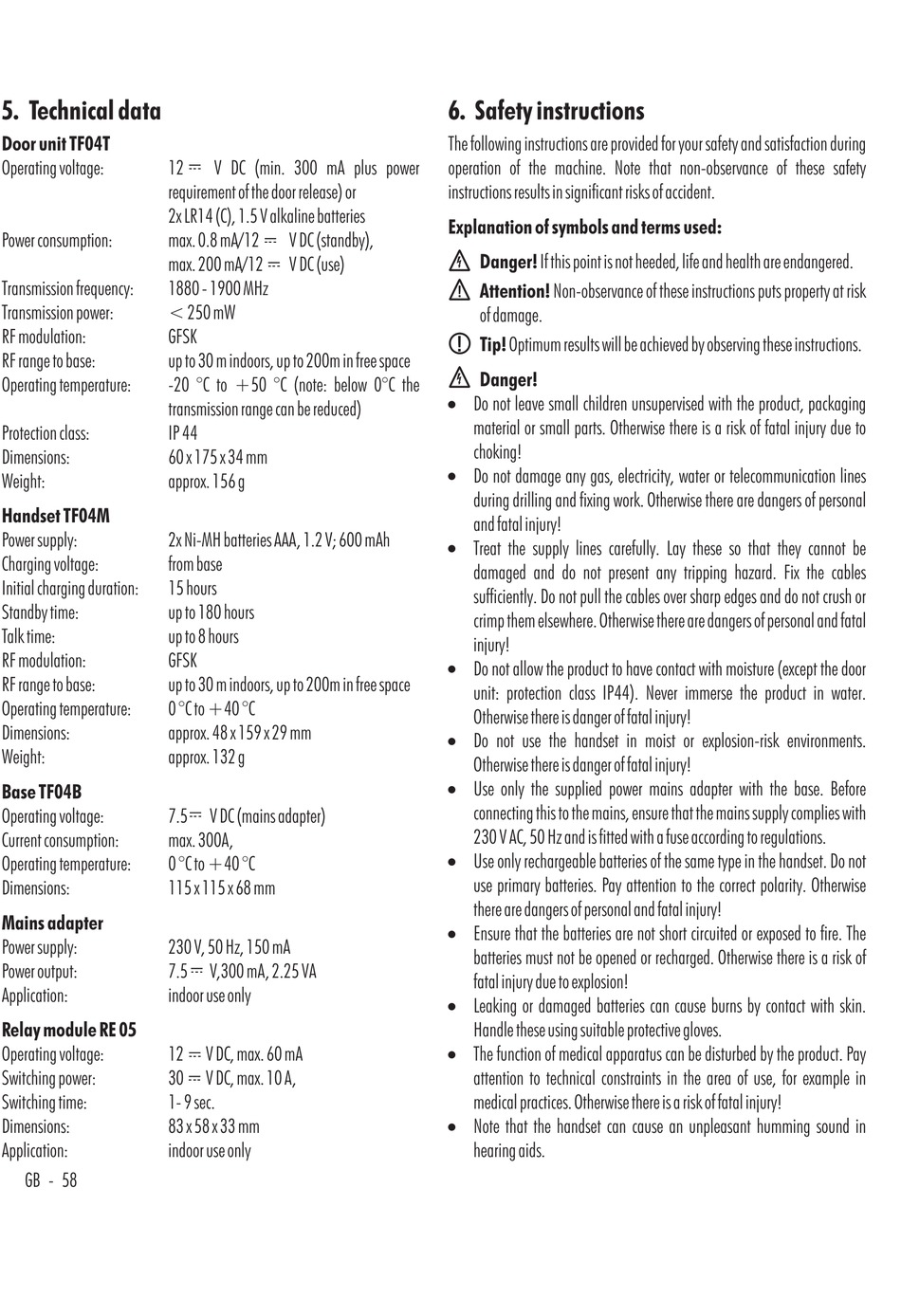

5. Technical data

Door unit TF04T
Operating voltage:
Power consumption:
Transmission frequency:
Transmission power:
RF modulation:
RF range to base:
Operating temperature:
Protection class:
Dimensions:
Weight:
Handset TF04M
Power supply:
Charging voltage:
Initial charging duration:
Standby time:
Talk time:
RF modulation:
RF range to base:
Operating temperature:
Dimensions:
Weight:
Base TF04B
Operating voltage:
Current consumption:
Operating temperature:
Dimensions:

Mains adapter

Power supply:
Power output:
Application:
Relay module RE 05
Operating voltage:
Switching power:
Switching time:
Dimensions:
Application:
GB - 58
12 V DC (min. 300 mA plus power
requirement of the door release)
2x LR14 (C), 1.5 V alkaline batteries
max. 0.8 mA/12 V DC (standby),
max. 200 mA/12 V DC (use)
1880 - 1900 MHz
< 250 mW
GFSK
up to 30 m indoors, up to 200m in free space
-20 °C to +50 °C (note: below 0°C the
transmission range can be reduced)
IP 44
60 x 175 x 34 mm
approx. 156 g
2x Ni-MH batteries AAA, 1.2 V; 600 mAh
from base
15 hours
up to 180 hours
up to 8 hours
GFSK
up to 30 m indoors, up to 200m in free space
0 °C to +40 °C
approx. 48 x 159 x 29 mm
approx. 132 g
7.5 V DC (mains adapter)
max. 300A,
0 °C to +40 °C
115 x 115 x 68 mm
230 V, 50 Hz, 150 mA
7.5 V,300 mA, 2.25 VA
indoor use only
12 V DC, max. 60 mA
30 V DC, max. 10 A,
1- 9 sec.
83 x 58 x 33 mm
indoor use only

6. Safety instructions

The following instructions are provided for your safety and satisfaction during
operation of the machine. Note that non-observance of these safety
or instructions results in significant risks of accident.
Explanation of symbols and terms used:
Danger!
Attention!
of damage.
Tip! Optimum results will be achieved by observing these instructions.
Danger!
!
Do not leave small children unsupervised with the product, packaging
material or small parts. Otherwise there is a risk of fatal injury due to
choking!
!
Do not damage any gas, electricity, water or telecommunication lines
during drilling and fixing work. Otherwise there are dangers of personal
and fatal injury!
!
Treat the supply lines carefully. Lay these so that they cannot be
damaged and do not present any tripping hazard. Fix the cables
sufficiently. Do not pull the cables over sharp edges and do not crush or
crimp them elsewhere. Otherwise there are dangers of personal and fatal
injury!
!
Do not allow the product to have contact with moisture (except the door
unit: protection class IP44). Never immerse the product in water.
Otherwise there is danger of fatal injury!
!
Do not use the handset in moist or explosion-risk environments.
Otherwise there is danger of fatal injury!
!
Use only the supplied power mains adapter with the base. Before
connecting this to the mains, ensure that the mains supply complies with
230 V AC, 50 Hz and is fitted with a fuse according to regulations.
!
Use only rechargeable batteries of the same type in the handset. Do not
use primary batteries. Pay attention to the correct polarity. Otherwise
there are dangers of personal and fatal injury!
!
Ensure that the batteries are not short circuited or exposed to fire. The
batteries must not be opened or recharged. Otherwise there is a risk of
fatal injury due to explosion!
!
Leaking or damaged batteries can cause burns by contact with skin.
Handle these using suitable protective gloves.
!
The function of medical apparatus can be disturbed by the product. Pay
attention to technical constraints in the area of use, for example in
medical practices. Otherwise there is a risk of fatal injury!
!
Note that the handset can cause an unpleasant humming sound in
hearing aids.
If this point is not heeded, life and health are endangered.
Non-observance of these instructions puts property at risk
