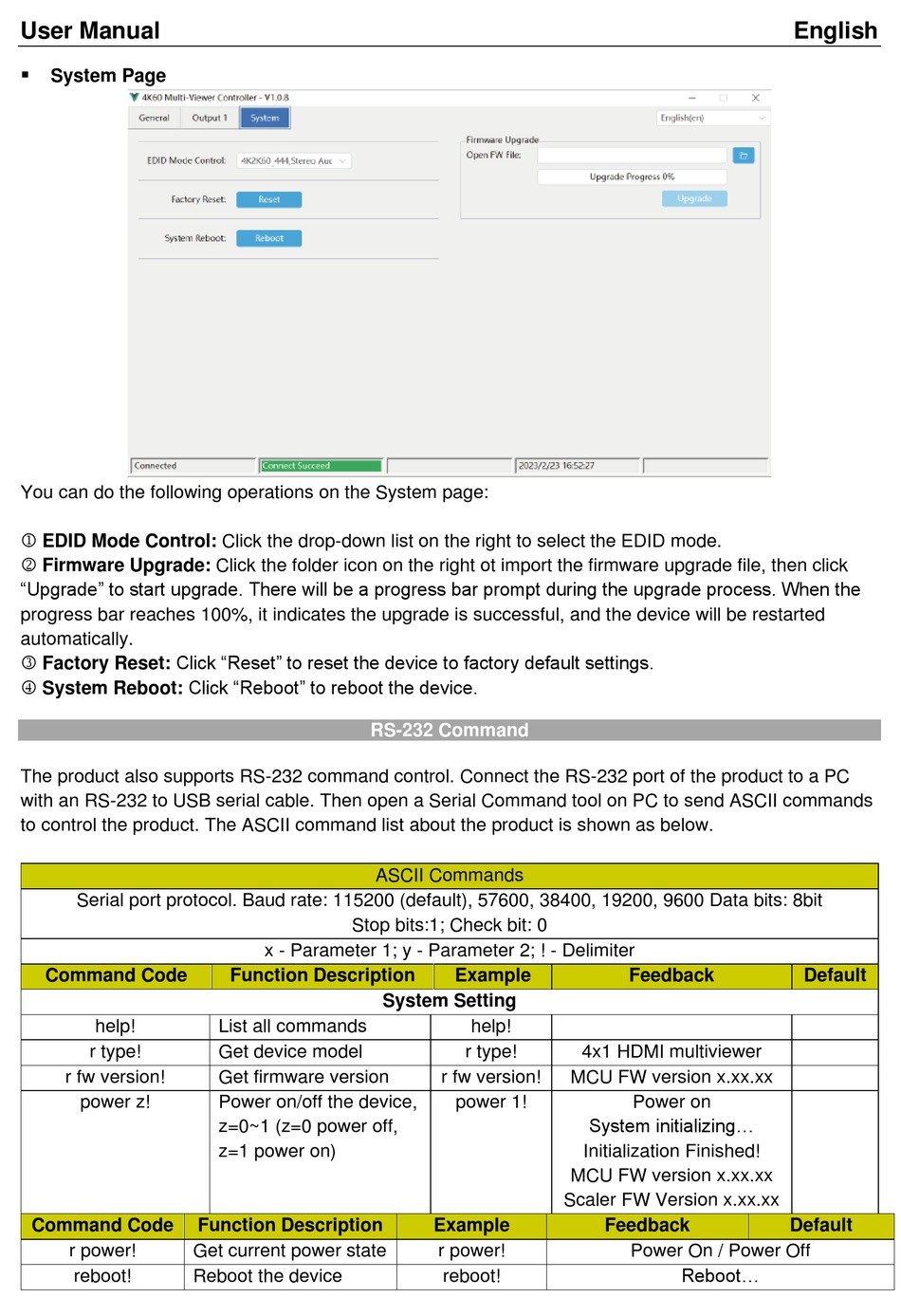

Lindy 38228 Benutzerhandbuch Seite 13

User Manual
▪
System Page
You can do the following operations on the System page:
 EDID Mode Control: Click the drop-down list on the right to select the EDID mode.
 Firmware Upgrade: Click the folder icon on the right ot import the firmware upgrade file, then click
"Upgrade" to start upgrade. There will be a progress bar prompt during the upgrade process. When the
progress bar reaches 100%, it indicates the upgrade is successful, and the device will be restarted
automatically.
 Factory Reset: Click "Reset" to reset the device to factory default settings.
 System Reboot: Click "Reboot" to reboot the device.
The product also supports RS-232 command control. Connect the RS-232 port of the product to a PC
with an RS-232 to USB serial cable. Then open a Serial Command tool on PC to send ASCII commands
to control the product. The ASCII command list about the product is shown as below.
Serial port protocol. Baud rate: 115200 (default), 57600, 38400, 19200, 9600 Data bits: 8bit
Command Code
help!
r type!
r fw version!
power z!
Command Code
r power!
reboot!
Stop bits:1; Check bit: 0
x - Parameter 1; y - Parameter 2; ! - Delimiter
Function Description
List all commands
Get device model
Get firmware version
Power on/off the device,
z=0~1 (z=0 power off,
z=1 power on)
Function Description
Get current power state
Reboot the device
RS-232 Command
ASCII Commands
Example
System Setting
help!
r type!
r fw version!
power 1!
Example
r power!
reboot!
Feedback
4x1 HDMI multiviewer
MCU FW version x.xx.xx
Power on
System initializing...
Initialization Finished!
MCU FW version x.xx.xx
Scaler FW Version x.xx.xx
Feedback
Power On / Power Off
Reboot...
