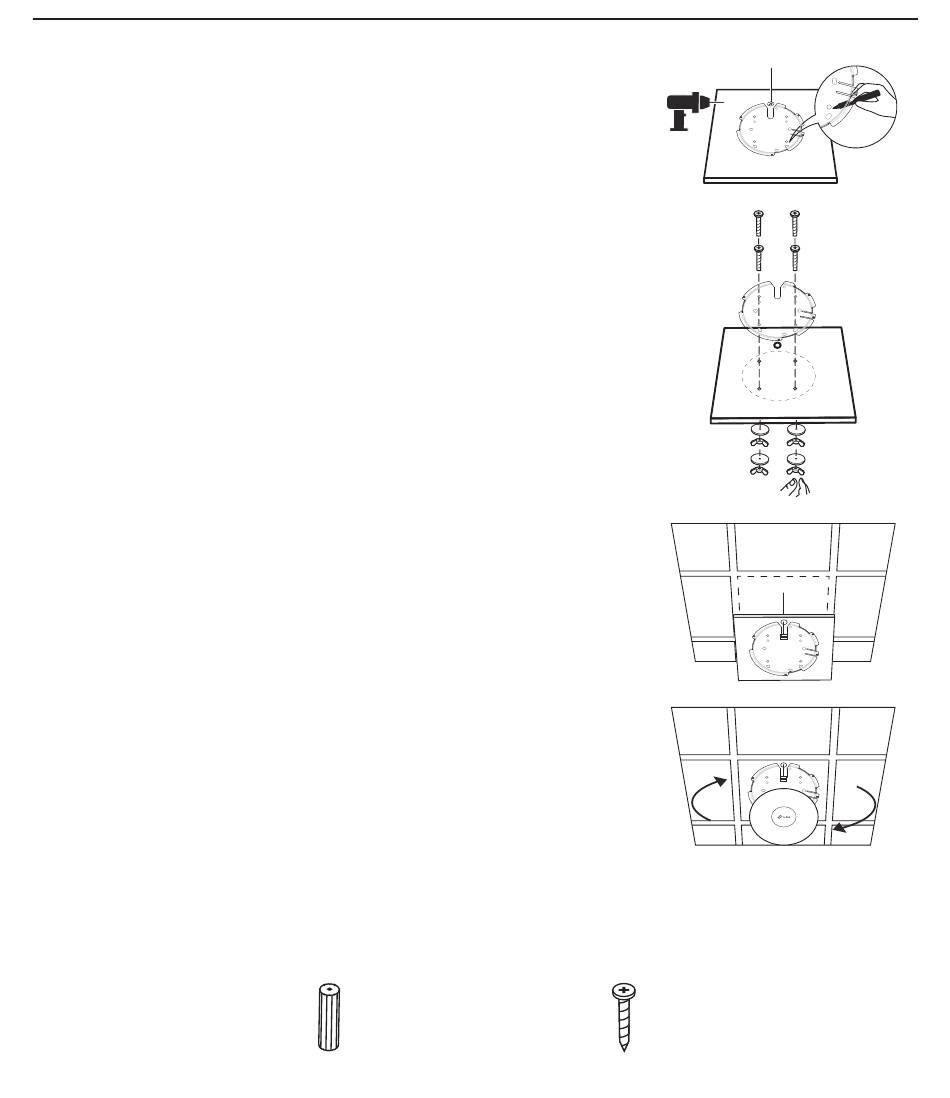

Place the mounting bracket in the center of the ceiling tile�
Mark positions for the screw holes and a position for the
2
Ethernet cable hole� Drill 4 mm diameter holes for the screws
and a 25 mm diameter hole for the Ethernet cable at the
marked positions�
3
Secure the mounting bracket to the ceiling tile using pan-head
screws, washers and wing nuts�
4
Feed the Ethernet cable through the hole and set the ceiling
tile back into place�
Connect the Ethernet cable to the Ethernet port� Attach the
5
AP to the mounting bracket by aligning the arrow mark on the
AP with the arrow mark on the mounting bracket, then rotate
the AP until it is locked into place�
■ Option 2: Wall Mounting
Follow the steps below to install the AP with the provided accessories:
Note: The mounting bracket and the accessories (quantity and size) may vary by product�
Plastic Wall Anchors Self-tapping Screws
6
Hole for Ethernet cable
