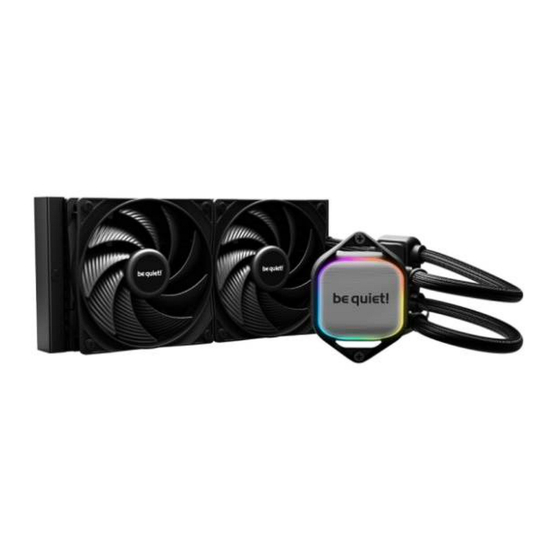

Uputstvo za upotrebu (EN) Be Quiet Silent Loop 2 BW011 vodeno hlađenje Tehnoteka je online destinacija za upoređivanje cena i karakteristika bele tehnike, potrošačke elektronike i IT uređaja kod trgovinskih lanaca i internet prodavnica u Srbiji. Naša stranica vam omogućava da istražite najnovije informacije, detaljne karakteristike i konkurentne cene proizvoda.
Seite 3
120mm 240mm www.bequiet.com/bw009 www.bequiet.com/bw010 280mm 360mm www.bequiet.com/bw011 www.bequiet.com/bw012 » Product information for this CPU cooler » Produktinformationen zu diesem CPU-Kühler » Informations produit pour ce système de refroidissement » Información del producto para este refrigerador de CPU » Informacje produktowe dla tego coolera CPU »...
Seite 4
Introduction: Thank you for deciding to purchase a be quiet! Einleitung: Vielen Dank, dass Sie sich für ein be quiet! product. The following instructions will guide you through the Produkt entschieden haben. Diese Anleitung wird Ihnen beim installation process. If you do encounter installation problems, Installationsprozess behilflich sein.
Seite 5
SCOPE OF DELIVERY / LIEFERUMFANG Name Quantity be quiet! Silent Loop 2 CPU cooler be quiet! Silent Loop 2 CPU Kühler 120mm: 2 Fans 240mm / 280mm: 2 Lüfter 360mm: 3 Intel backplate Intel Backplate Intel mounting brackets Intel Montagebrücken Intel mounting brackets LGA 1700 Intel Montagebrücken LGA 1700 Short AMD mounting brackets...
Seite 7
AMD: AM5 / AM4 The following parts are needed for this: Silent Loop 2 CPU cooler (1), fans (2), short AMD mounting brackets (6), AMD spacer nuts (9), AMD backplate screws (12), radiator mounting screws (13), fan mounting screws (14), thermal paste (16), Y-cable (19) Es werden folgende Bauteile benötigt: Silent Loop 2 CPU Kühler (1), Lüfter (2), kurze AMD Montagebrücken (6), AMD Abstandsbolzen...
Seite 8
Place the four AMD spacer nuts over the bolt Platzieren Sie über die Vorderseite die vier threads of the backplate on the front side and AMD Abstandsbolzen über den Gewinden der fix both the AMD mounting brackets using the Backplate und fixieren die beiden kurzen AMD AMD backplate screws.
Seite 9
AMD: AM5 / AM4 Mounting the fans on the radiator Befestigung der Lüfter am Radiator Affix the fans to the radiator with the fan mounting Befestigen Sie die Lüfter mit den Lüfter screws. An installation in a push configuration Befestigungsschrauben Radiator.
Seite 10
Affixing the radiator to the case Befestigung des Radiators am Gehäuse Fix the radiator of Silent Loop 2 with the radiator Befestigen Sie den Radiator der Silent Loop 2 mounting screws to the case. You can use a mit den Radiator Befestigungsschrauben am normal crosshead screwdriver for this.
Seite 11
AMD: AM5 / AM4 Mounting of the CPU block Montage des CPU-Blocks First peel off the protective film from the underside Entfernen Sie zunächst die Schutzfolie von of the cooler. Apply thermal paste on the CPU der Unterseite des Kühlers. Tragen Sie die surface.
Seite 12
Place the CPU block centrally over the short Legen Sie den CPU-Block mittig auf die AMD mounting brackets, such that these allow kurzen AMD Montagebrücken, sodass sich the CPU block to be screwed down. For this you der CPU-Block mit selbigen verschrauben can use a normal crosshead screwdriver.
Seite 13
Intel LGA 1700 / 1200 / 1150 / 1151 / 1155 The following parts are needed for this: Silent Loop 2 CPU cooler (1), fans (2), Intel Backplate (3), Intel mounting brackets (4), Intel mounting brackets LGA 1700 (5), Intel spacer nut B (8), Mounting bracket fastening screws (10), Intel backplate screws (11), Radiator mounting screws (13), Fan mounting screws (14), O-Rings (15), Thermal paste (16), Y-cable (19) Es werden folgende Bauteile benötigt:...
Seite 14
Installation of the mounting bridges Installation der Montagebrücken Screw the Intel spacer nut B onto the Schrauben Intel Gewindebolzen previously positioned Intel backplate. Then auf die zuvor platzierte Intel Backplate. position, depending on your socket, the Intel Dann positionieren Sie abhängig von Ihrem mounting brackets or Intel mounting brackets Sockel die Intel Montagebrücken oder Intel LGA 1700 over the Intel spacer nut B and affix...
Seite 15
Intel LGA 1700 / 1200 / 1150 / 1151 / 1155 Mounting the fans on the radiator Befestigung der Lüfter am Radiator Affix the fans to the radiator with the fan Befestigen Sie die Lüfter mit den Lüfter mounting screws. An installation in a push Befestigungsschrauben Radiator.
Seite 16
Affixing the radiator to the case Befestigung des Radiators am Gehäuse Fix the radiator of Silent Loop 2 with the radiator Befestigen Sie den Radiator der Silent Loop 2 mounting screws to the case. You can use a mit den Radiator Befestigungsschrauben am normal crosshead screwdriver for this.
Seite 17
Intel LGA 1700 / 1200 / 1150 / 1151 / 1155 Mounting of the CPU block Montage des CPU-Blocks First peel off the protective film from the underside Entfernen Sie zunächst die Schutzfolie von of the cooler. Apply thermal paste on the CPU der Unterseite des Kühlers.
Seite 18
Place the CPU block centrally over the Intel Legen Sie den CPU-Block mittig auf die Intel mounting brackets or Intel mounting brackets Montagebrücken oder Intel Montagebrücken LGA 1700, such that these allow the CPU LGA 1700, sodass sich der CPU-Block mit block to be screwed down.
Seite 19
Intel LGA 2011(-3) square ILM / LGA 2066 The following parts are needed for this: Silent Loop 2 CPU cooler (1), fans (2), Intel mounting brackets (4), Intel spacer nut A (7), Mounting bracket fastening screws (10), Radiator mounting screws (13), Fan mounting screws (14), Thermal paste (16), Y-cable (19) Es werden folgende Bauteile benötigt: Silent Loop 2 CPU Kühler (1), Lüfter (2), Intel Montagebrücken (4), Intel Gewindebolzen A (7),...
Seite 20
Mounting the fans on the radiator Befestigung der Lüfter am Radiator Affix the fans to the radiator with the fan Befestigen Sie die Lüfter mit den Lüfter mounting screws. An installation in a push Befestigungsschrauben Radiator. configuration (120mm: push pull) is being Empfohlen wird die Installation in einer Push- recommended, as shown in the picture.
Seite 21
Intel LGA 2011(-3) square ILM / LGA 2066 Affixing the radiator to the case Befestigung des Radiators am Gehäuse Fix the radiator of Silent Loop 2 with the radiator Befestigen Sie den Radiator der Silent Loop 2 mounting screws to the case. You can use a mit den Radiator Befestigungsschrauben am normal crosshead screwdriver for this.
Seite 22
Mounting of the CPU block Montage des CPU-Blocks First peel off the protective film from the Entfernen Sie zunächst die Schutzfolie von underside of the cooler. Apply thermal paste on der Unterseite des Kühlers. Tragen Sie die the CPU surface. The tube contains enough for Wärmeleitpaste auf die CPU-Oberfläche auf.
Seite 23
Intel LGA 2011(-3) square ILM / LGA 2066 Place the CPU block centrally over the Intel Legen Sie den CPU-Block mittig auf die Intel mounting brackets, such that these allow the Montagebrücken, sodass sich der CPU-Block CPU block to be screwed down. For this you mit selbigen verschrauben lässt.
Seite 24
RECOMMENDED INSTALLATION / EMPFOHLENE EINBAUPOSITION...
Seite 25
ILLUMINATION / BELEUCHTUNG Synchronization of ARGB illumination with Synchronisation der ARGB Beleuchtung the motherboard mit dem Mainboard Silent Loop 2 enables you to synchronize the Die Silent Loop 2 bietet Ihnen die Möglichkeit, ARGB illumination directly via your motherboard. die ARGB-Beleuchtung über Ihr Mainboard To do that switch off your system prior to zu synchronisieren.
Seite 26
ILLUMINATION / BELEUCHTUNG Next Yellow Illumination effect Previous Orange Color Select mode Green Speed Blue Brightness Special effects RGB control via ARGB controller RGB-Steuerung mit dem ARGB-Controller You can optionally control the ARGB illumination Sie können die ARGB-Beleuchtung optional über via the ARGB controller.
Seite 27
ILLUMINATION / BELEUCHTUNG Switching logo illumination on/off Logo Beleuchtung an-/ ausschalten Insert ON/OFF tool in the slot to switch Führen Sie die ON/OFF Nadel in die dafür illumination of the logo of be quiet! on and off. vorgesehene Öffnung des Pumpengehäuses ein, um die Beleuchtung des be quiet! Logos ein- und auszuschalten.
Seite 28
REFILLING THE SYSTEM / NACHFÜLLEN DES SYSTEMS Vorsicht: Nutzen Sie zum Nachfüllen Caution: For refilling only use the ausschließlich mitgelieferte included coolant bottle. Coolants not Kühlflüssigkeit. Kühlmittel nicht specifically meant for this product may speziell auf dieses Produkt abgestimmt damage the unit. wurden können Produkt...
Seite 29
TROUBLESHOOTING Insufficient cooling performance Ensure the CPU block is mounted as described Make sure that no tubes or cables come into ■ ■ in the instructions. Use only the mounting contact with fans in the case. Bubbles of air equipment supplied with the unit. may have become trapped in the pump’s impeller during transportation.
Seite 30
FEHLERBEHEBUNG Unzureichende Kühlleistung Der Radiator muss an einer geeigneten ■ Bitte montieren Sie den CPU-Block wie im ■ Stelle montiert sein, um Schwingungen des Handbuch beschrieben. Nutzen Sie dazu Gehäuses sowie starke Luftverwirbelungen ausschließlich beiliegende Montage- zu vermeiden. Bitte beachten Sie hierzu die material.
Seite 31
LIMITED WARRANTY I. APPLICABILITY This non-transferable warranty is applicable to 5. be quiet!, Inc. does not warrant that this newly purchased, previously unopened be quiet! product will meet your requirements. It is your products and is enforceable by only the original responsibility to determine the suitability of this consumer purchaser.
