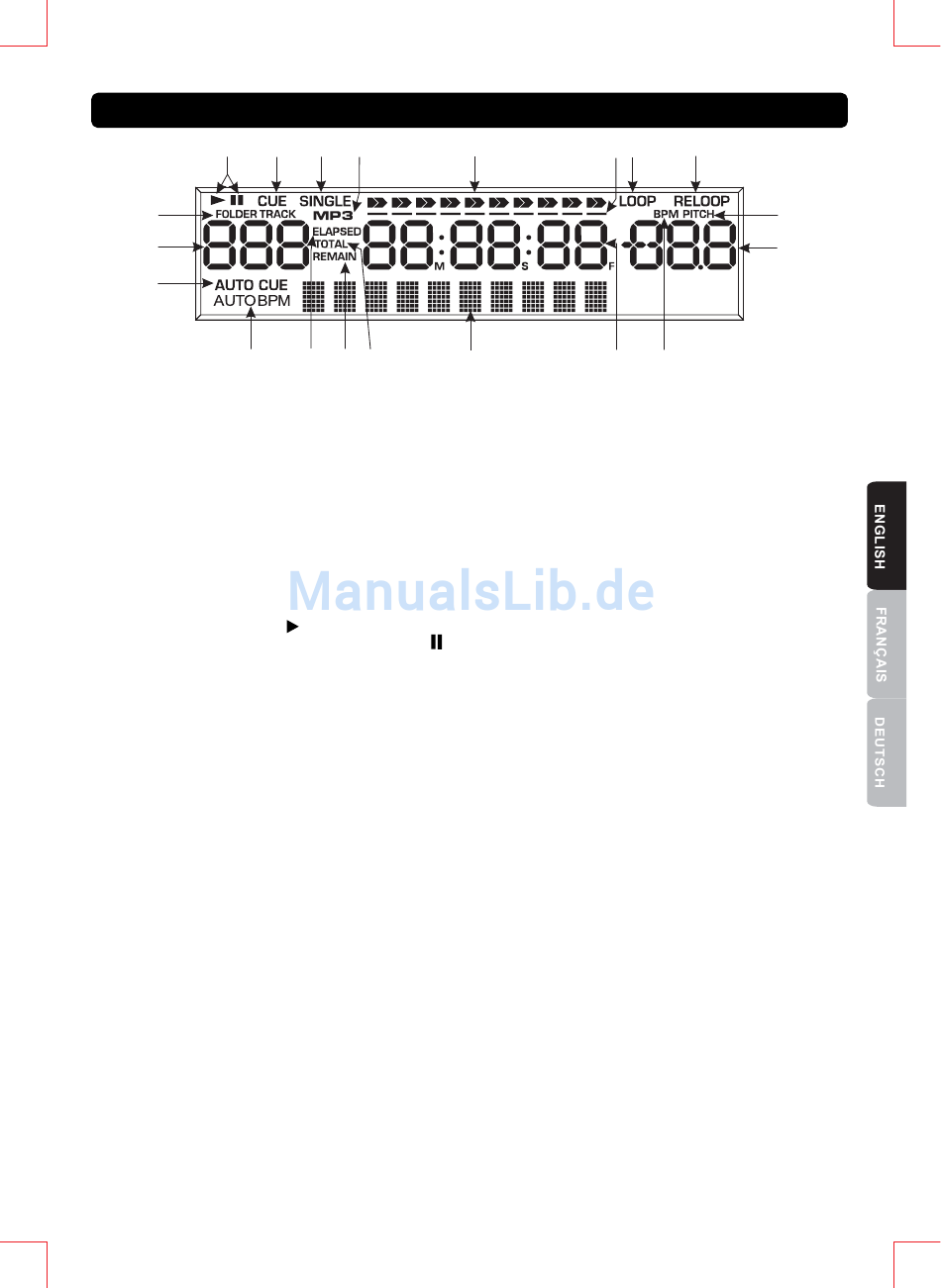

LCD DISPLAY PANEL

4
3
2
1
20
1. AUTO CUE－This will indicate if the Auto Cue
is on or off. Press and hold the SGL/CTN for 1
sec. to turn the Auto Cue function on and off.
2. TRACK INDICATOR－This 3-digit indicator
details a current track. The number displayed
in the track indicator is a direct reference to a
track being selected a track in play, pause, or
cue mode.
3. FOLDER/TRACK INDICATOR－This indicator
shows you if you are looking at the track
number or the folder number.
4. PLAY / PAUSE INDICATOR－When the unit
is in play mode the " " indicator will glow,
when the drive is in pause mode the "
indicator will glow.
5. CUE INDICATOR－This indicator will glow
when the unit is in CUE mode and will flash
every time a new CUE POINT is set.
6. SINGLE INDICATOR－This indicates that the
CD drive is in single play mode, the track will
play once and return to CUE mode. If the
single indicator is not on the unit is in
continuous mode the drive will play all the
remaining tracks on the disc until you stop it
or power is interrupted.
7. MP3 INDICATOR－This will indicate that a
Mp3 disc is loaded in the drive.
8. TIME BAR INDICATOR－This bar gives a
visual approximation of a track's or disc's
remaining time. This bar will begin to flash
when a CD is ending or a track.
9. ANTI SHOCK & CUE MEMORY BUFFER
INDICATOR － The
represented on the display by the line bar
being filled or emptied. The first bar itself
represents 5 seconds of cue memory buffer.
And following bar each represents 1 second
of anti shock protection. There are more than
9 seconds of anti shock available when the
bar line is being filled.
6
5 7
19 18 17
"
memory status is
8
9 10
16 15
10. LOOP INDICATOR－Appears when the CD is
repeating a particular area with the music on
the CD.
11. RELOOP INDICATOR －Appears when the
CD has had a loop set previously and can go
back to loop again.
12. PITCH INDICATOR－Indicator will light up
when the Pitch is activated.
13. BPM / PITCH METER －Shows either the
percentage change in pitch or the BPM of the
song. The meter will display either the BPM's
of the current track or the pitch percentage
applied by the PITCH SLIDER.
14. BPM INDICATOR － Indicator will light up
when TAP/BPM button is engaged.
15. TIME DISPLAY－These indicators detail the
Minutes, Seconds, and Frames. The meter
will display either the elapsed time, or
remaining time of a track. The time displayed
in the meter will directly reflect the time
indicator.
16. CHARACTER DISPLAY － This will display
the name of the file, artist, and title when a
Mp3 disc is loaded.
17. TOTAL REMAIN INDICATOR－When "TOTAL"
and "REMAIN" are indicated the TIME
DESCRIBED in the LCD will define the total
disc remaining time.
18. REMAIN INDICATOR－When "REMAIN" is
indicated in the LCD DISPLAY the TIME
DESCRIBED in the LCD will define the
current track's remaining time.
19. ELAPSED INDICATOR － It is for showing
time as it is taking place.
20. AUTO BPM－This will indicate that the AUTO
BPM counter is active.
