INSTRUCTION MANUAL
ENG

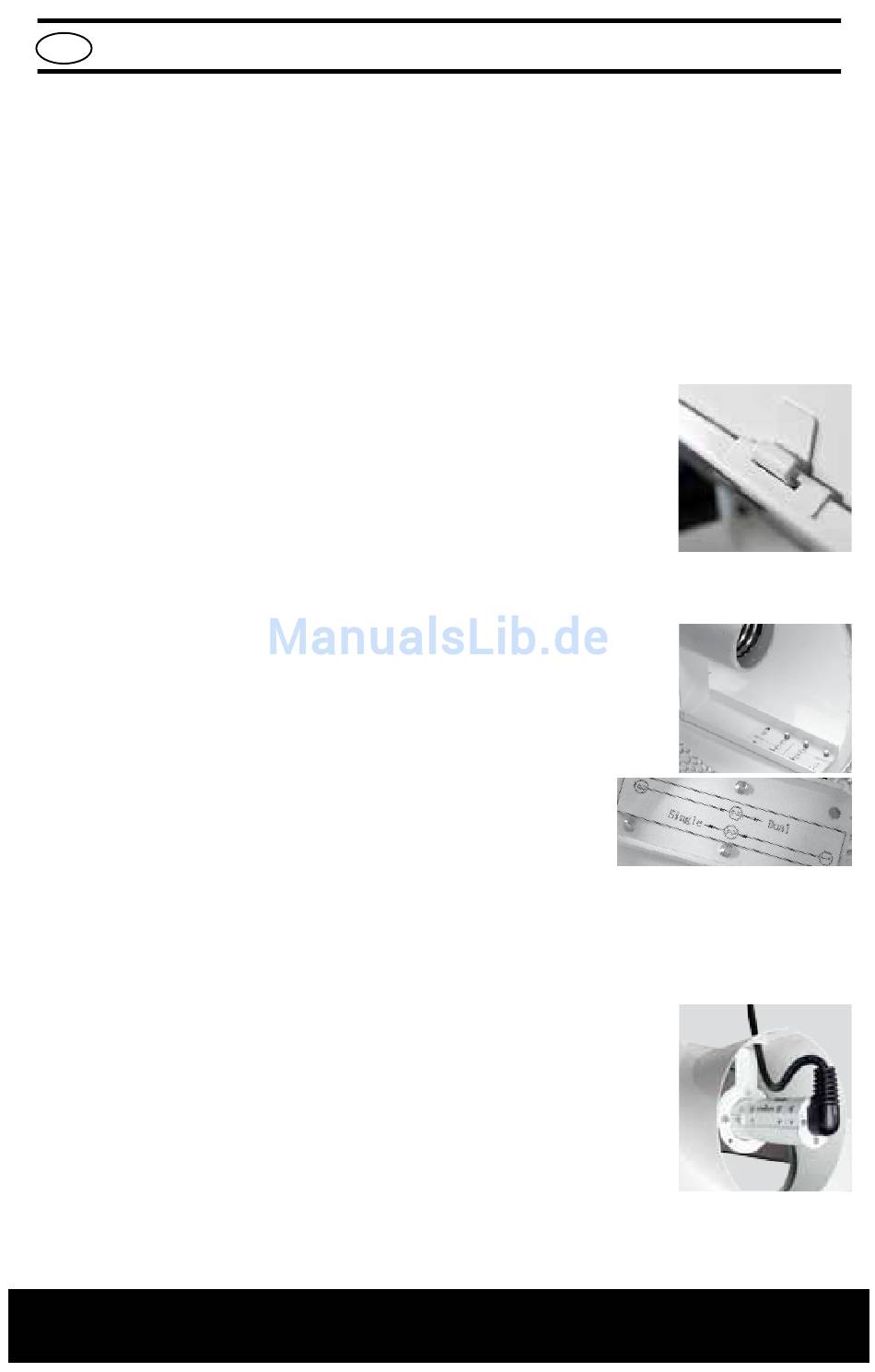

Hanging tHe RaptoR 8 Dual
1. Remove the Raptor 8 Dual from its packaging and set aside accompanying materials.
2. Locate the ceiling joist with a stud finder.
3. Screw an eyebolt or some other means of hanging the reflector securely from the
ceiling into the joist. Screw a second eyehook further down the joist to balance
hanging the reflector.
4. Attach a chain, rope, or other sturdy material to the eyehooks.
5. Secure the chain, rope, etc to the Raptor 8 Dual metal V-hook hangers.
6. Lift the reflector and ease it onto the metal V-hook hangers. Adjust height if
necessary.
7. Remove the two screws located on the lens frame.
8. Unclip the three latches on one of the long sides of the Raptor,
glass lens side up. Open the lens like a hinge. If desired, remove
the lens entirely from the chassis and set on a soft surface.
9. Determine whether to use the Raptor with a single or two bulbs.
Single BulB inStallation
1. Remove the two mounting brackets, which look like a U or
horseshoe, and cordsets from inside the Raptor 8 Dual flange
holes. Cordsets are packed separately in cardboard inside the
main reflector box. Set one aside.
2. Unscrew the all-system cordset from the U-shaped mounting
bracket. Remove the three screws from the cordset with a
flathead screwdriver.
3. Point the U shape in towards the center of the reflector –
use either flange.
4. Line up the 1 and 2 holes on the U-shaped mounting
bracket with the holes in the flange. Bolt the U-shaped mounting bracket inside the
flange with the supplied screws.
5. Attach the cordset to the mounting bracket with the flathead screws removed in step
2. The cordset collar may be adjusted if necessary for ideal lamp
placement in the reflector. Use the appropriate hole in the cordset
that will best center the bulb.
6. Screw in the light bulb.
7. Wipe residue off the bulb and the reflector with a clean, soft
cloth.
8. Secure the glass lens back into the chassis and reattach to the
ceiling.
9. Route cordset through white plastic square grommet to seal the cord to the cord slot.
