VBAR-RGBL - IP66 architectural projectors with 12/24 RGBL LEDs 50/100 W English

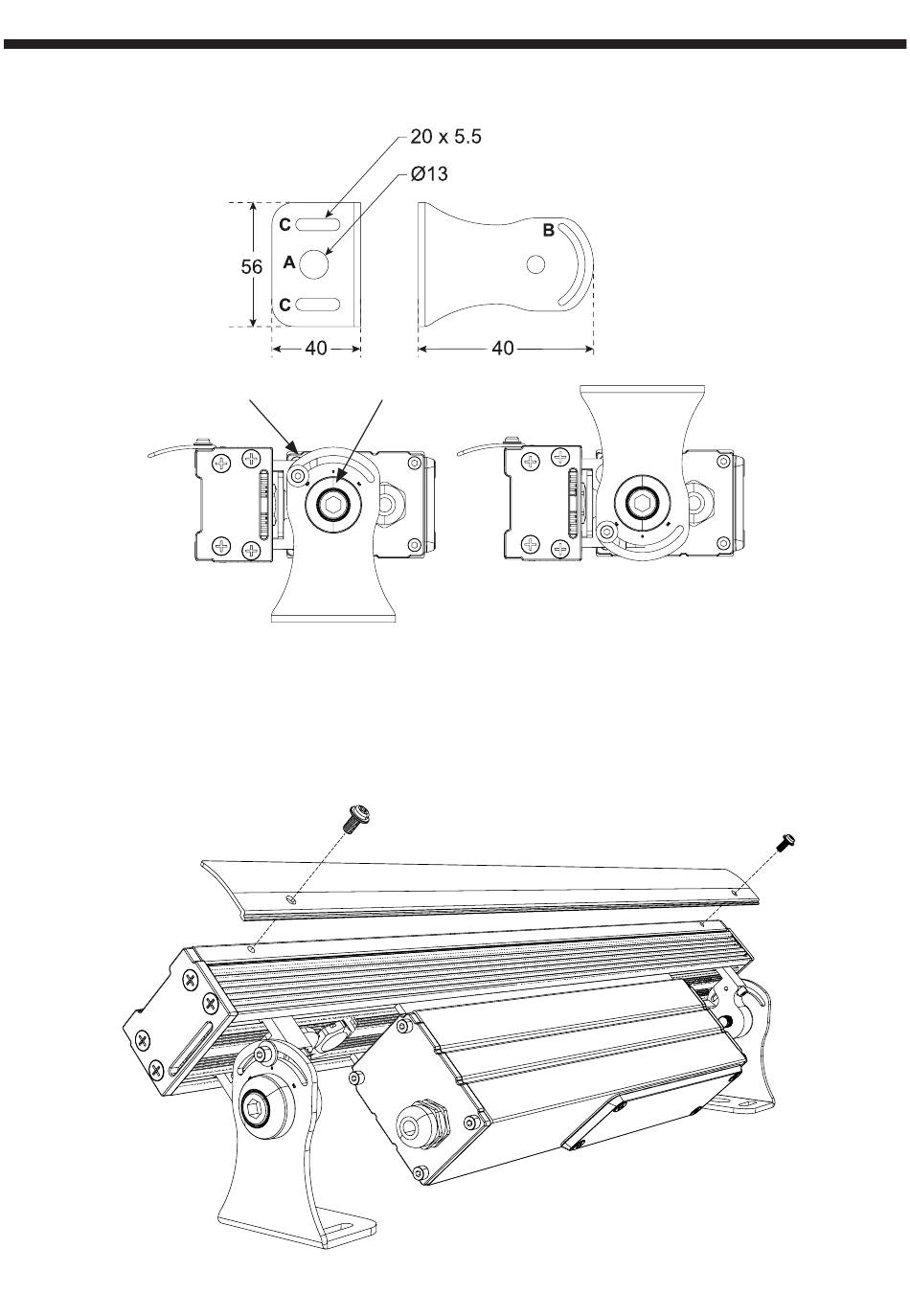

4 - Attaching the bracket and aiming the projector
Locking screw Central screw
The projector can be fixed on a suitable flat surface using three attachment points A C C. The notch B is used to lock the rotation of the projec-
tor in Pan over 180°.
Temporary hanging is possible using two clamps fixed through the external holes C.
To choose the tilt angle of your projector, loosen the central screw using a 6 mm Allen key and loosen the locking screw using a 2.5 mm Allen
key.
5 - Spoiler assembly
The spoiler is provided in the device packaging. It is fixed using 2 screws on the top of the projector. The example above illustrates the moun-
ting of the spoiler on the VBAR-50, the principle is the same for VBAR-100.
