Carson 50 060 6046 Bedienungsanleitung

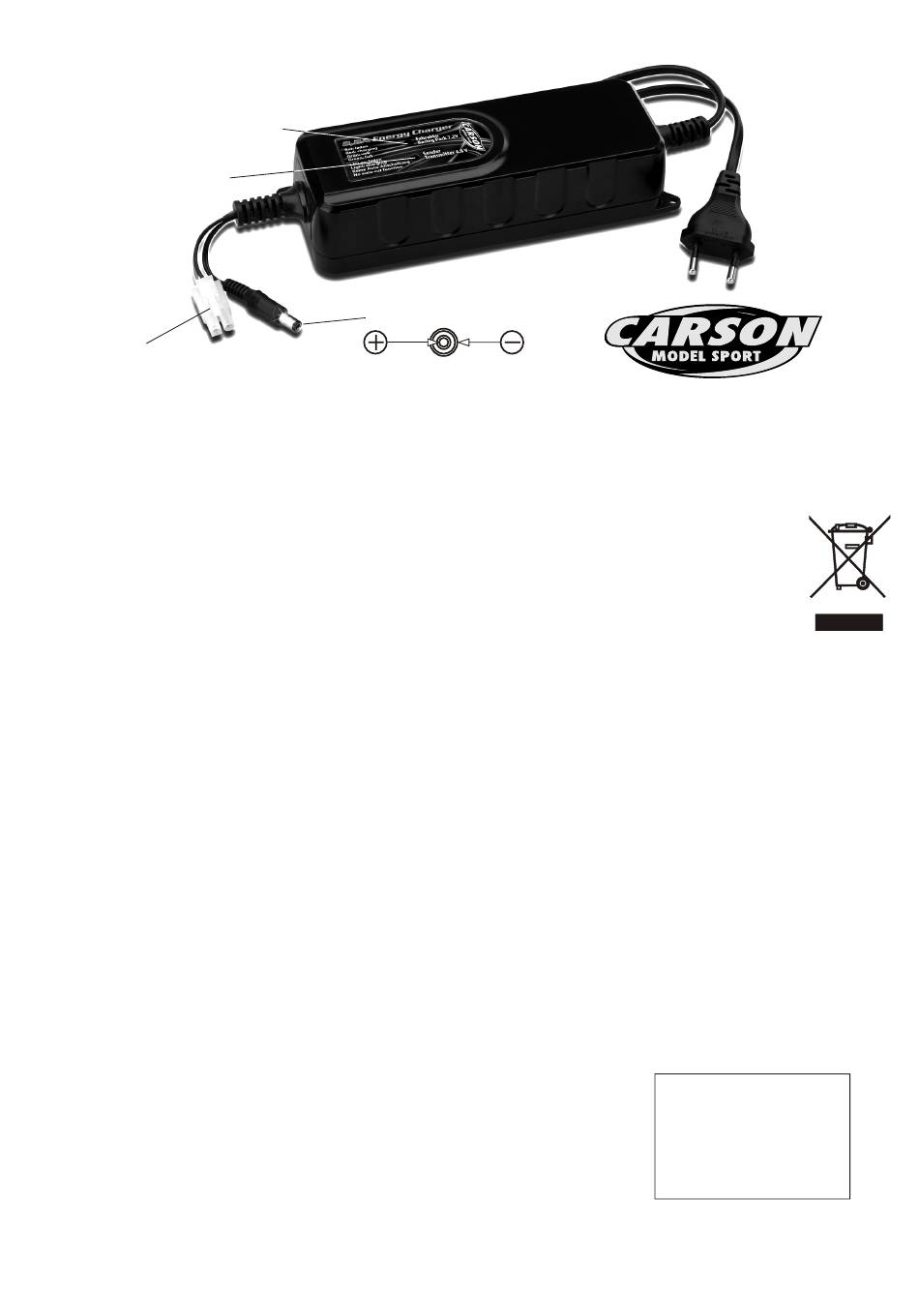

Charger unit art. nr. 50 060 6046
For charging transmitter and racing batteries
LED1 Racing Pack
LED2 Transmitter
battery / ies
(Tamiya-)
Charging plug
for Racing Pack 7,2V
Safety instructions
Please read the operating instructions before using the unit for
the first time.
Only use the unit in enclosed spaces.
Only for NiMH batteries.
Never attempt to recharge dry batteries.
Ensure that the battery's capacity matches the charging current
of the unit.
Keep small children away from the unit while charging.
Children should only operate the charger unit if supervised by an
adult.
Allow heated batteries to cool prior to charging.
If a battery becomes very hot (>40°C, battery poss. defective),
disconnect the power plug.
Never use the charger as a direct current supplier for electrical
appliances.
Rechargeable battery types
Racing pack 7,2Volt (1,2Vx6 cells, NiMH)
Transmitter battery/ies 4.8Volt
Charging process
Insert the power plug of the charger into a standard domestic
socket outlet. Connect the plug for charging the racing pack (6
cells) to the charger plug, pay attention to the connector force, do
not apply power.
Insert the plug for charging the transmitter battery/ies (4 cells)
into the charging socket of the transmitter.
The charging of both battery types can occur either individually or
simultaneously.
During the charging process, the charger unit will heat up slightly
• When charging the transmitter batteries (4 cells), the red
LED2 will light up.
• Once these are fully charged (batteries are getting warm),
remove the charger plug from the transmitter.
• When charging the racing pack (6 cells), the red LED1 will
light up.
Specifications
Input voltage AC voltage 230V 50Hz 38 W (max)
60mA max => 14W
Output voltage 1 13.1V +/- 15%
Output voltage 2 8.5V +/- 15%
Output current 1 2A +/- 10%
Output current 2 0.2A +/- 25%
Delta-peak cutoff 140mV max
Cutoff via timer 3hrs
Shorting fuse automatic
Trickle current 130mA max
Fuse Current strength 1.6A
