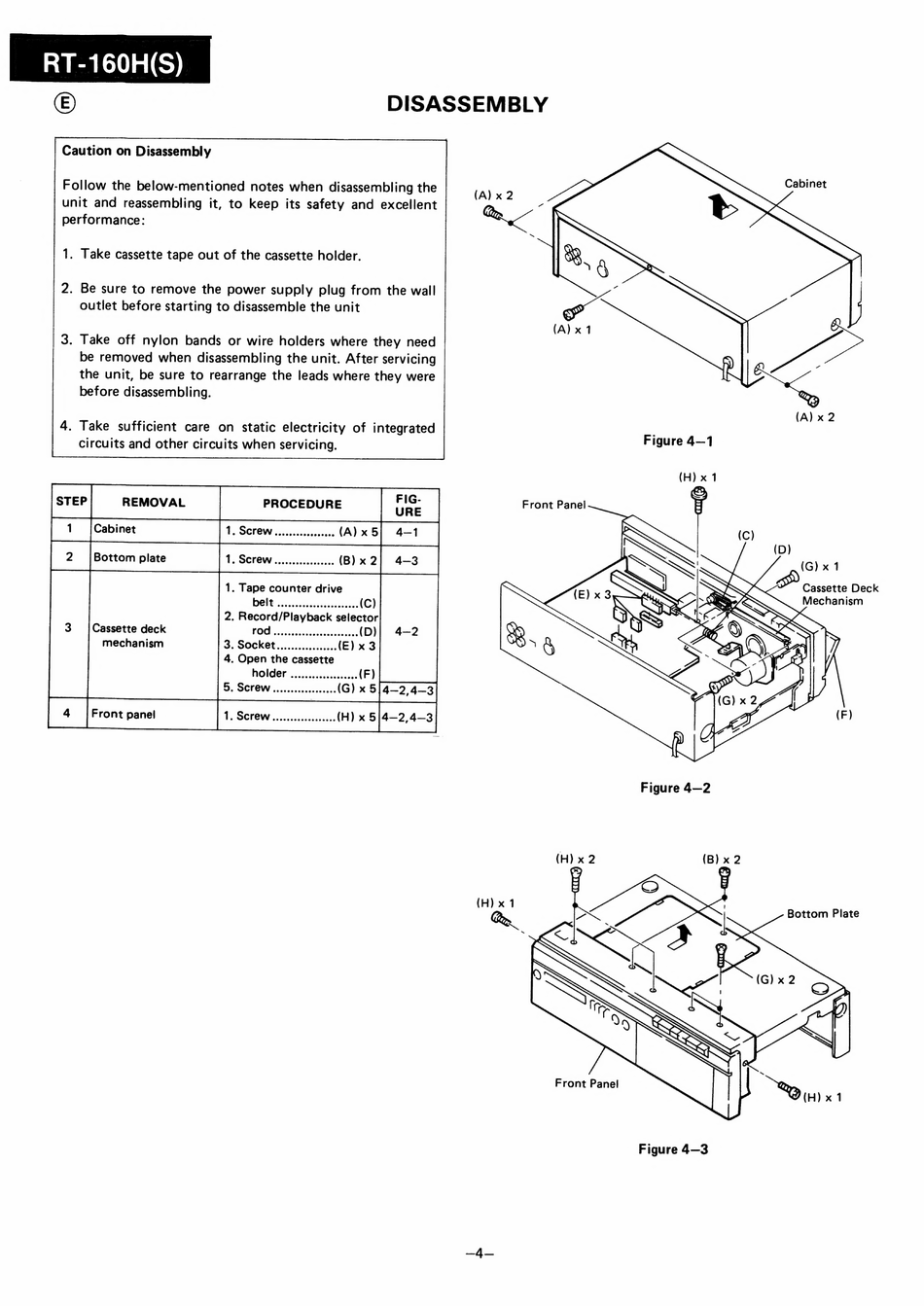

RT-160H(S)
Caution on Disassembly
Follow the below-mentioned notes when disassembling the
unit and reassembling
it, to keep its safety and excellent
performance:
1. Take cassette tape out of the cassette holder.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit
3. Take off nylon bands or wire holders where they need
be removed when disassembling the unit. After servicing
the unit, be sure to rearrange the leads where they were
before disassembling.
4. Take
sufficient care on static electricity of integrated
circuits and other circuits when servicing.
Cabinet
Bottom plate
Cassette deck
mechanism
re
Front panel
Cabinet
(A) x 2
&
>»
(A) x 1
ss
=)
oe
(
a4
(A) x2
Figure 4—1
(H) x1
Front Panel
(G)x 1
Cassette Deck
Mechanism
(H) x 2
Bottom Plate
Front Panel
Figure 4—3
