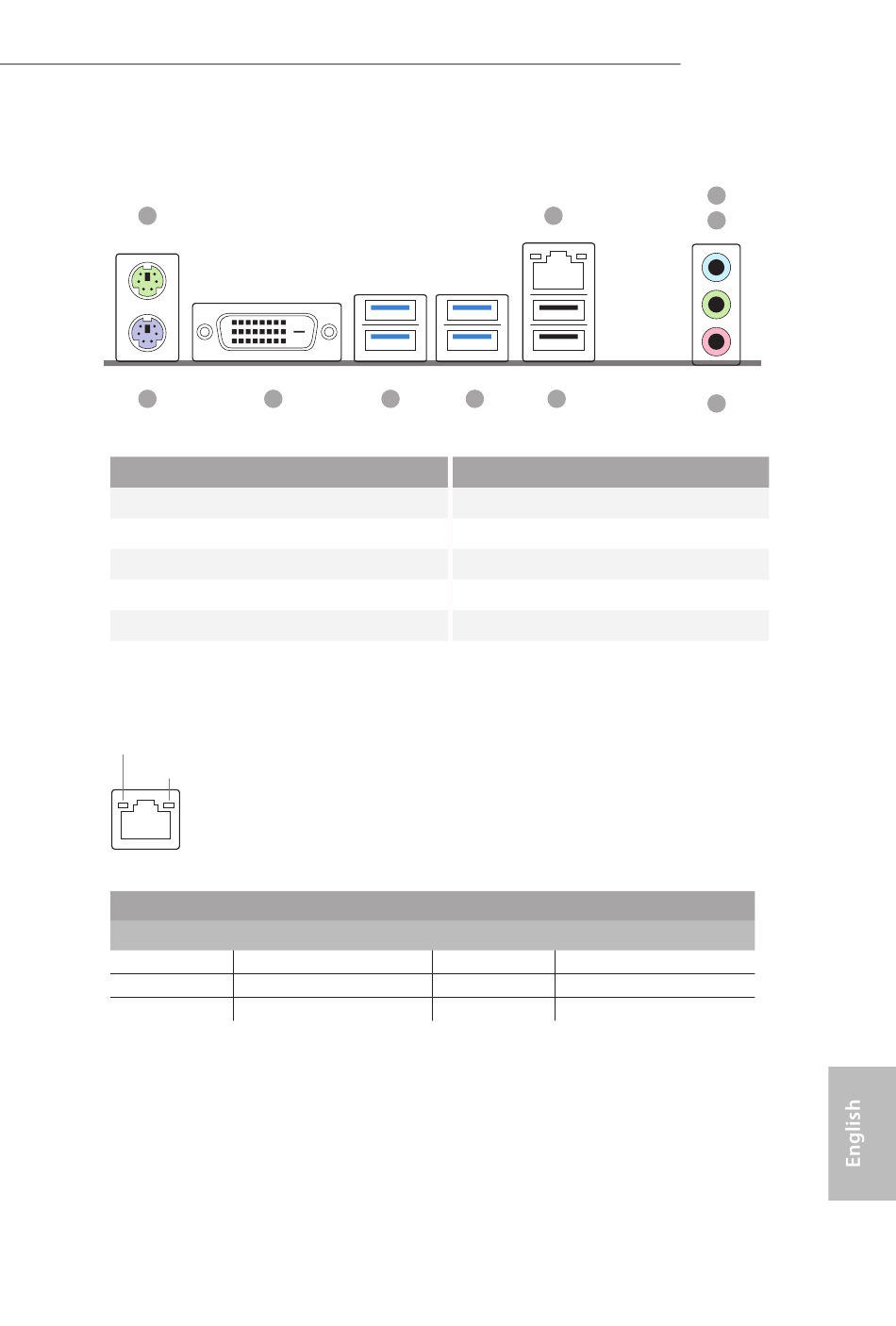

I/O Pa n e l
1
10
9
No. Description
1
PS/2 Mouse Port
2
LAN RJ-45 Port*
3
Line In (Light Blue)**
4
Front Speaker (Lime)**
5
Microphone (Pink)**
* There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED
SPEED LED
LAN Port
Activity / Link LED
Status
Description
Off
No Link
Blinking
Data Activity
On
Link
2
8
7
6
No. Description
6
USB 2.0 Ports (USB_01)
7
USB 3.0 Ports (USB3_23)
8
USB 3.0 Ports (USB3_01)
9
DVI-D Port
10
PS/2 Keyboard Port
Speed LED
Status
Off
Orange
Green
B150A-X1/Hyper
3
4
5
Description
10Mbps connection
100Mbps connection
1Gbps connection
3
