Version 1.1
Published April 2016
Copyright©2016 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identification or explanation and to the owners' benefit, without intent to
infringe.
Disclaimer:
Specifications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or fitness for a particular
purpose.
In no event shall ASRock, its directors, officers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of profits, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
"Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate"
ASRock Website: http://www.asrock.com

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für ASROCK B150M Pro4V

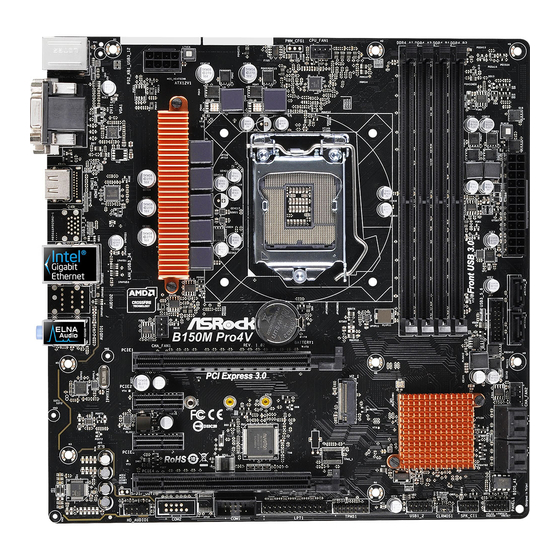

  • Seite 27 B150M Pro4V 1 Einleitung Vielen Dank, dass Sie sich für das B150M Pro4V von ASRock entschieden haben – ein zuverlässiges Motherboard, das konsequent unter der strengen Qualitätskontrolle von ASRock hergestellt wurde. Es liefert ausgezeichnete Leistung mit robustem Design, das ASRock Streben nach Qualität und Beständigkeit erfüllt.
  • Seite 28: Technische Daten

    • Unterstützt DDR4 2133 non-ECC, ungepufferter Speicher • Unterstützt ECC-UDIMM-Speichermodule (Betrieb im Non- ECC-Modus) * Weitere Informationen finden Sie in der Speicherkompatibilitätsliste auf der ASRock-Webseite. (http://www.asrock.com/) • Systemspeicher, max. Kapazität: 64GB • Unterstützt Intel® Extreme Memory Profile (XMP) 2.0 Erweiter- • 2 x PCI-Express 3.0-x16-Steckplatz (PCIE1:x16-Modus;...
  • Seite 29 Audiocodec) *Zur Konfiguration von 7.1-Kanal-HD-Audio müssen Sie ein HD-Frontblenden-Audiomodul nutzen und den Mehrkanalton über den Audiotreiber aktivieren. • Erstklassige Blu-ray-Audiounterstützung • Unterstützt Überspannungsschutz (ASRock Full Spike Protection) • ELNA-Audiokondensatoren • Gigabit LAN 10/100/1000 Mb/s • Giga PHY Intel® I219V • Unterstützt Wake-On-LAN • Unterstützt Blitzschutz/Schutz gegen elektrostatische Entla-...
  • Seite 30 • 1 x 8-poliger 12-V-Netzanschluss • 1 x Audioanschluss an Frontblende • 1 x USB 2.0-Stiftleiste (unterstützt 2 USB 2.0-Ports) (unter- stützt Schutz gegen elektrostatische Entladung (ASRock Full Spike Protection)) • 1 x USB 3.0-Stiftleiste (unterstützt 2 USB 3.0-Ports) (unter- stützt Schutz gegen elektrostatische Entladung (ASRock Full...
  • Seite 31 • ErP/EuP ready (ErP/EuP ready-Netzteil erforderlich) * Detaillierte Produktinformationen finden Sie auf unserer Webseite: http://www.asrock.com Bitte beachten Sie, dass mit einer Übertaktung, zu der die Anpassung von BIOS-Einstel- lungen, die Anwendung der Untied Overclocking Technology oder die Nutzung von Über- taktungswerkzeugen von Drittanbietern zählen, bestimmte Risiken verbunden sind.
  • Seite 32: Jumpereinstellung

    1.3 Jumpereinstellung Die Abbildung zeigt, wie die Jumper eingestellt werden. Wenn die Jumper- Kappe auf den Kontakten angebracht ist, ist der Jumper „kurzgeschlossen“. Wenn keine Jumper-Kappe auf den Kontakten angebracht ist, ist der Jumper „offen“. Die Abbildung zeigt einen 3-poligen Jumper, dessen Kontakt 1 und Kontakt 2 „kurzgeschlossen“...
  • Seite 33: Integrierte Stiftleisten Und Anschlüsse

    B150M Pro4V 1.4 Integrierte Stiftleisten und Anschlüsse Integrierte Stiftleisten und Anschlüsse sind KEINE Jumper. Bringen Sie KEINE Jumper- Kappen an diesen Stiftleisten und Anschlüssen an. Durch Anbringen von Jumper-Kappen an diesen Stiftleisten und Anschlüssen können Sie das Motherboard dauerhaft beschädigen.
  • Seite 34 Gehäuseeingriffs- und Bitte verbinden Sie Gehäu- SPEAKER DUMMY Lautsprecher-Stiftleiste seeingriffsvorrichtung und DUMMY (7-polig, SPK_CI1) den Gehäuselautsprecher (siehe S. 1, Nr. 15) mit dieser Stiftleiste. SIGNAL DUMMY Serial-ATA-III- Diese sechs SATA-III- Anschlüsse Anschlüsse unterstützen (SATA3_0: SATA-Datenkabel für siehe S. 1, Nr. 6) interne Speichergeräte mit (SATA3_1: einer Datenübertragungsge...
  • Seite 35 B150M Pro4V Audiostiftleiste Diese Stiftleiste dient PRESENCE# MIC_RET (Frontblende) dem Anschließen von OUT_RET (9-polig, HD_AUDIO1) Audiogeräten an der (siehe S. 1, Nr. 21) Frontblende. OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L 1. High Definition Audio unterstützt Anschlusserkennung, der Draht am Gehäuse muss dazu jedoch HDA unterstützt.
  • Seite 36 ATX-Netzanschluss Dieses Motherboard (24-polig, ATXPWR1) bietet einen 24-poligen (siehe S. 1, Nr. 5) ATX-Netzanschluss. Bitte schließen Sie es zur Nutzung eines 20-poligen ATX-Netzteils entlang Kontakt 1 und Kontakt 13 ATX-12-V-Netzanschluss Dieses Motherboard bietet (8-polig, ATX12V1) einen 8-poligen ATX- (siehe S. 1, Nr. 1) 12-V-Netzanschluss.
