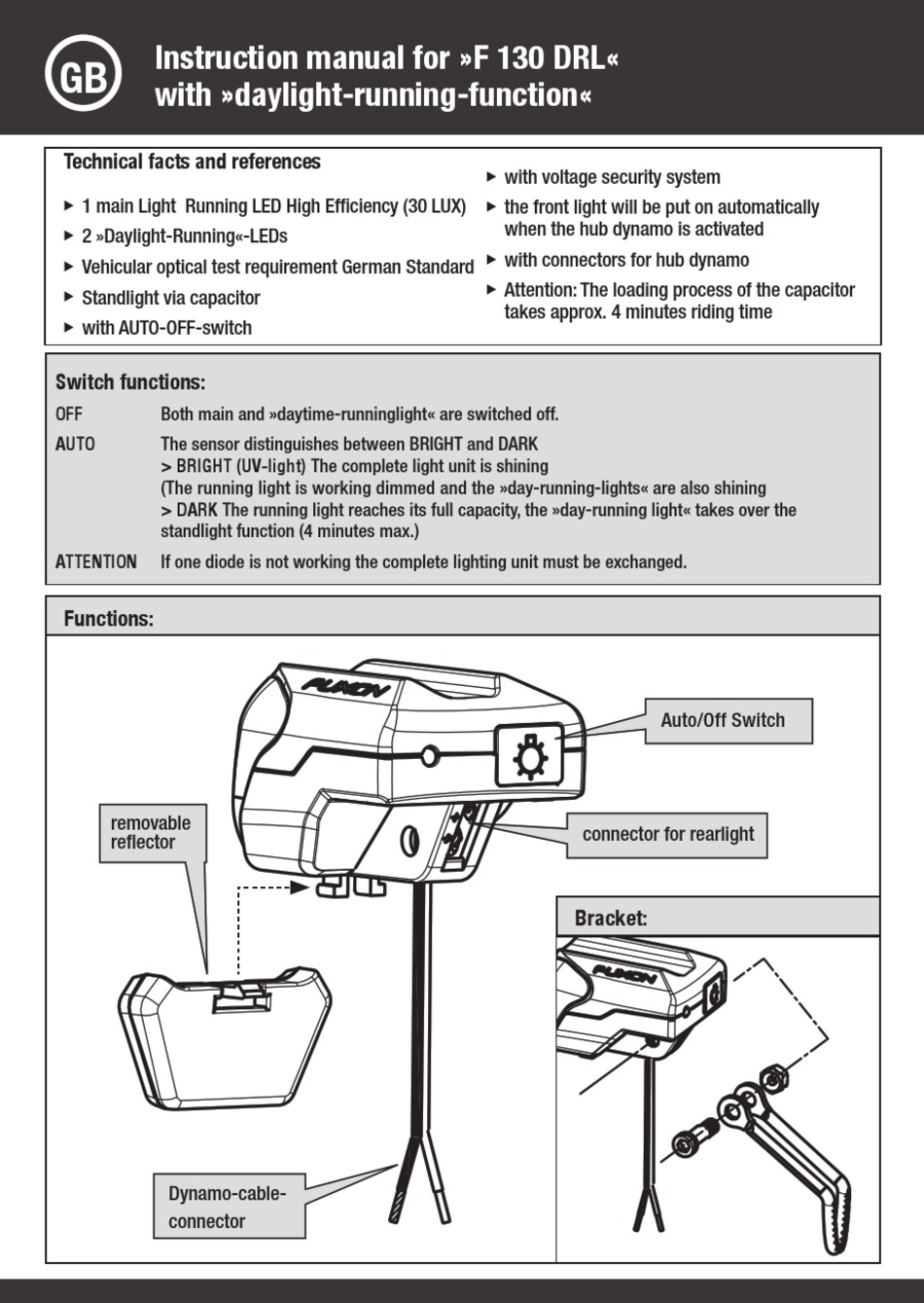

Instruction manual for »F 130 DRL«
GB
with »daylight-running-function«
Technical facts and references
1 main Light Running LED High Efficiency (30 LUX)
u
2 »Daylight-Running«-LEDs
u
Vehicular optical test requirement German Standard
u
Standlight via capacitor
u
with AUTO-OFF-switch
u
Switch functions:
OFF
Both main and
AUTO
The sensor distinguishes between BRIGHT and DARK
> BRIGHT (UV-light) The complete light unit is shining
(The running light is working dimmed and the
> DARK The running light reaches its full capacity, the
standlight function (4 minutes max.)
ATTENTION
If one diode is not working the complete lighting unit must be exchanged.
Functions:
removable
reflector
Dynamo-cable-
connector
»
«
daytime-runninglight
are switched off.
with voltage security system
u
the front light will be put on automatically
u
when the hub dynamo is activated
with connectors for hub dynamo
u
A ttention: The loading process of the capacitor
u
takes approx. 4 minutes riding time
»
«
day-running-lights
are also shining
»
day-running light
connector for rearlight
Bracket:
«
takes over the
Auto/Off Switch
