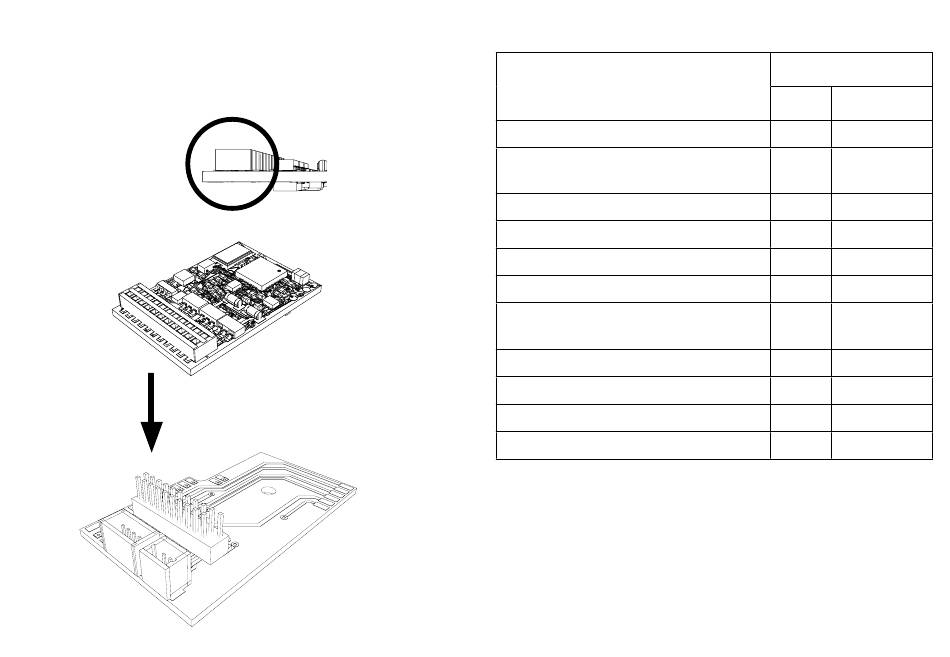

Insert the plug into the connector while paying attention to the
positioning. Place the model, without body, on the programming
track and test it. If the decoder works with no problems, the body
can be put on the locomotive.
!
Cross Referencing the Colors for the Wires
Description
Motor Connection 2
Conductor Current Pickup, Track, Left
(DC) Outer (AC)
Front Lights
Aux 1 (physical output)
Common Wire for Lights /Aux 1 - 4
Rear Lights
Conductor Current Pickup,
Track, Right (DC) Center (AC)
Motor Connection 1
Aux 2 (physical output)
Aux 3 (physical output)
Aux 4 (physical output)
Wire Color
NEM Märklin
gray blue
black brown
white gray
green brown/red
blue orange
yellow yellow
red red
orange green
violet brown/green
brown/yellow
brown/white
