ENGLISH
WPS – PIN Code technology
If your wireless client supports WPS but does not have a (virtual) Push button, you can use the PIN Code
technology to establish a WPS connection.
Note: To activate the WPS PIN Code function, you need a computer with a wired connection to the
C150APM.
C. Login to the web interface as explained in chapter 6.1.
D. First select 'General Setup', then 'Wireless' and finally 'WPS'.

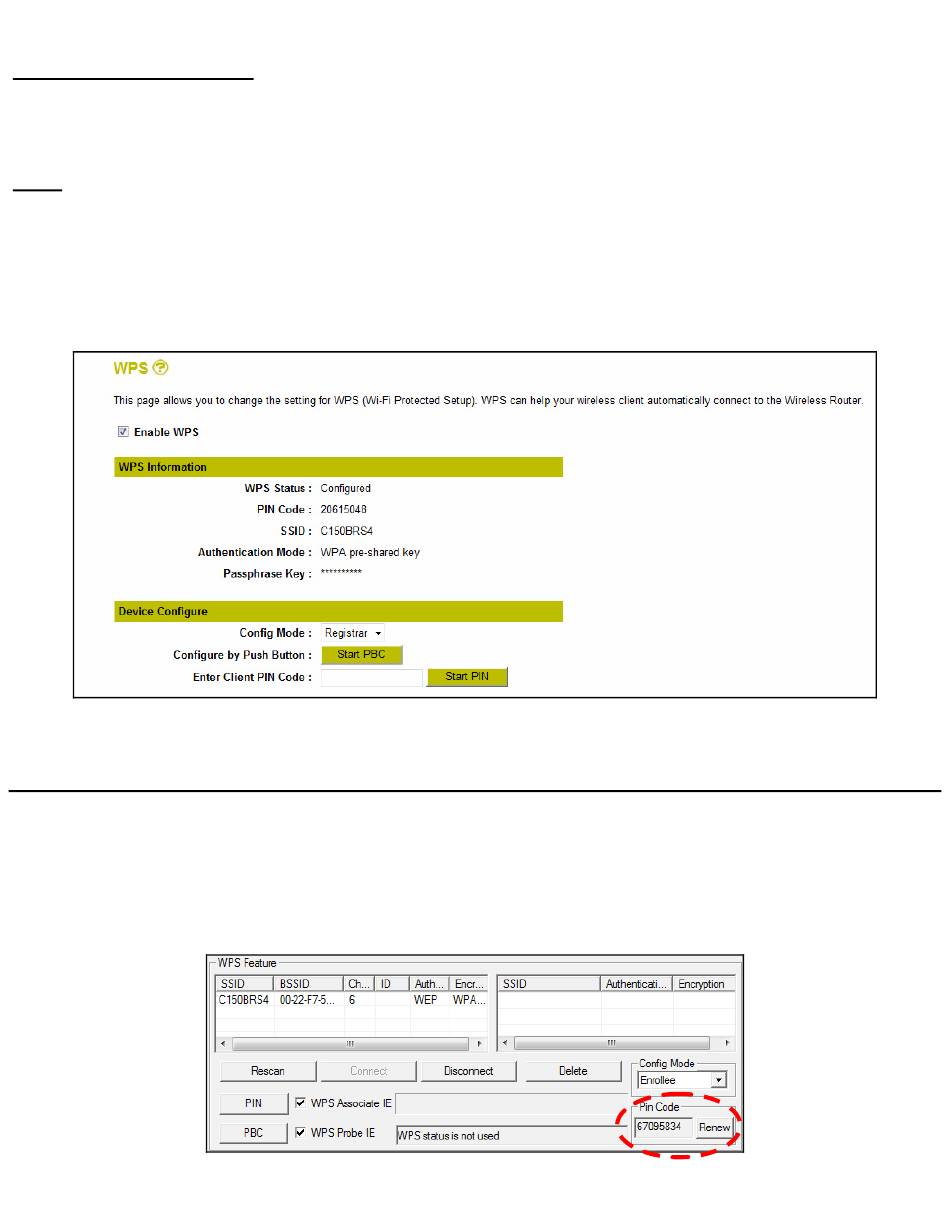

The "WPS" configuration page will be shown.
In the WPS configuration page, you can trigger the virtual 'Push Button' or the 'PIN Code' authentication.
The 'PIN Code' authentication can be initiated in 2 different ways:
1. The wireless client will provide the PIN code, which will be entered in the access point.
In this situation, the wireless client will be the 'Enrollee' and the access point will be the
'Registrar'.
A. Start the wireless client and search for the provided PIN code, like shown in below example:
