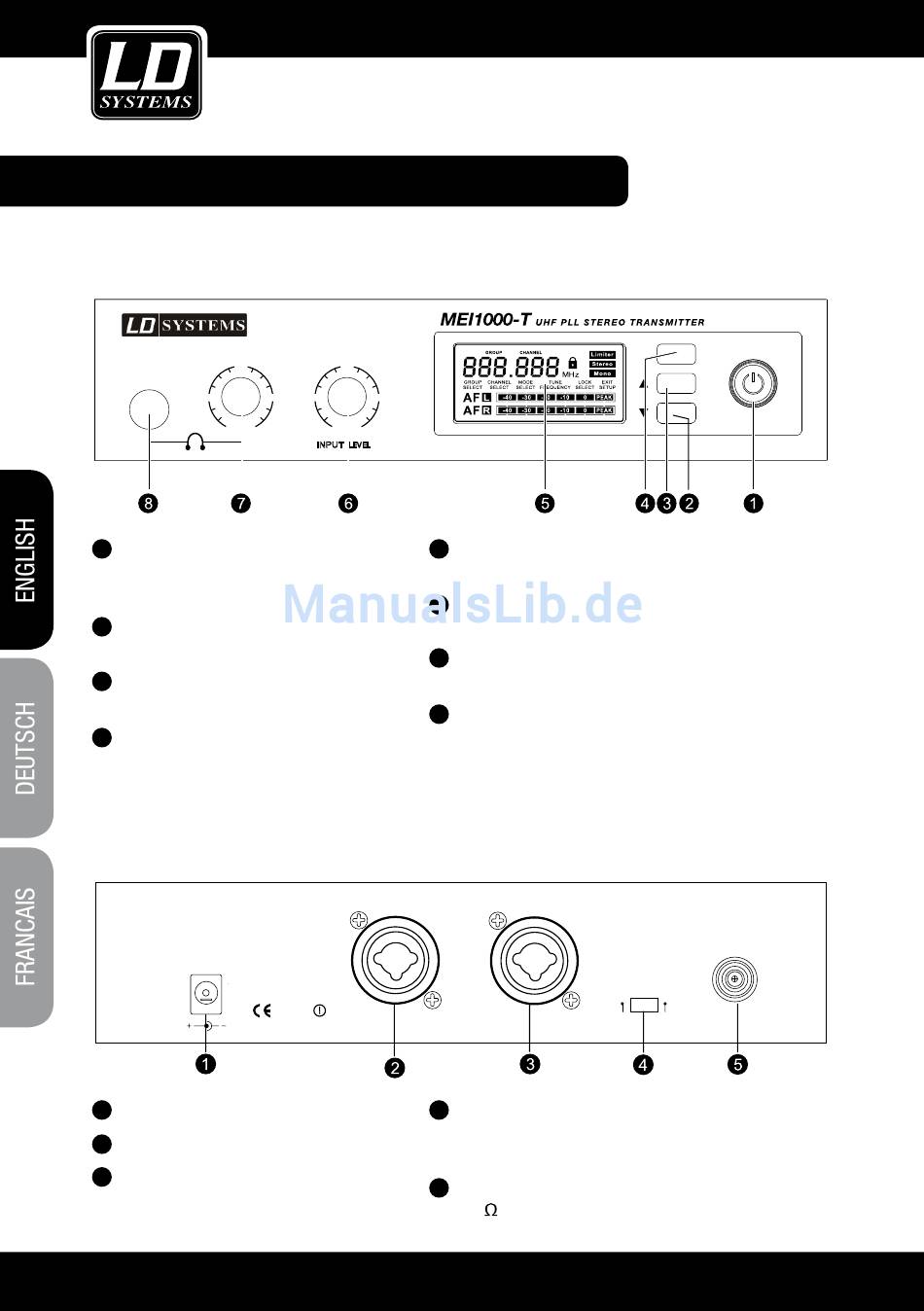

LD MEI1000T TRANSMITTER FEATURES:
PHONES
ON/OFF Switch
1
Press and hold for two seconds to turn ON.
Press and hold to turn OFF.
Transmitter menu down button
2
Please see "SYSTEM SETUP" on page 8.
Transmitter menu up button
3
Please see "SYSTEM SETUP" on page 8.
Transmitter setup button
4
Please see "SYSTEM SETUP" on page 8.
D.C. 12-18V IN
300mA
DC adapter plug
1
Left track XLR input plug
2
Right track XLR input plug
3
06
8 -20
4 12 -30 -10
1 15
-40dB 0dB
INPUT LEVEL
0678
LCD screen
5
Please see "SYSTEM SETUP" on page 8.
Input Level
6
Controls the input level.
7
Phones Output Control
Controls the earphone volume.
Earphones jack plug
8
BALANCED
INPUTS
XLR
1 = SHIELD
2 = +
3 = -
TRS
T = +
R = -
S = SHIELD
RIGHT
LEFT
PAD switch
4
Use to attennuate the input gain by 12dB.
To leave gain unaffected set the switch to 0dB.
Antenna plug
5
50

FRONT PANEL:

SET
POWER

REAR PANEL:

PAD
ANTENNA
0 dB
-12 dB
