BMC Timemachine ROAD Montageanleitung Seite 15

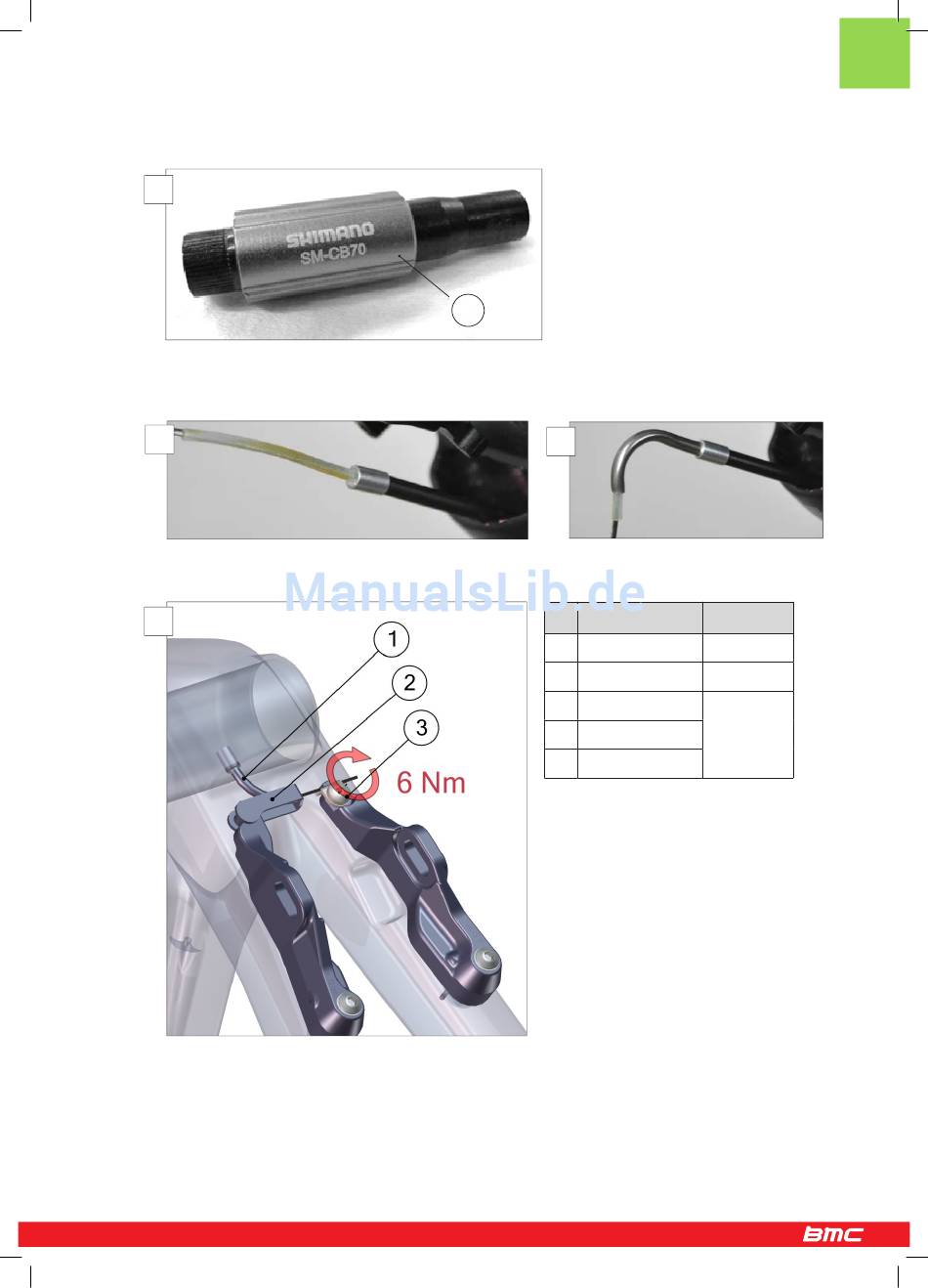

8. Cut the brake cable housing 100mm from the cable guide and install the cable adjusters (N°8).
Please refer to the official Shimano installation instructions.
5
9. Run the rear brake cable through the brake lever and the housing.
10. Slide the liner of the pipe over the brake cable (7). Then slide the pipe (N°1) over the brake cable and the liner (8).
7
11. Install the pipe holder (N°2) and clamp the brake cable on the left brake arm with the T25 anchor bolt (N°3). Tighten to 6 Nm.
9
12. Install the brake pads:
8
8
Description
Rear brake set
1 Pipe
2 Pipe holder
3 Anchor bolt
8 Shimano adjusters
13 / 14
Part N°
212496
212499
