aizo ag
www.aizo.com

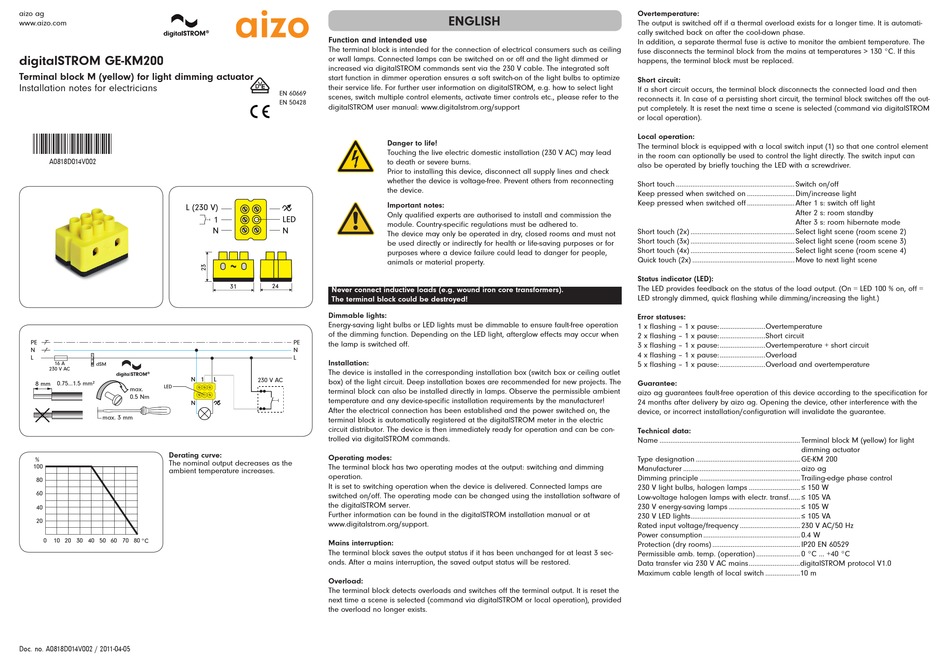

digitalSTROM GE-KM200
Terminal block M (yellow) for light dimming actuator
Installation notes for electricians
A0818D014V002
A0818D014V002
L (230 V)
PE
N
L
dSM
16 A
dSM
230 V AC
N
8 mm
0.75...1.5 mm²
LED
max.
0.5 Nm
N
max. 3 mm
Derating curve:
%
The nominal output decreases as the
100
ambient temperature increases.
80
60
40
20
0
10
20 30 40 50 60 70 80
°C
Doc. no. A0818D014V002 / 2011-04-05
Function and intended use
The terminal block is intended for the connection of electrical consumers such as ceiling
or wall lamps. Connected lamps can be switched on or off and the light dimmed or
increased via digitalSTROM commands sent via the 230 V cable. The integrated soft
start function in dimmer operation ensures a soft switch-on of the light bulbs to optimize
V
D E
their service life. For further user information on digitalSTROM, e.g. how to select light
EN 60669
scenes, switch multiple control elements, activate timer controls etc., please refer to the
EN 50428
digitalSTROM user manual: www.digitalstrom.org/support
1
LED
N
N
31
24
Never connect inductive loads (e.g. wound iron core transformers).
The terminal block could be destroyed!
Dimmable lights:
Energy-saving light bulbs or LED lights must be dimmable to ensure fault-free operation
of the dimming function. Depending on the LED light, afterglow effects may occur when
PE
the lamp is switched off.
N
L
Installation:
The device is installed in the corresponding installation box (switch box or ceiling outlet
1
L
230 V AC
box) of the light circuit. Deep installation boxes are recommended for new projects. The
terminal block can also be installed directly in lamps. Observe the permissible ambient
temperature and any device-specific installation requirements by the manufacturer!
After the electrical connection has been established and the power switched on, the
terminal block is automatically registered at the digitalSTROM meter in the electric
circuit distributor. The device is then immediately ready for operation and can be con-
trolled via digitalSTROM commands.
Operating modes:
The terminal block has two operating modes at the output: switching and dimming
operation.
It is set to switching operation when the device is delivered. Connected lamps are
switched on/off. The operating mode can be changed using the installation software of
the digitalSTROM server.
Further information can be found in the digitalSTROM installation manual or at
www.digitalstrom.org/support.
Mains interruption:
The terminal block saves the output status if it has been unchanged for at least 3 sec-
onds. After a mains interruption, the saved output status will be restored.
Overload:
The terminal block detects overloads and switches off the terminal output. It is reset the
next time a scene is selected (command via digitalSTROM or local operation), provided
the overload no longer exists.
ENGLISH
Danger to life!
Touching the live electric domestic installation (230 V AC) may lead
to death or severe burns.
Prior to installing this device, disconnect all supply lines and check
whether the device is voltage-free. Prevent others from reconnecting
the device.
Important notes:
Only qualified experts are authorised to install and commission the
module. Country-specific regulations must be adhered to.
The device may only be operated in dry, closed rooms and must not
be used directly or indirectly for health or life-saving purposes or for
purposes where a device failure could lead to danger for people,
animals or material property.
Overtemperature:
The output is switched off if a thermal overload exists for a longer time. It is automati-
cally switched back on after the cool-down phase.
In addition, a separate thermal fuse is active to monitor the ambient temperature. The
fuse disconnects the terminal block from the mains at temperatures > 130 °C. If this
happens, the terminal block must be replaced.
Short circuit:
If a short circuit occurs, the terminal block disconnects the connected load and then
reconnects it. In case of a persisting short circuit, the terminal block switches off the out-
put completely. It is reset the next time a scene is selected (command via digitalSTROM
or local operation).
Local operation:
The terminal block is equipped with a local switch input (1) so that one control element
in the room can optionally be used to control the light directly. The switch input can
also be operated by briefly touching the LED with a screwdriver.
Short touch ................................................................. Switch on/off
Keep pressed when switched on .......................... Dim/increase light
Keep pressed when switched off .......................... After 1 s: switch off light
After 2 s: room standby
After 3 s: room hibernate mode
Short touch (2x) ......................................................... Select light scene (room scene 2)
Short touch (3x) ......................................................... Select light scene (room scene 3)
Short touch (4x) ......................................................... Select light scene (room scene 4)
Quick touch (2x) ........................................................ Move to next light scene
Status indicator (LED):
The LED provides feedback on the status of the load output. (On = LED 100 % on, off =
LED strongly dimmed, quick flashing while dimming/increasing the light.)
Error statuses:
1 x flashing – 1 x pause: .........................Overtemperature
2 x flashing – 1 x pause: .........................Short circuit
3 x flashing – 1 x pause: .........................Overtemperature + short circuit
4 x flashing – 1 x pause: .........................Overload
5 x flashing – 1 x pause: .........................Overload and overtemperature
Guarantee:
aizo ag guarantees fault-free operation of this device according to the specification for
24 months after delivery by aizo ag. Opening the device, other interference with the
device, or incorrect installation/configuration will invalidate the guarantee.
Technical data:
Name ............................................................................. Terminal block M (yellow) for light
dimming actuator
Type designation ......................................................... GE-KM 200
Manufacturer ................................................................ aizo ag
Dimming principle ....................................................... Trailing-edge phase control
230 V light bulbs, halogen lamps ............................ ≤ 150 W
Low-voltage halogen lamps with electr. transf. ..... ≤ 105 VA
230 V energy-saving lamps ....................................... ≤ 105 W
230 V LED lights ............................................................ ≤ 105 VA
Rated input voltage/frequency ................................. 230 V AC/50 Hz
Power consumption ..................................................... 0.4 W
Protection (dry rooms) ................................................ IP20 EN 60529
Permissible amb. temp. (operation) ........................ 0 °C ... +40 °C
Data transfer via 230 V AC mains ............................digitalSTROM protocol V1.0
Maximum cable length of local switch ...................10 m
