Assembled laser engraving machine

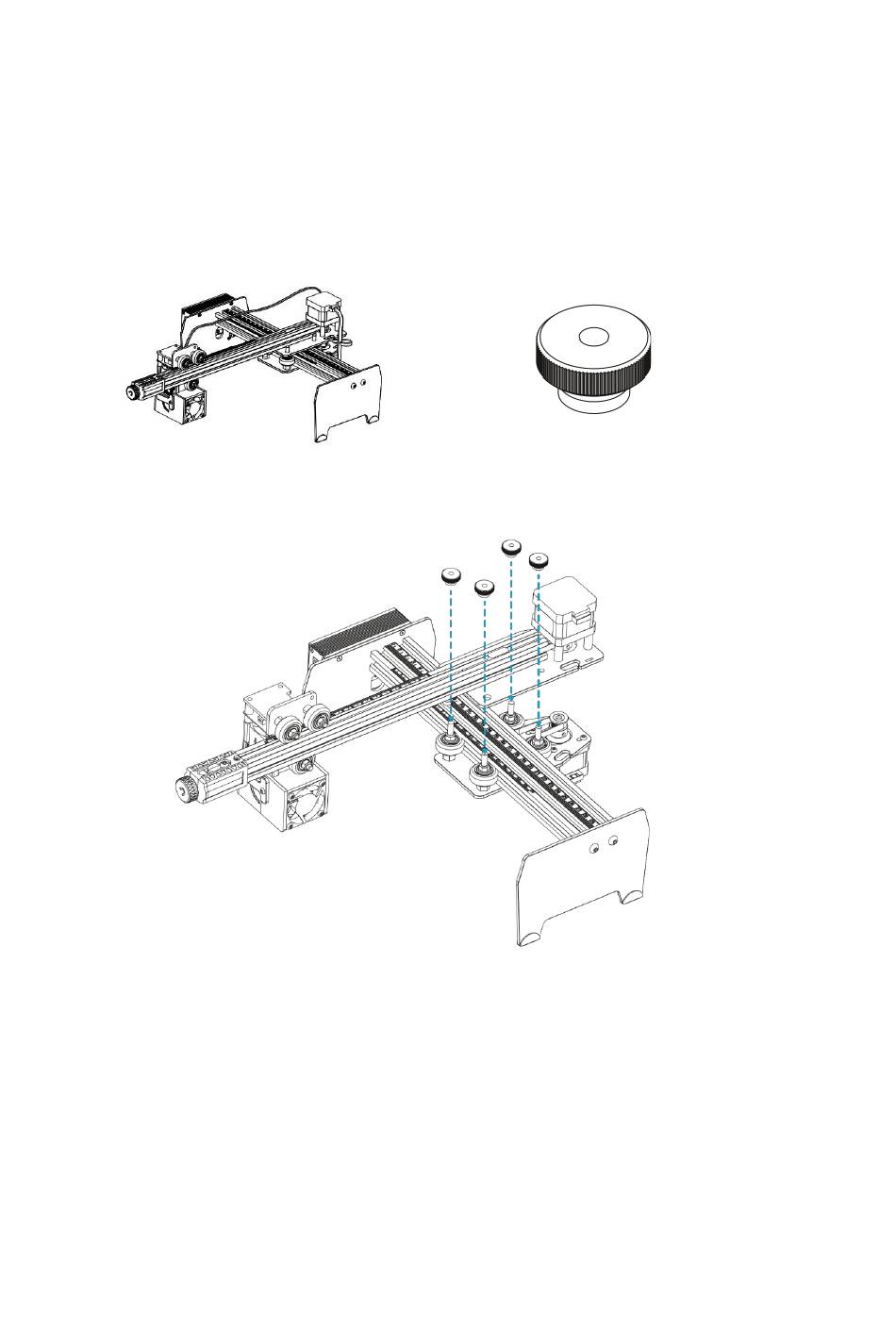

1. Assemble the X-axis assembly and the Y-axis assembly. Take out the X-axis assembly
and the Y-axis assembly from packaging box. Horizontally place the X-axis assembly
above the Y-axis assembly, and align the tapped holes to the projected screws
underneath. Then lower it horizontally onto the Y-axis assembly. Finally, put on 4
knurled nuts with collar and tighten them clockwise.
X-axis assembly, Y-axis
assembly x1
Knurled nut
with collar x4
6
