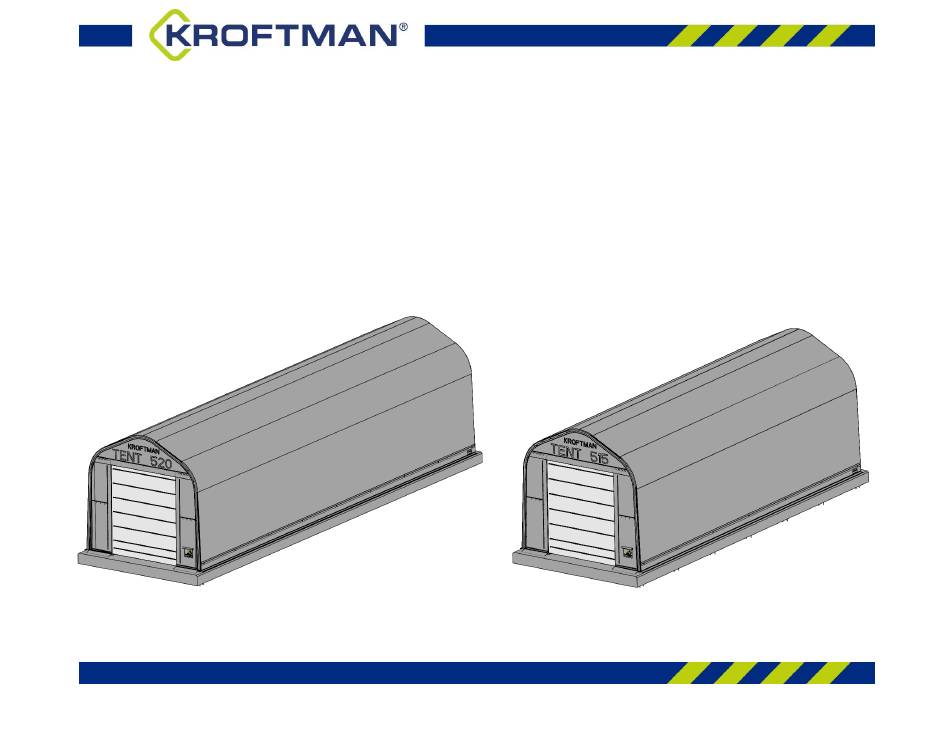

- Seite 1 Opslagtent/Lagerzelt/Storage tent/Abri de stockage Kroftman T520 & T515 Assembly manual Montageanleitung Manuel de montage 5.5 x 20 m 5.5 x 15 m...
- Seite 2 READ ALL THE INSTRUCTIONS BEFORE ASSEMBLY！ 1. The proper erection and installation of this building requires a high level of care and safety. We recommend the safety regulations be complied with during the installation. It includes but is not limited to: - Safety hats, protective eyewear and protective clothing - Safety harnesses for all elevated workers - Proper ladder, cage, and safety operation...
- Seite 3 LESEN SIE VOR DER MONTAGE DIE GESAMTE ANLEITUNG! 1. Die ordnungsgemäße Errichtung und Installation dieses Gebäudes erfordert ein hohes Maß an Sorgfalt und Sicherheit. Wir empfehlen, bei der Montage die Sicherheitsvorschriften einzuhalten. Dazu gehören unter anderem: - Sicherheitshüte, Schutzbrillen und Schutzkleidung - Sicherheitsgurte für alle Arbeiter in der Höhe - Ordnungsgemäße Bedienung von Leitern, Fahrkörben und Sicherheitseinrichtungen 2.
- Seite 4 LISEZ TOUTES LES INSTRUCTIONS AVANT L'ASSEMBLAGE ! 1. Le montage et l'installation corrects de ce bâtiment exigent un haut niveau de soin et de sécurité. Nous recommandons le respect des règles de sécurité lors de l'installation. Cela inclut, mais n'est pas limité à : - Casques de sécurité, lunettes de protection et vêtements de protection.
-
Seite 5: Assembly Procedure
ASSEMBLY PROCEDURE 1. Prepare location and place all unit boxes near location sight. Perform an inventory check before beginning, to be certain all components are available for installation. 2. Assemble every group of arch including base plates and lay them on the ground. 3. - Seite 6 Parts List for Storage tent T515 Part Code Description Quantity Curved roof tube Curved side roof tube Curved side roof tube in front panel Curved side roof tube in back panel Sidewall Tubes Sidewall Tubes at right of front panel Sidewall Tube at left of front panel Sidewall Tubes at back panel Horizontal wall and roof purlin...
- Seite 7 Tube clip for wind brace support Roof cover Lower roof cover tensioning tube 2 sets Tie down ratchet for tensioning roof cover Nylon bands for tensioning roof cover Back cover Two-sided cover beside door Top flaps for above door Tensioning tube(in the bottom) for back cover Tensioning tube(in the bottom) for front cover M10x75 bolt for door track connection M10x60 bolt for front panel connection...
- Seite 8 Parts List for Storage tent T520 Part Code Description Quantity Curved roof tube Curved side roof tube Curved side roof tube in front panel Curved side roof tube in back panel Sidewall Tube of middle panels Sidewall Tube of front panel...
- Seite 9 Tube clip for wind brace support Roof cover Lower roof cover tensioning tube 2 sets Tie down ratchet for tensioning roof cover Nylon bands for tensioning roof cover Back cover Two-sided cover beside door Top flaps for above door Tensioning tube(in the bottom) for back cover Tensioning tube(in the bottom) for front cover M10x75 bolt for door track connection M10x60 bolt for front panel connection...
